Iron Ore Processing Plant: Key Processes and Technologies
Iron ore processing plants play a critical role in transforming raw iron ore into usable material for steel production. These facilities employ a series of well-established processes to extract, refine, and prepare iron ore for industrial use. Below is an overview of the primary stages involved in iron ore processing.
1. Crushing and Screening

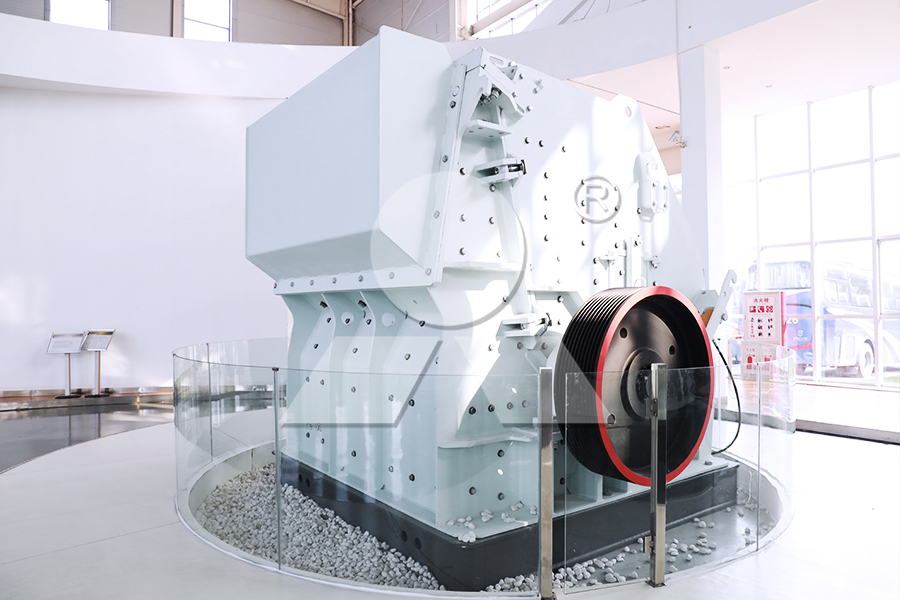

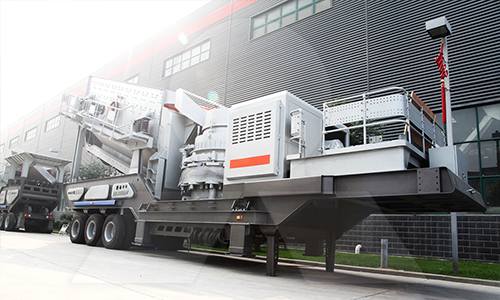

The first step in processing iron ore is crushing the extracted raw material into smaller pieces. Large chunks of ore are fed into primary crushers, which reduce them to manageable sizes (typically 6–10 inches). Secondary and tertiary crushers further break down the material to particles as small as 0.5 inches. Screening then separates the crushed ore into different size fractions, ensuring uniformity before beneficiation.
2. Beneficiation (Ore Washing and Concentration)
Not all mined iron ore is of high enough quality for direct use in blast furnaces. Low-grade ores require beneficiation to increase their iron content. Common methods include: .jpg)
- Gravity Separation: Uses density differences to separate iron minerals from gangue (waste rock).
- Magnetic Separation: High-intensity magnets extract magnetite (Fe₃O₄) from non-magnetic impurities.
- Flotation: Chemicals are used to make iron particles hydrophobic, allowing them to be separated via froth flotation.
These processes can raise the iron content from 30–40% in raw ore to over 60–65% in concentrated form.
3. Pelletizing and Sintering
To improve efficiency in blast furnaces, processed iron ore is often agglomerated into pellets or sinter:
- Pelletizing: Fine iron concentrate is mixed with binders (e.g., bentonite) and rolled into small balls (9–16 mm), then hardened by firing at high temperatures (~1,300°C).
- Sintering: Coarser fines are combined with fluxes (limestone or dolomite) and heated to form a porous mass that improves furnace permeability.
Both methods reduce dust loss and enhance metallurgical performance during smelting.
4. Blast Furnace or Direct Reduction
The final stage involves converting processed iron ore into metallic iron: .jpg)
- Blast Furnace Route: The traditional method where sinter/pellets are reduced using coke, producing pig iron (~92–94% Fe).
- Direct Reduction (DRI): An alternative for electric arc furnaces, where natural gas or coal reduces pellets/lumps into sponge iron without melting (used in regions with limited coking coal).
Environmental Considerations
Modern processing plants incorporate sustainability measures such as water recycling, dry tailings disposal, and emissions control systems to minimize environmental impact. Advances like hydrogen-based reduction are also being explored for greener steelmaking.
Conclusion
Iron ore processing plants are essential for producing high-quality feedstock for steel production. Through crushing, beneficiation, agglomeration, and reduction, these facilities maximize resource efficiency while meeting industry demands for purity and consistency. Continuous innovation ensures both economic viability and environmental responsibility in this critical sector.
