How to Make Silica Sand 325 Mesh

Silica sand with a 325 mesh size (approximately 45 microns) is widely used in industries such as glass manufacturing, ceramics, foundry casting, and chemical production. Producing silica sand of this fineness requires specific processing steps to ensure consistent particle size and purity. Below is a detailed, industry-standard method for making 325-mesh silica sand.

1. Source High-Purity Silica Sand

The process begins with raw silica sand, typically mined from quartz-rich deposits. The sand should have a SiO₂ content of at least 95% to meet industrial standards. Impurities like clay, iron oxides, and organic materials must be minimized to ensure high-quality output.

2. Washing and Classification

Raw silica sand often contains unwanted particles. To remove these:

• Wash the sand using water in a scrubbing tank or log washer to eliminate clay and dust.
• Screen the material through coarse sieves (e.g., 20–40 mesh) to remove oversized debris.
• Use hydrocyclones or settling ponds to separate finer particles from heavier minerals like iron oxides.

3. Drying the Sand

After washing, the sand must be dried to reduce moisture content (typically below 0.5%). Industrial rotary dryers or fluidized bed dryers are commonly used for this step.

4. Crushing and Grinding

To achieve a 325-mesh particle size:

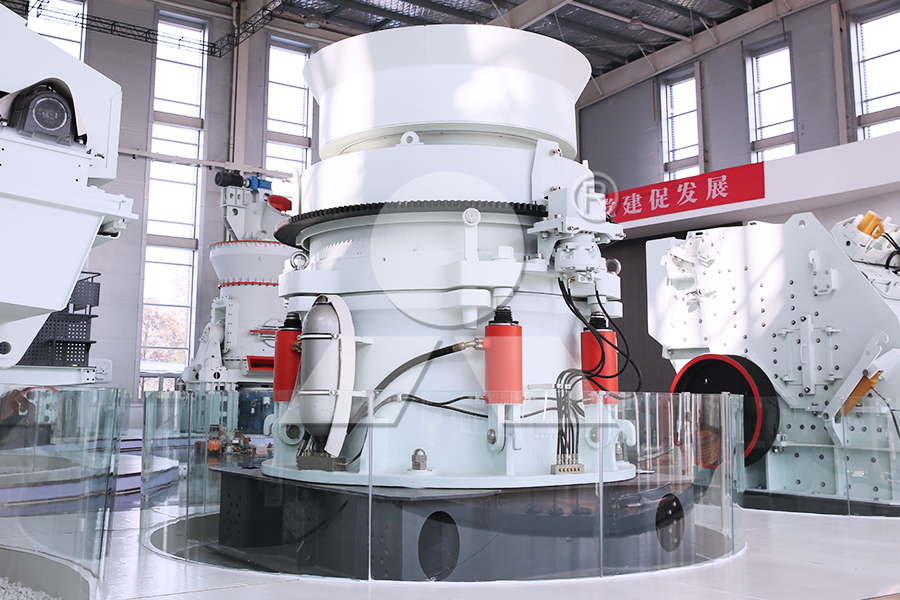

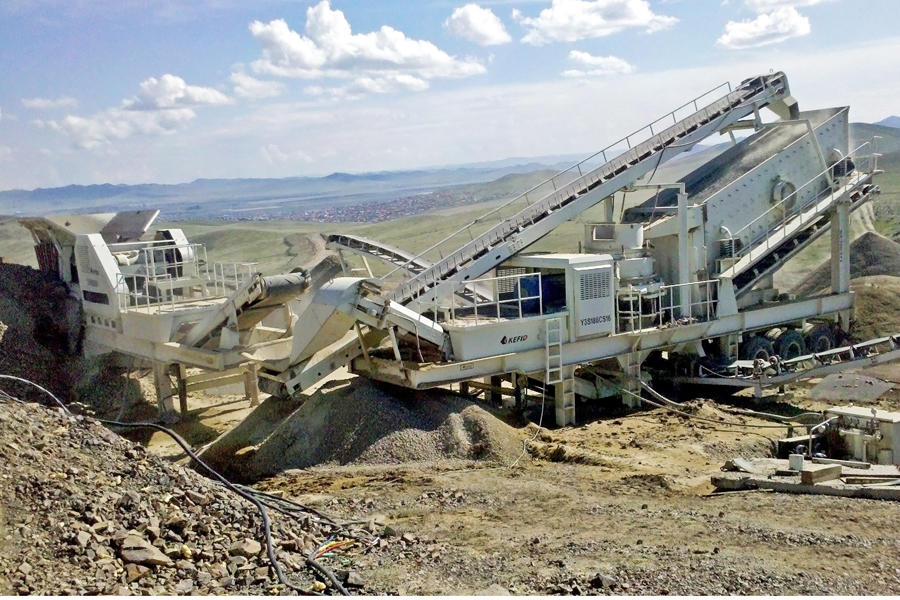

• Primary crushing: Use jaw crushers or cone crushers to break down large quartz rocks into smaller granules (~1–5 mm).
• Secondary grinding: Feed the crushed material into a ball mill, Raymond mill, or vertical roller mill along with grinding media (e.g., alumina balls). The grinding process reduces particle size further.
• Air classification: After milling, an air classifier separates particles by size—finer particles (325 mesh) are collected while coarser ones are recycled for further grinding.

5. Sieving and Quality Control

The final product must meet strict particle size specifications:

• Pass the ground silica through a 325-mesh sieve (45 microns) to confirm fineness.
• Test for chemical purity (XRF analysis) and particle size distribution (laser diffraction).

6. Packaging and Storage

Once verified, the silica sand is packed in moisture-proof bags or bulk containers for shipment. Proper storage prevents contamination and maintains quality before industrial use.

Safety Considerations

• Workers should wear respirators due to airborne silica dust exposure risks (OSHA/NIOSH regulations apply).
• Dust collection systems (baghouses or cyclones) must be installed in processing plants to minimize hazards.

By following these steps—washing, drying, grinding, and classifying—producers can efficiently manufacture high-purity 325-mesh silica sand suitable for industrial applications.
