Crushed limestone is produced in a wide spectrum of size grades, each engineered to meet specific engineering, construction, and landscaping requirements; the most common classifications range from fine powders (under 0.075 mm) to coarse aggregates (up to 38 mm), and the selection of a particular size is dictated by standards such as ASTM C33, local building codes, and the functional demands of the project.
1. Standard Size Classifications
In the United States, the primary reference for aggregate sizing is ASTM C33 – Standard Specification for Concrete Aggregates. The specification defines “coarse” and “fine” aggregates by nominal maximum size, not by exact dimensions. For crushed limestone, the typical nominal sizes are:
| Nominal Size (inches) | Approx. Max Dimension (mm) | Typical Use |
|---|---|---|
| ¾” (No. 4) | 19.0 | Road base, sub‑base, concrete |
| ½” (No. 8) | 12.5 | Asphalt pavement, concrete |
| 3/8” (No. 10) | 9.5 | Paving, drainage layers |
| ¼” (No. 20) | 6.3 | Landscaping, concrete finish |
| 3/16” (No. 30) | 4.8 | Paver bedding, backfill |
| 1/8” (No. 40) | 3.2 | Surface dressing, soil amendment |
| 1/16” (No. 70) | 1.6 | Fine fill, concrete mix |
| 1/32” (No. 100) | 0.8 | Mortar, plaster, concrete filler |
| 1/64” (No. 200) | 0.4 | Lime putty, agricultural lime |
The “No.” designation (e.g., No. 4, No. 8) originates from the U.S. sieve series, where a lower number indicates a larger opening. Internationally, the British Standard BS 812:1990 and the European EN 12620 use similar mesh designations, but the metric mesh size is more common (e.g., 4 mm, 8 mm, 12 mm).
2. Production Process and Size Control

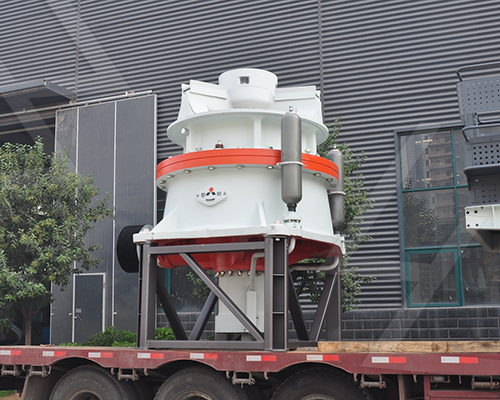

Crushed limestone begins as quarried blocks that are fed into a series of jaw, cone, and impact crushers. The final size distribution is achieved through a combination of primary crushing (to reduce the rock to 2–4 inches), secondary crushing (to ½–¾ inches), and tertiary or fine crushing (to sub‑inch particles). After crushing, the material passes through vibrating screens that separate it into the desired size fractions.
The screening efficiency is usually expressed as “percent passing” a given sieve. For a high‑quality No. 4 aggregate, the typical gradation is:
- 100 % passing ¾” sieve
- 80–90 % passing ½” sieve
- 20–30 % passing ¼” sieve
These percentages ensure that the aggregate has a well‑graded particle‑size distribution, which improves compaction and load‑bearing capacity.
3. Functional Implications of Size
a. Structural Fill and Road Base
Coarse grades (¾”–½”) provide the bulk and interlock needed for sub‑base layers beneath highways and airport runways. Their angular shape, a product of the crushing process, creates a stable skeleton that distributes loads and resists settlement. The California Department of Transportation (Caltrans) specifies a minimum of 95 % passing the ¾” sieve for base courses, with a maximum aggregate size of ¾”.
b. Concrete Production
For concrete, the ideal aggregate size is roughly one‑third of the maximum nominal size of the structural element. A 12‑inch slab, for example, works best with a maximum aggregate size of 4 inches, but most residential concrete mixes use ¾” or ½” limestone because they provide a good balance of workability and strength. The fine limestone fractions (¼”–1/16”) fill voids between the coarse particles, reducing cement demand and improving finish quality.
c. Asphalt Pavement
In hot‑mix asphalt, limestone grades of ½” and 3/8” are common. The angular particles enhance aggregate interlock, which contributes to rut resistance. The American Association of State Highway and Transportation Officials (AASHTO) M 320 standard recommends a nominal maximum size of ½” for surface courses on most highways.
d. Landscaping and Drainage
Fine grades (¼”–1/16”) are favored for decorative rock, paver bedding, and French‑drain backfill. Their small size allows water to percolate while still providing a stable substrate. The U.S. Department of Agriculture (USDA) notes that limestone screened to ¼” or finer improves soil pH without causing compaction in garden beds.
4. Selecting the Right Size
Choosing the appropriate crushed limestone size involves three key considerations:
- Load Requirements – Heavier loads demand coarser, well‑graded aggregates that can develop a strong load‑transfer skeleton.
- Compaction Method – Mechanical compaction (e.g., vibratory rollers) works best with a mix of coarse and fine particles; overly fine material may become “fluffy” and resist densification.
- Finish and Aesthetics – Projects that require a smooth surface (e.g., patio pavers) benefit from finer grades, while exposed aggregate driveways often use a blend of ¾” and ½” to achieve a textured look.
In practice, engineers often specify a “blended” aggregate, such as a ¾” base mixed with ¼” filler, to meet both structural and finishing criteria. .jpg)
5. Environmental and Economic Aspects
Crushed limestone is a natural, abundant resource, and its production has a relatively low carbon footprint compared with manufactured sand or synthetic aggregates. According to the U.S. Geological Survey (USGS) 2022 mineral commodities summary, the United States produced over 140 million metric tons of limestone, with roughly 30 % destined for aggregate applications.
Recycling crushed limestone from demolition or quarry tailings can further reduce environmental impact. The Federal Highway Administration (FHWA) reports that reclaimed limestone aggregates meet the same ASTM C33 requirements when properly processed, offering cost savings of 10–15 % over virgin material.
6. Quality Assurance
Quality control for crushed limestone focuses on three parameters:
- Gradation – Verified by sieve analysis in accordance with ASTM C136.
- Durability – Measured by the Los Angeles (LA) abrasion test (ASTM C131); a typical LA value for high‑quality limestone is ≤ 30 % loss.
- Chemical Purity – Calcium carbonate content should exceed 95 % for most construction uses; excessive silica or iron can affect concrete color and durability.
Regular testing ensures that each size fraction meets the performance expectations of the intended application. .jpg)
7. Summary
Crushed limestone is available in a continuum of sizes, from fine powders suitable for soil amendment to coarse stones that form the backbone of road bases and structural fills. Industry standards such as ASTM C33 define the nominal maximum sizes and gradation tolerances, while the crushing and screening processes guarantee that each grade delivers the required shape, strength, and particle‑size distribution. By aligning the selected size with load demands, compaction techniques, and aesthetic goals, engineers and contractors can optimize both performance and cost. Moreover, the material’s natural abundance, recyclability, and proven durability make it a sustainable choice for a broad range of civil‑engineering and landscaping projects.
