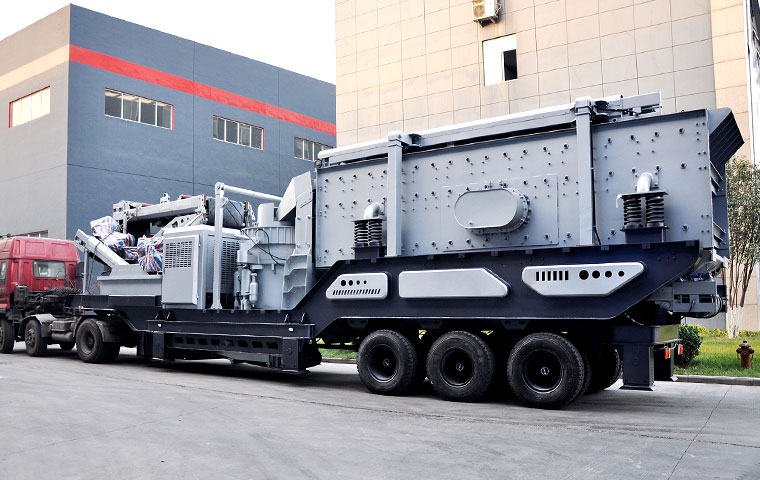

coal screening machine for sale

In the demanding world of coal processing, operational efficiency and product purity are paramount. A high-performance coal screening machine is the critical linchpin in this process, separating raw material into precise, marketable grades while removing impurities and fines. Investing in the right equipment directly impacts throughput, product quality, and your bottom line. Whether you are upgrading an existing operation or commissioning a new site, selecting a robust and reliable screening solution is a decisive step. This guide explores the key considerations for purchasing a coal screening machine, from vibratory screen types and deck configurations to capacity requirements and durability features. Discover how the right machine can optimize your workflow, reduce downtime, and enhance the overall profitability of your coal handling operation.

Maximize Coal Output and Purity with Advanced Screening Technology

Advanced screening technology is the critical control point for separating raw ROM coal into precise size fractions while removing impurities, directly determining yield, product purity, and downstream processing efficiency. Modern machines are engineered not as simple sieves, but as sophisticated material handling systems governed by material science and precise kinematics.

Core Engineering: Materials and Kinematics
The operational integrity of a screening machine under abrasive, high-impact loads is defined by its material composition and motion profile.

• Screen Deck & Wear Components: High-stress components are fabricated from abrasion-resistant (AR) steel, with premium models utilizing Hadfield’s Manganese Steel (Mn14, Mn18) for its unique work-hardening property. Upon impact, the surface hardness increases, dramatically extending service life in heavy-duty ROM coal applications. Critical wear liners and deck frames may employ high-chromium alloys or ceramic composites for specific, high-abrasion zones.
• Vibration Mechanism & Bearings: The heart of the system is a high-torque, balanced vibrator assembly. Spherical roller bearings with reinforced cages and specialized grease channels are standard for sustaining eccentric loads and continuous operation. Drive systems are engineered to deliver a specific motion—linear, circular, or elliptical—optimized for either high-volume stratification or precise sizing.
• Deck Media: Beyond traditional wire mesh, polyurethane and rubber modular panels offer superior wear life and anti-blinding properties. PU panels with tailored aperture geometry and tensioning systems provide high open area and resistance to abrasion from high-ash content material.

Technical Specifications & Mining-Specific USP
Performance is quantified against industry benchmarks, ensuring compatibility with mine planning and material characteristics.

Functional Advantages of Advanced Systems

• High-Efficiency Separation: Precise vibration control and deck design maximize the probability of undersize particles passing through the apertures, directly increasing yield of in-spec product.
• Moisture & Fines Management: Optimized G-force and screen media selection (e.g., heated decks, ball-tray systems) mitigate blinding and sticking in high-surface-moisture or clay-rich coals.
• Adaptability to Ore Hardness: Robust construction and selectable motion profiles allow the same unit to process soft lignite, bituminous, and harder anthracite coals by adjusting amplitude and feed rate.
• Reduced Downstream Wear: Effective removal of abrasive contaminants (shale, pyrite) and precise sizing protect crushers, conveyors, and washing plants from premature wear.
• Structural Integrity: Finite Element Analysis (FEA)-designed side plates and cross members eliminate fatigue failure points, ensuring longevity under 24/7 cyclical loading.

Selecting a machine based on these engineering principles, rather than nominal size alone, is what transforms a screening station from a cost center into a profit-critical asset for maximizing coal output and purity.

Engineered for Extreme Loads: The Structural Integrity of Our Coal Screening Machine

The core structure is engineered to withstand the immense dynamic forces and abrasive wear inherent in high-tonnage coal processing. We achieve this not through over-engineering, but through precision material selection, certified manufacturing, and intelligent design that distributes stress and mitigates fatigue.

Material Science & Fabrication

• High-Stress Frame Construction: The main chassis and support members are fabricated from high-tensile, low-alloy steel (conforming to standards such as ASTM A572 Grade 50 or equivalent). This provides an optimal strength-to-weight ratio, resisting permanent deformation under extreme load.
• Critical Wear Component Armor: Screening decks, feed boxes, and discharge lips are lined with replaceable abrasion-resistant steel plates. We primarily use Hardox 400/500 or equivalent AR400/500 steel, chosen for its exceptional hardness (400-500 Brinell) and impact resistance, dramatically extending service life in high-abrasion zones.
• Vibrating Mechanism Housing: The bearing housings for the eccentric shaft assembly are precision-machined from solid steel forgings or high-grade castings (e.g., ASTM A148 Grade 80-50), ensuring perfect alignment and integrity to contain the high G-forces generated by the vibratory mechanism.

Certified Design & Engineering Standards
The structural design is validated against rigorous international standards to guarantee safety and performance. Our engineering process adheres to:

• ISO 8524: International standard for testing and evaluation of vibrating screens, ensuring performance claims are verifiable.
• CE Marking (where applicable): Compliance with the European Machinery Directive 2006/42/EC, affirming conformity with essential health and safety requirements.
• FEA (Finite Element Analysis): Critical structural components are subjected to advanced FEA simulation during the design phase. This identifies and eliminates stress concentrations, optimizing the structure for the specified Maximum Operational Load (typically 1.5x the designed TPH capacity).

Functional Advantages of the Structural Design

• Elimination of Premature Fatigue Failure: Reinforced corners and continuous welds (per AWS D1.1 structural welding code) prevent crack initiation at high-stress junctions.
• Adaptability to Variable Ore Hardness: The robust construction is not calibrated for a single material. The machine's integrity is maintained whether processing softer lignite or harder, more abrasive anthracite and middlings.
• Sustained High-Capacity Performance: Structural rigidity ensures screening efficiency and advertised TPH (Tons Per Hour) capacity is maintained consistently, without deflection or "frame whip" that can cause premature wear and particle misdirection.
• Modular Wear Protection: The use of bolted, replaceable wear liners on all high-impact areas transforms a major structural wear problem into a simple maintenance task, protecting the primary frame for the machine's entire lifecycle.

Key Structural Parameters for Heavy-Duty Models

This engineered integrity is the foundation that allows our screening machines to deliver reliable, continuous operation in the most demanding coal preparation plants, translating directly to lower lifetime cost and higher availability.

Tailored Solutions: Customizable Configurations for Your Mining Operation

The core engineering principle of an effective coal screening operation is that no two material streams or site conditions are identical. A machine purchased on specification alone is a compromise. True operational efficiency and longevity are achieved through a tailored configuration that aligns precisely with your raw feed characteristics, required product specifications, and plant logistics. Our engineering process begins with a forensic analysis of your application to specify a machine that functions as an integrated component of your process flow.

Core Customization Parameters & Engineering Considerations:

• Deck Configuration & Screening Media:

  • Single vs. Multi-Deck: Specified based on the number of product fractions required. A double-deck is standard for ROM coal separation (oversize, product, fines), while a triple-deck may be necessary for producing specialized washed coal sizes.
  • Screen Cloth Selection: Material and aperture are critical. Options include high-tensile, abrasion-resistant (AR) steel for heavy-duty scalping; polyurethane (PU) or rubber for noise reduction and increased wear life in mid-size separation; and woven wire for precise fine-screening. The choice is dictated by feed size, abrasiveness, and required throughput.

• Vibrating Mechanism & Drive System:

  • Eccentric Shaft vs. Linear Vibratory: Determined by material flow needs. Eccentric shaft (circle-throw) systems provide a positive, aggressive screening action ideal for high-capacity scalping of sticky or high-moisture coal. Linear vibratory systems offer a gentler, straighter material path optimal for precise sizing and dewatering applications.
  • Bearing & Housing Assembly: Custom-sized for the application's dynamic load. High-capacity cylindrical roller bearings, housed in robust, labyrinth-sealed cast-iron or steel housings, are specified based on calculated forces to ensure thermal stability and extended service life under continuous operation.

• Structural Integrity & Wear Package:

  • Main Frame & Side Plates: Fabricated from high-yield-strength steel (e.g., S355JR) with reinforced ribbing. Thickness and reinforcement are calculated based on the machine's dynamic mass and installed power to eliminate harmonic resonance and structural fatigue.
  • Critical Wear Liners: Areas of high-impact and abrasion—feed boxes, discharge lips, deck support beams—are lined with replaceable sections of Manganese Steel (Mn14%, Mn18%) or Hardox® alloy plate. The grade is selected based on the silica content and impact energy of your feed material.

• Capacity & Performance Specifications (TPH):

  • Throughput is not a standalone figure. It is a function of deck inclination, vibration amplitude/frequency, screen media open area, and material characteristics (bulk density, moisture, particle size distribution). We model performance using your specific feed data to guarantee the Tons Per Hour (TPH) capacity at your target separation efficiency.

Example Configuration Table for a Heavy-Duty Scalping Application:

Integration & Compliance:
Every machine is designed to interface seamlessly with your existing conveyor profiles, crusher feeds, and plant control systems. Structural modifications for mounting points, chute connections, and discharge heights are standard. All configurations are engineered to meet relevant ISO 9001 quality management standards and carry CE Marking (or other regional certifications), with full documentation packages for safety and maintenance protocols. The final deliverable is not just a machine, but a validated screening solution with guaranteed performance parameters for your operation.

Technical Specifications: Precision Engineering for Optimal Coal Separation

The efficacy of a coal screening machine is determined by the precision of its engineering and the robustness of its construction. Our machines are engineered to the highest international standards (ISO 9001, CE) to deliver consistent, high-volume separation in the most demanding mining and processing environments.

Core Construction & Material Science
The critical wear components are fabricated from high-grade, abrasion-resistant materials to withstand the impact and scouring of raw coal and associated overburden.

• Screen Decks & Liners: Constructed from High-Tensile, Woven Wire Mesh or Perforated Mn-Steel (11-14% Manganese) plates. Mn-steel work-hardens under impact, increasing service life in high-abrasion applications involving hard ores or rocky coal.
• Vibrating Mechanism & Bearings: The eccentric shaft assembly is forged from alloy steel (e.g., 4140) and supported by oversized, heavy-duty spherical roller bearings with high thermal stability, ensuring reliable operation under continuous, high-load conditions.
• Main Frame & Side Plates: Fabricated from high-yield strength steel plate, with reinforced gusseting at stress points to eliminate structural fatigue and maintain dynamic stability.

Precision Screening Dynamics
Separation accuracy is a function of the machine's motion characteristics, which are precisely calibrated for coal.

• Optimized Vibration Profile: A linear or circular throw is engineered to match coal's bulk density and particle shape, promoting efficient stratification and material travel without blinding or fluidization.
• Amplitude & Frequency Control: Bearings are housed in robust, labyrinth-sealed chambers with grease-purge systems to exclude contaminants. Drive systems utilize synchronized, high-torque vibratory motors or eccentric shaft drives with V-belt transmission for adjustable amplitude, allowing tuning for varying feed sizes and moisture content.

Operational Specifications & Adaptability
Performance is quantified by measurable parameters critical to mine planning and ROI.

Functional Advantages for Mining Operations

• High Availability Design: Modular construction and accessible components reduce mean time to repair (MTTR). Deck tensioning systems allow for rapid screen media change-out.
• Moisture & Fines Tolerance: Engineered screen motions and deck configurations (e.g., heated decks, ball-tray systems) mitigate blinding from sticky, high-surface-moisture coal.
• Hard Ore Adaptability: The combination of Mn-steel wear surfaces and a dynamically balanced, high-inertia vibrating assembly allows for processing coal with high associated hardness (e.g., shale, sandstone) without premature degradation.
• Integration Readiness: Designed with standardized chute connections, feed boxes, and discharge lips for seamless integration into existing conveyor and washing circuits.

Proven Reliability: Industry-Leading Durability and Low Maintenance

The core structural components are fabricated from high-grade, abrasion-resistant materials. Decks, side plates, and feed boxes utilize quenched & tempered manganese steel (typically 12-14% Mn, 1.2-1.4% C) or proprietary alloy steels with Brinell hardness ratings exceeding 400 HB. This ensures exceptional resistance to impact and wear from high-tonnage, abrasive coal and rock, directly extending service life by a factor of 3-5x compared to standard carbon steel components.

Vibration isolation is achieved through high-performance, multi-stage rubber or composite shear mounts. These are engineered for high static load capacity and dynamic stability, absorbing over 90% of operational vibrations. This critical design feature prevents harmonic resonance transfer to the support structure, eliminating a primary cause of structural fatigue and foundation failure in continuous 24/7 operations.

• Heavy-Duty Bearing Assemblies: Utilize large-bore, spherical roller bearings in labyrinth-sealed housings, rated for L10 life exceeding 60,000 hours under maximum dynamic load. This is supported by forced-feed or advanced grease circulation systems that ensure consistent lubrication, even at extreme deck angles.
• Modular Screen Media System: Interchangeable, pre-tensioned panels (wire mesh, polyurethane, or rubber) employ a patented hook-strip or bolt-down system. This allows for rapid, single-tool replacement of individual panels—downtime is measured in minutes, not hours.
• Drive System Robustness: Synchronized dual-vibrator mechanisms are connected via a torsion-shaft, ensuring force synchronization and eliminating elliptical motion. Drive components are over-engineered to a minimum service factor of 2.0, providing a significant buffer against peak load shocks and torque spikes.

All machines are designed, manufactured, and tested in compliance with international mechanical and safety standards, including ISO 9001 for quality management and relevant CE directives for machinery safety. Factory acceptance testing (FAT) protocols include a minimum 72-hour continuous full-load run-in under simulated operational conditions, verifying performance metrics and thermal stability before shipment.

Maintenance requirements are deliberately minimized through sealed-for-life components, centralized lubrication points, and easily accessible service bays. The design philosophy prioritizes component commonality across models, streamlining spare parts inventory. This engineering approach results in annual maintenance costs typically below 2% of the machine's capital cost and availability rates consistently above 96% in demanding coal handling and preparation plant (CHPP) environments.

Secure Your Investment: Warranty, Support, and Easy Purchase Process

Warranty: Engineered for Endurance

Our warranty is a direct reflection of the machine's construction. We guarantee critical wear components—such as high-Mn-steel (11-14% Manganese) screen decks, impact-resistant feed boxes, and main vibrator assemblies—against material or manufacturing defects. This is not a generic promise; it is backed by documented material certifications and adherence to ISO 9001 quality management systems throughout fabrication.

• Wear Component Assurance: Specific coverage for screen meshes (woven, punch plate, or modular), deck frames, and liners manufactured to specified alloy grades (e.g., HARDOX® for abrasion, NM series for impact).
• Structural Integrity Guarantee: The main frame, stress-relieved after welding to prevent fatigue cracking, carries an extended warranty period.
• Drive System Protection: The heart of the screening action—the vibrator motor(s) or exciter drive—is covered, ensuring consistent stroke and frequency for your target material separation.

Technical Support & Lifecycle Service

Our support begins with application engineering to ensure machine specification matches your material characteristics (e.g., bulk density, moisture content, particle size distribution, and abrasiveness). Post-installation, our global partner network provides lifecycle services grounded in mining operational expertise.

• Pre-Purchase Analysis: Review of your feed material specs and required TPH capacity to recommend optimal screen box geometry (inclination, stroke, speed) and surface media.
• Remote Diagnostics & Parts Forecasting: Leverage operational data to predict wear life and plan maintenance downturns, minimizing unscheduled stoppages.
• On-Site Optimization: Technicians can perform dynamic balancing checks, adjust vibration parameters, and recommend screening media solutions for changing ore profiles.

Streamlined Procurement & Logistics

We manage the complex logistics of heavy industrial equipment. The purchase process is structured for clarity and risk mitigation, from commercial terms to delivery at your site.

Table: Standardized Procurement Pathway

Frequently Asked Questions

Question

What is the typical replacement cycle for high-wear screening components like screen decks?
High-manganese steel (e.g., Hadfield Grade 11-14% Mn) screen decks last 3-8 months, depending on coal abrasiveness. For severe impact, use heat-treated alloy steel. Monitor for peening hardening. Implement predictive maintenance via thickness gauging to schedule replacements during planned downtime, maximizing uptime.

Question

How does the machine adapt to coal with varying hardness (e.g., lignite vs. anthracite)?
Adjust vibration amplitude/frequency via the exciter's eccentric block mass or hydraulic drive system. For harder anthracite, increase amplitude to prevent blinding. For friable lignite, reduce force to minimize degradation. Screen deck material (rubber vs. polyurethane) should also be selected based on abrasion and noise requirements.

Question

What engineering controls are in place to manage harmful vibration transmission?
Isolate the vibrating frame from the base structure using high-performance rubber or steel coil spring isolators. Dynamic balancing of the eccentric shaft assembly is critical. For premium models, hydraulic vibration dampers allow real-time adjustment. Ensure the substructure's natural frequency is at least 50% away from the operating frequency.

Question

What are the critical lubrication specifications for the vibrator bearing assembly?
Use high-temperature, extreme-pressure lithium complex grease (NLGI Grade 2). Premium bearings (SKF or FAG) require regreasing every 500-800 hours via automatic lubrication systems. Monitor bearing temperature with infrared sensors; sustained operation above 80°C indicates potential failure from over-greasing or misalignment.

Question

How is screen blinding mitigated for moist or sticky coal feeds?
Utilize heated screen decks or ball-tray decks (anti-blinding systems) that impart secondary impacts. Polyurethane screens with a high open area and slotted apertures improve material passage. Adjust spray bar systems to use high-pressure water jets strategically, ensuring moisture content is managed upstream via pre-screening if possible.

Question

What determines the choice between a linear and circular motion screening machine?
Linear motion is for precise sizing of dry, free-flowing coal at high capacity. Circular motion provides higher acceleration for dewatering or washing sticky coal. The choice hinges on moisture content, desired product stratification, and throughput. Exciter type (dual-shaft vs. single-shaft) defines the motion profile and application.
