Petroleum Coke Crushing Plant – A Concise Overview
Petroleum coke (petcoke) crushing plants are essential processing facilities that transform raw coke from oil refineries into uniformly sized, low‑dust particles suitable for downstream applications such as power generation, cement production, and metal‑recovery processes. Modern plants typically handle 500 – 2 000 t/h of feed, delivering product grades ranging from 0 mm to 30 mm while meeting stringent environmental and safety standards. The core of a crushing plant consists of a robust material‑handling system, a sequence of primary and secondary crushers, screening equipment, dust‑suppression units, and an integrated control system that ensures continuous operation, product consistency, and compliance with local regulations.
1. Why Petcoke Requires Crushing
Petroleum coke is a carbon‑rich solid by‑product of delayed coking units in refineries. Global production exceeds 140 million t per year, with the United States, China, and the Middle East accounting for the majority of output. In its raw form, petcoke emerges as large, irregular blocks (typically 200 mm – 500 mm) that are unsuitable for most industrial uses. Crushing serves three primary purposes:
- Size Reduction for Process Compatibility – Power‑plant boilers, cement kilns, and metallurgical furnaces demand feed particles below 30 mm to guarantee uniform combustion and avoid blockages.
- Dust and Surface‑Area Management – Smaller particles increase the surface area, improving reactivity in calcination or gasification, while controlled crushing minimizes the generation of fine, respirable dust that poses health and explosion hazards.
- Logistics and Storage Efficiency – Uniformly sized coke packs more densely, reducing transportation costs and storage footprint.
2. Typical Plant Layout

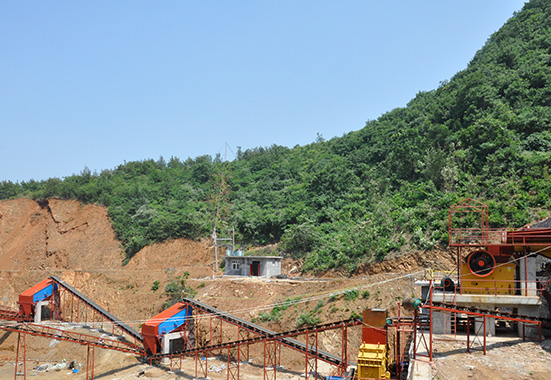

A conventional petcoke crushing plant follows a linear flow, illustrated below:.jpg)
- Raw‑Material Reception – Bulk petcoke is delivered by railcars, trucks, or conveyor belts to a covered storage bunker equipped with a dust‑tight gate.
- Feeding System – A vibrating feeder or apron feeder meters the material to the primary crusher, ensuring a consistent feed rate and preventing surges that could overload downstream equipment.
- Primary Crushing – A heavy‑duty jaw crusher (e.g., 600 × 900 mm cavity) reduces the feed to <100 mm. Jaw crushers are preferred for their ability to handle the high hardness (Mohs 2 – 3) and abrasive nature of petcoke.
- Secondary Crushing – An impact crusher or cone crusher further reduces the size to the target 0 – 30 mm range. Impact crushers are advantageous for producing a cubical shape, while cone crushers provide finer control over product gradation.
- Screening – A vibrating screen with multiple decks separates the product into designated size fractions. Oversized material is recirculated to the secondary crusher, while undersized fines are directed to a dust‑collection system.
- Dust Suppression & Collection – High‑efficiency baghouses or cyclone separators capture fine particles, and water‑spray misting systems keep airborne dust below permissible exposure limits (PEL).
- Product Storage & Dispatch – The final product is conveyed to sealed silos or bagging stations, ready for shipment.
The entire line is overseen by a programmable logic controller (PLC) that monitors feed rates, crusher power draw, screen vibration, and dust‑collector pressure, enabling real‑time adjustments and predictive maintenance.
3. Key Equipment Selection
| Equipment | Typical Capacity | Rationale for Petcoke |
|---|---|---|
| Jaw Crusher | 500 – 1 200 t/h | Handles high bulk density (≈1.5 t/m³) and abrasive wear; simple structure reduces downtime. |
| Impact/ Cone Crusher | 300 – 800 t/h | Provides fine, cubical product; adjustable settings allow quick change of target size. |
| Vibrating Screen | 1 000 – 2 500 t/h | Multi‑deck design ensures efficient segregation; stainless steel mesh resists corrosion from coke’s sulfur content. |
| Dust Collector (Baghouse) | 5 – 15 m³/min | Captures >99 % of particles <10 µm; equipped with high‑temperature filters to withstand occasional hot feed. |
| Water‑Spray System | 10 – 30 L/min | Lowers dust concentration in the crushing zone; water consumption is modest due to recirculation. |
Materials of construction are typically high‑chrome alloy steel or wear‑resistant manganese plates, extending component life to 2 – 3 years under continuous operation..jpg)
4. Environmental and Safety Considerations
Petroleum coke is classified as a combustible solid with a low flash point when finely divided. Consequently, crushing plants must address two principal risks: dust explosion and air‑quality impact.
- Dust Explosion Prevention – The plant layout maintains a maximum dust concentration of 5 g/m³, well below the lower explosive limit (LEL) of 30 g/m³ for petcoke. Inert gas (nitrogen) purging is employed in confined crusher housings, and all electrical equipment complies with ATEX Zone 1 certification.
- Air‑Quality Controls – Continuous emission monitoring systems (CEMS) track particulate matter (PM10, PM2.5) and sulfur dioxide (SO₂) levels. The captured dust is either recycled back into the crushing circuit or sold as a low‑grade filler, reducing waste.
- Water Management – The misting system recirculates water through a closed‑loop filtration unit, limiting fresh‑water consumption to <0.5 m³ per tonne of processed coke.
- Noise Reduction – Acoustic enclosures around crushers and screens keep sound pressure levels below 85 dB(A), complying with occupational health standards.
5. Operational Performance Metrics
A well‑engineered plant typically achieves the following benchmarks:
- Throughput – 1 200 t/h at 90 % crusher availability.
- Product Uniformity – Size distribution within ±5 % of the target grade; <2 % of material finer than 0.5 mm.
- Energy Consumption – 0.35 kWh per tonne of crushed coke, largely driven by crusher motor loads; regenerative drives can cut this figure by up to 15 %.
- Dust Capture Efficiency – >99 % of particles <10 µm removed, resulting in stack emissions below 10 mg/Nm³.
These figures are derived from operational data reported by major petcoke processors in Texas, the Gulf Coast, and the Middle East, where plants of comparable capacity have been in service for over a decade.
6. Emerging Trends
The petcoke crushing sector is evolving in three notable directions:
- Automation & Digital Twins – Real‑time simulation models predict wear patterns on crusher liners, allowing pre‑emptive part replacement and reducing unplanned shutdowns by 20 %.
- Energy‑Efficient Drives – High‑efficiency variable‑frequency drives (VFDs) adapt motor speed to feed fluctuations, lowering electricity use and extending motor life.
- Product Diversification – With increasing demand for low‑sulfur cement additives, some plants integrate a calcination step downstream of crushing, producing “calcined petcoke” with enhanced reactivity for the steel industry.
7. Conclusion
Petroleum coke crushing plants are indispensable links between refinery output and the myriad industrial sectors that rely on finely sized coke. By integrating robust primary and secondary crushers, precise screening, and comprehensive dust‑control systems, modern facilities deliver high‑quality product at rates up to 2 000 t/h while adhering to strict safety and environmental standards. Continuous improvements in automation, energy efficiency, and product specialization are poised to further enhance the competitiveness of petcoke as a versatile carbon feedstock in a low‑carbon future.
