A jaw crusher, when correctly selected, positioned, and commissioned, provides a reliable, high‑throughput primary crushing solution that can handle a wide range of hard and abrasive materials while maintaining low operating costs and minimal downtime. Its simple mechanical design—consisting of a fixed jaw, a moving jaw, a toggle plate, and a robust frame—delivers a predictable reduction ratio and a consistent product size. Proper installation, which includes foundation preparation, precise alignment of the crusher’s main components, and thorough testing before full‑load operation, is essential to achieve the manufacturer’s performance specifications and to ensure long‑term durability. The following sections outline the key technical features of a typical jaw crusher and present a step‑by‑step guide to its installation, emphasizing safety, quality control, and best‑practice engineering principles.
1. Core Components and Operating Principle
A jaw crusher operates on the principle of a reciprocating motion that forces material between two plates (the jaws). The fixed jaw is mounted to the frame, while the moving jaw is driven by an eccentric shaft that converts rotary motion into a vertical‑up‑and‑down swing. The toggle plate acts as a safety device and a mechanical stop, preventing over‑travel of the moving jaw. The crushing chamber is defined by the geometry of the jaws and the adjustable discharge opening, which determines the size of the final product.
Typical jaw crushers are classified as single‑toggle or double‑toggle. In a single‑toggle design, the moving jaw is suspended on the eccentric shaft and swings in a simple elliptical motion, offering higher throughput and easier maintenance. Double‑toggle crushers employ two shafts and a more complex motion, providing greater crushing force for very hard ores but at the cost of higher wear and lower capacity. Modern machines often incorporate hydraulic adjustment of the discharge opening, allowing rapid change‑over without dismantling the crusher.
2. Selecting the Right Machine
Choosing a jaw crusher for a given application depends on several parameters:
| Parameter | Typical Considerations |
|---|---|
| Material hardness | Use a crusher with a high crushing force (e.g., double‑toggle) for hard, abrasive rocks; single‑toggle is sufficient for medium hardness. |
| Feed size | The maximum feed should be less than 80 % of the crusher’s gape. |
| Desired product size | Adjust the discharge opening; a smaller opening yields finer product but reduces capacity. |
| Capacity requirement | Expressed in tons per hour (tph); manufacturers provide curves linking gape, discharge opening, and throughput. |
| Power availability | Ensure the plant’s electrical or motor‑driven power matches the crusher’s rated horsepower. |
Manufacturers such as Metso, Sandvik, and Terex provide detailed selection charts that correlate these variables with specific model families. Consulting these charts prevents oversizing (unnecessary capital cost) or undersizing (excess wear and frequent blockages)..jpg)
3. Site Preparation and Foundations
A stable, level foundation is the most critical factor for reliable operation. The typical foundation design includes a reinforced concrete pad with the following features:
- Thickness – Minimum 300 mm (12 in) for crushers up to 500 kW; thicker pads are required for larger units.
- Reinforcement – A mesh of 12 mm (½ in) deformed bars at 150 mm (6 in) spacing, both longitudinally and transversely, to resist the dynamic loads generated during crushing.
- Anchoring – M12 or M16 anchor bolts (grade 8.8 or higher) are embedded in the concrete to secure the crusher baseplate. The bolt pattern follows the manufacturer’s drawing, typically a rectangular grid that distributes the load evenly.
- Levelness – The finished surface must be within ±2 mm (0.08 in) across the entire pad. Laser leveling is recommended to achieve this tolerance.
Before pouring concrete, the site should be compacted to a minimum of 95 % Proctor density to avoid settlement. Drainage provisions (e.g., a slight slope away from the pad) prevent water accumulation, which could degrade the concrete over time.
4. Mechanical Installation
4.1 Positioning the Crusher

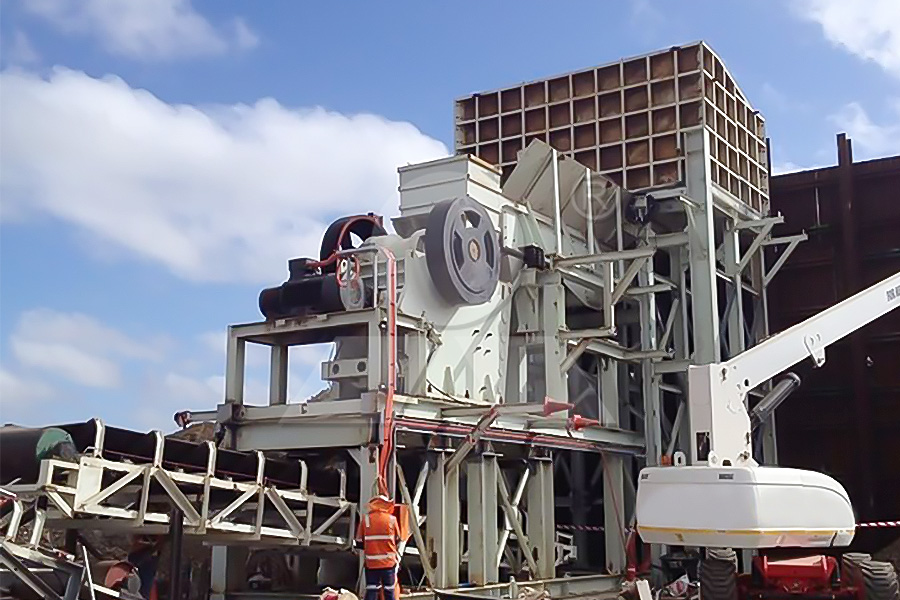

- Baseplate placement – Using the pre‑drilled anchor holes, lower the crusher onto the foundation with a crane equipped with a spreader bar to avoid point loading.
- Alignment – Verify that the crusher’s longitudinal axis is parallel to the intended feed direction within 0.5°. Misalignment can cause uneven wear on the jaw plates and increased vibration.
4.2 Connecting the Drive System
- Motor coupling – Align the motor shaft and the crusher’s drive shaft using a dial indicator or laser alignment tool. The permissible angular misalignment is typically ≤0.2°.
- Coupling bolts – Torque the coupling bolts to the manufacturer’s specification (often 150 Nm for M20 bolts). Apply a thread‑locking compound to prevent loosening under vibration.
4.3 Electrical Hook‑up
- Power supply – Connect the motor to a dedicated circuit with appropriate short‑circuit protection (e.g., a 3‑pole circuit breaker sized to 125 % of the motor full‑load current).
- Control panel – Install the crusher’s control cabinet in a dry, ventilated location. Wire the start/stop, overload, and emergency‑stop contacts according to the wiring diagram. Use shielded cables for sensor signals (e.g., discharge opening position).
4.4 Hydraulic and Lubrication Systems
- Hydraulic adjustment – If the crusher features hydraulic discharge opening control, install the hydraulic pump, accumulator, and pressure relief valve as per the schematic. Verify that the hydraulic oil meets the viscosity grade recommended by the OEM (typically ISO VG 46).
- Lubrication – Fill the bearing housings with the specified grease (e.g., NLGI grade 2) and check that the oil level in the gearbox is within the sight‑glass marks.
5. Commissioning Procedure
- Pre‑start inspection – Confirm that all bolts are torqued, the foundation is level, and the guard rails are in place. Check that the jaw plates are correctly installed and that the toggle plate is not overstressed.
- Dry run – Operate the crusher at 30 % of rated speed without feed material for 5 minutes. Observe vibration levels; they should not exceed the manufacturer’s limit (often 2 mm RMS on the baseplate).
- Load test – Introduce a small amount of feed material (≈10 % of design capacity). Monitor the discharge size, motor current, and temperature of bearings. Adjust the discharge opening if the product size deviates from the target.
- Full‑load operation – Gradually increase the feed rate to the design capacity while continuously recording key parameters. The motor current should stabilize at the rated value, and the crusher’s internal temperature should remain below the maximum allowable (typically 80 °C for the bearings).
During the first 24 hours of operation, perform a visual inspection of the jaw plates and toggle plate for abnormal wear or deformation. Replace any damaged components before the crusher is placed into continuous service.
6. Maintenance and Safety Considerations
- Routine checks – Daily inspection of the discharge opening, jaw plate wear, and lubrication points. Weekly measurement of the toggle plate clearance to detect early signs of overload.
- Protective devices – Ensure that the emergency‑stop buttons are functional and that the interlock guards prevent access to moving parts while the crusher is running.
- Wear parts – Replace jaw plates according to the wear‑rate chart supplied by the OEM; typical service life ranges from 6 months to 2 years depending on material abrasiveness.
Adhering to these maintenance practices extends the crusher’s service life and minimizes unplanned shutdowns..jpg)
7. Conclusion
A jaw crusher, when matched to the material characteristics and installed on a properly engineered foundation, delivers high‑capacity primary crushing with predictable performance and low operating expense. The installation process—spanning foundation work, precise mechanical alignment, secure electrical and hydraulic connections, and systematic commissioning—must be executed in accordance with the manufacturer’s specifications and relevant engineering standards (e.g., ISO 9001 for quality management and ISO 14001 for environmental considerations). By following the outlined procedures, plant operators can achieve optimal throughput, reduce wear, and maintain a safe working environment throughout the crusher’s operational life.
