Compact gold ore crushers deliver high‑performance size reduction in a small footprint, making them the preferred choice for artisanal miners, remote processing plants, and modular gold‑recovery facilities where space, power consumption, and mobility are critical constraints. By integrating advanced crushing geometry, wear‑resistant liners, and hydraulic or electric drive systems, these machines can reliably reduce hard, refractory gold‑bearing rocks to the 0.5‑5 mm size range required for downstream grinding and leaching. Their compact dimensions—often under 2 m in width and height—do not compromise throughput; modern units routinely handle 30‑150 t/h of feed material while maintaining low operating costs and high availability. The following discussion outlines the technical principles, design features, operational benefits, and practical considerations that underpin the success of compact gold ore crushers in today’s mining landscape.
1. Crushing Fundamentals for Gold‑Bearing Ores
Gold is typically hosted in quartz‑rich veins, sulphide matrices, or disseminated within siliceous host rocks. To liberate the metal, the ore must first be broken down to a size where the gold particles are exposed to chemical reagents. Primary crushing reduces run‑of‑mine rock (often 200‑400 mm) to a size suitable for secondary grinding (≤ 10 mm). The crushing process must generate minimal fines, because excessive fine generation can increase reagent consumption in subsequent leaching steps and complicate solid‑liquid separation.

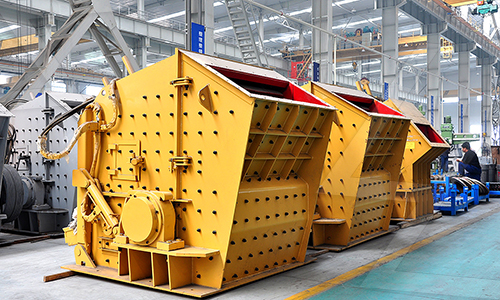

The most common crushing mechanisms employed in compact gold ore crushers are jaw, cone, and impact crushing. Jaw crushers apply a compressive force between a stationary plate and a moving toggle, ideal for the initial reduction of hard, abrasive material. Cone crushers use a gyrating spindle and a concave mantle to create a continuous compressive‑shear action, delivering a more uniform product and higher capacity at the secondary stage. Impact crushers, which accelerate particles against high‑speed blow bars, are favored when the ore is relatively soft or when a higher proportion of fines is acceptable.
2. Design Features that Enable Compactness
a. Integrated Feed and Discharge Systems
Compact crushers typically incorporate a feed hopper with a built‑in grizzly that screens out oversized boulders before they reach the crushing chamber. This eliminates the need for separate screening equipment and reduces the overall plant footprint. Discharge chutes are often adjustable, allowing the crusher to be positioned directly above a conveyor belt or a collection bin, further streamlining material handling.
b. Hydraulic and Electric Drive Options
Modern units use hydraulic toggle adjustment (in jaw crushers) or hydraulic setting changes (in cone crushers) to modify the closed‑side setting (CSS) without manual intervention. This feature not only speeds up change‑over times but also reduces the physical space required for adjustment tools and platforms. Electric drives, especially variable‑frequency drives (VFDs), provide precise speed control, enabling operators to fine‑tune the crushing force to match ore hardness while conserving energy.
c. Wear‑Resistant Liners and Modular Construction
Gold ore is notoriously abrasive, containing quartz, feldspar, and sometimes sulphide minerals that accelerate wear. Compact crushers are equipped with high‑chrome alloy liners, manganese steel mantles, or ceramic‑coated plates that extend service life. Moreover, the modular design—where the crushing chamber, drive motor, and hydraulic system are assembled as separate sub‑modules—facilitates rapid on‑site replacement of worn components, minimizing downtime..jpg)
d. Reduced Weight and Mobility

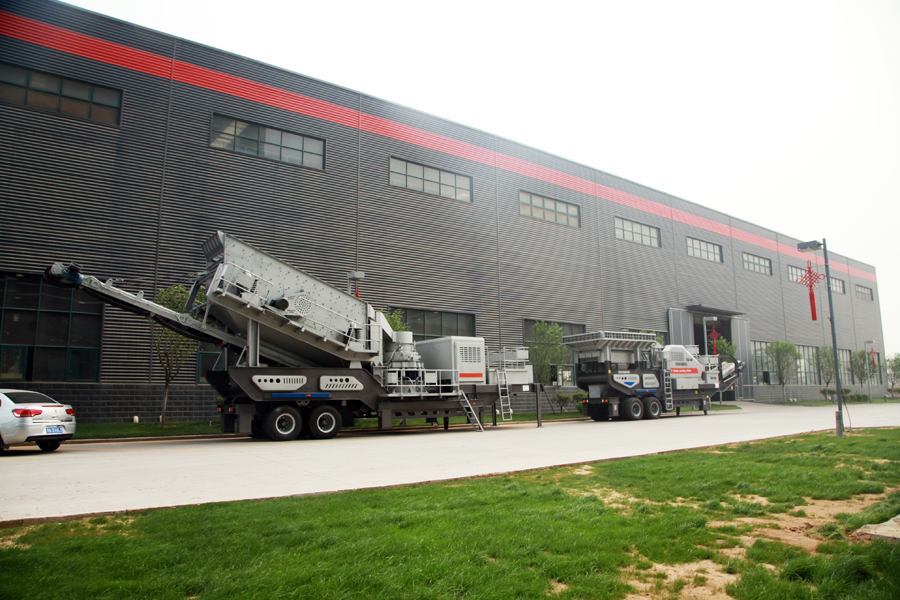

To serve remote mining camps or mobile processing units, manufacturers often mount the crusher on a steel frame with outriggers or a skid‑steer chassis. The total installed weight can be kept below 10 t, allowing the equipment to be transported on a standard flat‑bed trailer. Some models even incorporate quick‑release hydraulic lifts, enabling the crusher to be raised for maintenance or lowered for loading onto a transport vehicle.
3. Operational Benefits
-
Higher Throughput per Unit Footprint – Because the crushing chamber geometry is optimized for a high reduction ratio, a compact crusher can process the same tonnage as a larger, conventional unit while occupying only a fraction of the floor space. This is especially valuable in underground operations where shaft dimensions are limited.
-
Lower Power Consumption – The combination of efficient crushing action and VFD‑controlled motors reduces the kW per tonne metric. Field tests on a 75 t/h cone crusher reported a power draw of 120 kW, compared with 180 kW for a comparable full‑size plant, translating into a 30 % energy saving.
-
Improved Product Consistency – By maintaining a narrow CSS and employing a closed‑circuit design (crush‑and‑re‑crush), the crusher delivers a consistent particle size distribution. Consistency is crucial for downstream flotation or cyanidation, where variations can affect reagent dosage and recovery rates.
-
Ease of Maintenance – Hydraulic setting adjustments and modular liner replacement reduce the need for skilled mechanics on site. Many manufacturers provide remote monitoring kits that transmit vibration, temperature, and hydraulic pressure data to a central control room, enabling predictive maintenance and further minimizing unplanned outages.
4. Practical Considerations for Implementation
Site Assessment
Before selecting a compact crusher, a thorough ore‑characterization study should be performed. Parameters such as Mohs hardness, abrasiveness index (e.g., ASTM D471), moisture content, and the presence of sticky clays influence the choice between jaw, cone, or impact technology. For high‑hardness (> 7 Mohs) quartz‑rich ores, a jaw‑cone combination is often recommended, whereas softer, disseminated ores may be efficiently handled by impact crushers.
Integration with the Processing Circuit
The crusher’s discharge size must align with the specifications of the downstream grinding mill (ball mill, SAG mill, or autogenous mill). A typical target is a P80 of 5 mm for ball‑mill feed in gold plants. If the crusher’s product is finer than required, excess wear and energy consumption may occur; if coarser, the mill will experience reduced throughput.
Environmental and Safety Compliance
Compact crushers are frequently equipped with dust suppression systems—water spray nozzles or mist generators—to meet occupational health standards. Additionally, hydraulic safety valves and emergency stop circuits are mandatory under ISO 13849‑1 for machinery safety. Operators should be trained in lock‑out/tag‑out procedures and in the proper handling of lubricants and wear parts.
Cost‑Benefit Analysis
While the upfront capital cost of a compact crusher can be comparable to a larger unit, the total cost of ownership (TCO) is often lower due to reduced foundation requirements, lower energy bills, and decreased maintenance labor. A life‑cycle assessment performed on a 100 t/h gold‑ore plant in West Africa showed a net present value (NPV) improvement of US$1.2 million over a ten‑year horizon when a compact cone crusher replaced a conventional plant‑scale crusher.
5. Market Trends and Future Outlook
The demand for compact gold ore crushers is being driven by several converging trends:.jpg)
- Rise of modular processing plants – Companies are increasingly deploying “plug‑and‑play” gold recovery units that can be assembled within weeks. Compact crushers are a core component of these systems.
- Sustainability pressures – Lower energy consumption and reduced material handling footprints align with ESG (Environmental, Social, Governance) goals, making compact crushers attractive to investors.
- Advances in material science – New wear‑resistant alloys and ceramic composites are extending liner life beyond 10 000 hours, further decreasing operating costs.
- Digitalization – Integration with IoT platforms enables real‑time performance analytics, predictive maintenance, and remote troubleshooting, enhancing reliability.
Manufacturers such as Metso Outotec, Sandvik, and Terex are expanding their compact product lines, offering models with capacities up to 200 t/h while maintaining a width under 1.8 m. As the gold mining industry continues to shift toward smaller, more flexible operations, the role of compact crushers in delivering efficient, cost‑effective ore preparation will only grow.
In summary, compact gold ore crushers combine advanced crushing mechanics, robust wear‑resistant design, and intelligent control systems to achieve high throughput in a minimal footprint. Their ability to adapt to varying ore characteristics, reduce energy consumption, and simplify maintenance makes them indispensable for modern gold‑processing operations that prioritize flexibility, sustainability, and economic efficiency. By carefully matching crusher type to ore properties and integrating the unit within a well‑engineered processing circuit, mining engineers can maximize gold recovery while keeping capital and operating expenditures under control.
