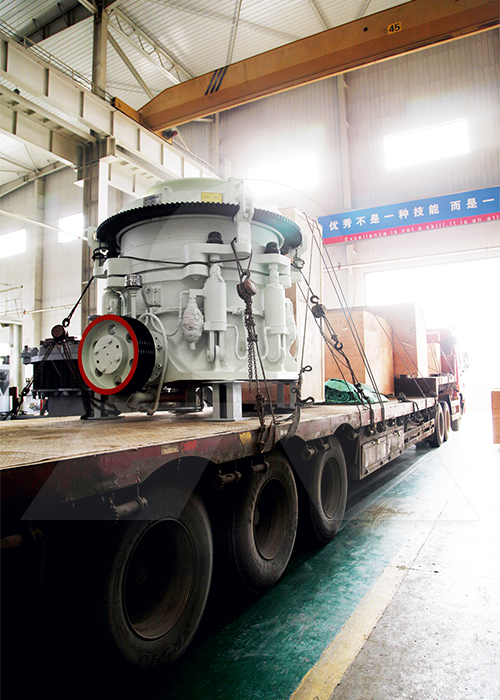

Basics of Cone Crusher

A cone crusher is a type of compression crusher used in mining, aggregates, and construction industries to reduce the size of hard and abrasive materials. It operates by compressing rock between a rotating mantle and a stationary concave liner. Below are the fundamental aspects of cone crushers.

Working Principle

The cone crusher works on the principle of compression crushing. The material enters the crushing chamber through the feed opening and is compressed between the mantle (moving component) and the concave (fixed liner). As the mantle gyrates, it creates a squeezing action that breaks down the material into smaller pieces. The crushed product exits through the discharge opening at the bottom.

Key Components

1. Mantle – The rotating conical head that crushes material against the concave.
2. Concave (Bowl Liner) – The stationary outer surface that forms the crushing chamber.
3. Eccentric Assembly – Drives the gyrating motion of the mantle.
4. Hydraulic System – Adjusts the crusher setting (closed-side setting) for different product sizes and protects against overloads.
5. Main Shaft – Supports the mantle and transmits rotational force from the eccentric assembly.

Types of Cone Crushers

1. Standard (Coarse) Cone Crusher – Used for secondary crushing with a larger feed size and coarser output.
2. Short Head (Fine) Cone Crusher – Designed for tertiary or quaternary crushing, producing finer material with a steeper head angle and smaller discharge opening.
3. Hydraulic Cone Crusher – Features hydraulic adjustment and overload protection for improved efficiency and safety.

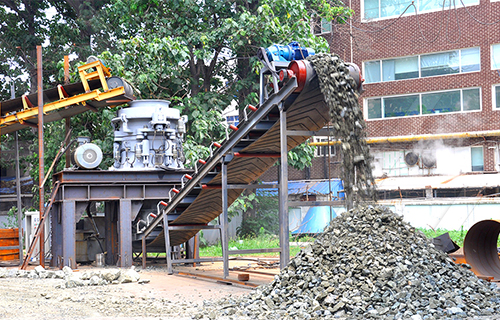

Applications

• Mining (crushing ore)
• Aggregate production (gravel, sand)
• Construction (road base, concrete aggregate)

Advantages Over Other Crushers

• Higher efficiency in hard rock crushing compared to jaw crushers.
• Better particle shape than impact crushers for certain materials.
• Adjustable discharge settings for varying product sizes.

Maintenance Considerations

Regular inspection of wear parts (mantle, concave), lubrication checks, and monitoring hydraulic pressure are essential to maintain optimal performance and prevent downtime.

Cone crushers remain a critical piece of equipment in mineral processing and aggregate production due to their reliability and efficiency in size reduction tasks.
