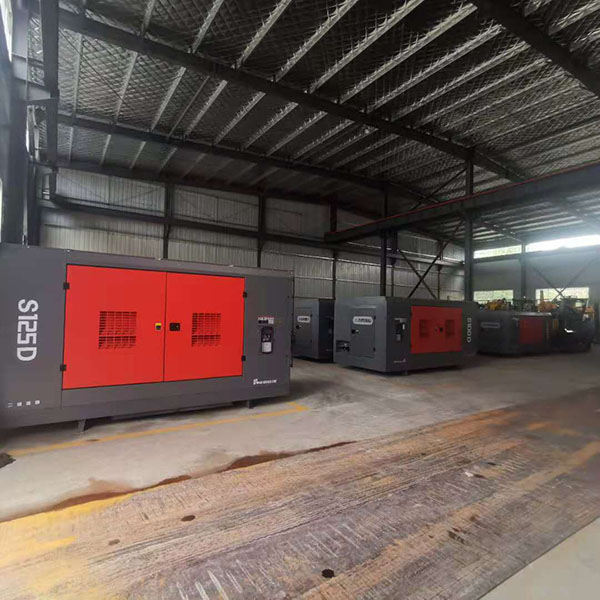

Model S125D
Name designation
unit
Diesel screw air compressor
Nominal displacement
m³/min
35
Rated discharge pressure
Bar
30
Maintain oil change rate
L
120
Compressed series
step
2
Engine type
Tin firewood
QSZ13-C550-30
Engine output
kw
410
Fuel tank capacity
600
Dimensions
mm
4220*2000*2300
Total weight
kg
5820
Air evacuation valve
inch
G1-1/2 G2-1/2
