FYL200 Water Well Drilling Rig

INQUIRY Email Contact Email Contact

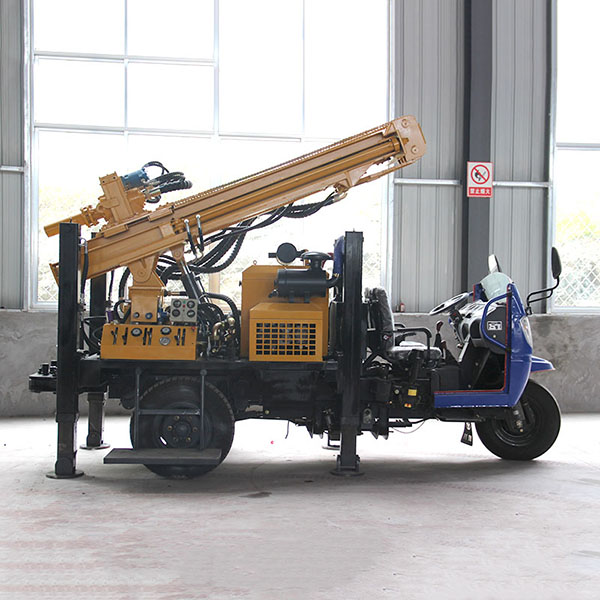

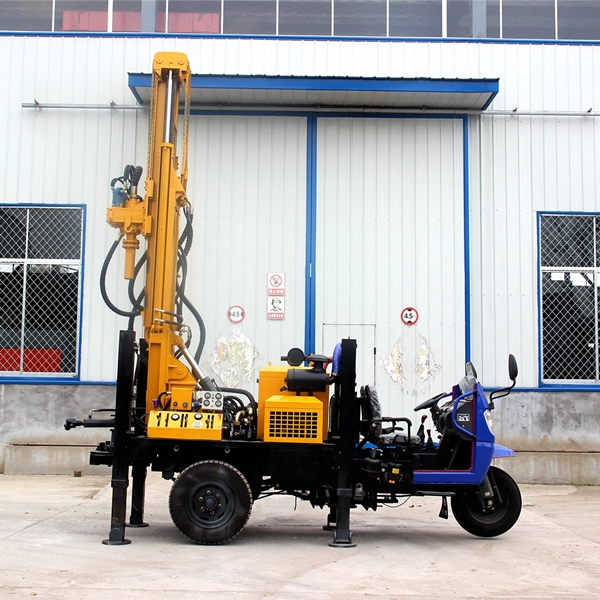

Water and gas dual-purpose vehicle-mounted (tricycle) 200 meters deep

FYL200 water well drilling rig Features:

1. Equipped with a 65KW Yuchai brand turbocharged engine with strong power;
2. Patented design compound boom, double cylinder lifting;
3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
4. It has high flexibility, is sturdy and durable, has little damage to the road surface, and is easy to move;
5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
6. The whole machine uses a three-wheeled tractor with high horsepower and low torque, which can cope with more complex road conditions and is easy to move.
7. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump

FYL 200vehicle-mounted water well drilling rig
The weight（T）	4.7	Drill pipe diameter（mm）	Φ76 Φ89
The hole diameter（mm）	140-254	Drill pipe length（m）	1.5m 2.0m 3.0m
Drilling depth（m）	200	Rig lifting force（T）	13
One-time advance length（m）	3.3	Rapid rise speed（m/min）	20
Walking speed（km/h）	20-40	Fast feeding speed（m/min）	40
Climbing angles（Max.）	30	Swing speed（rpm）	45-65
Equipped capacitor（kw）	65	Hoisting force of winch（T）	----
Using air pressure（MPA）	1.7-2.5	Swing torque（N.m）	3400-4700
Air consumption（m³/min）	17-31	Dimension（mm）	4350×1600×2450
The penetration efficiency（m/h）	10-35	High leg stroke（m）	1.4
The engine brand	Quanchai engine
