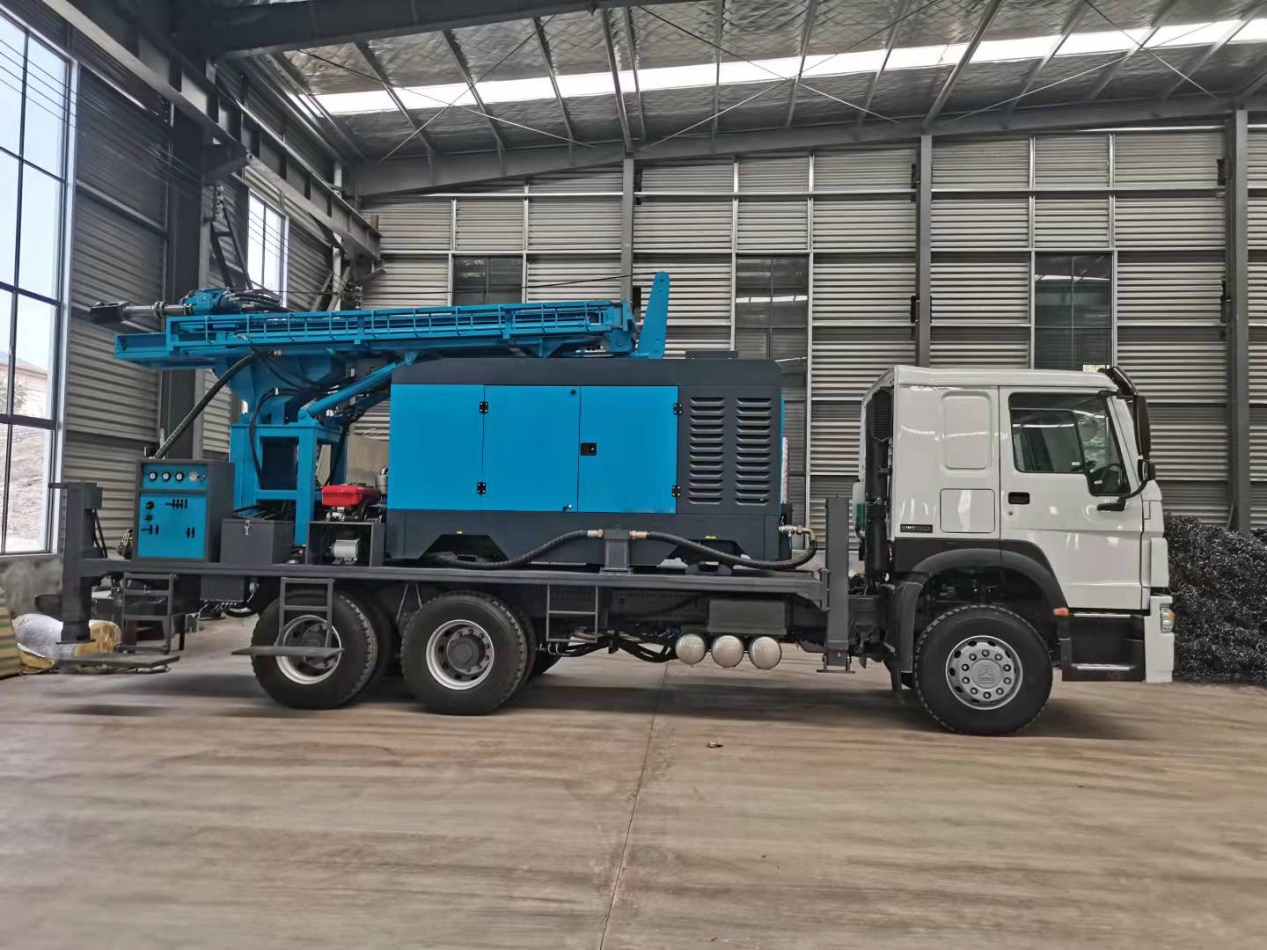

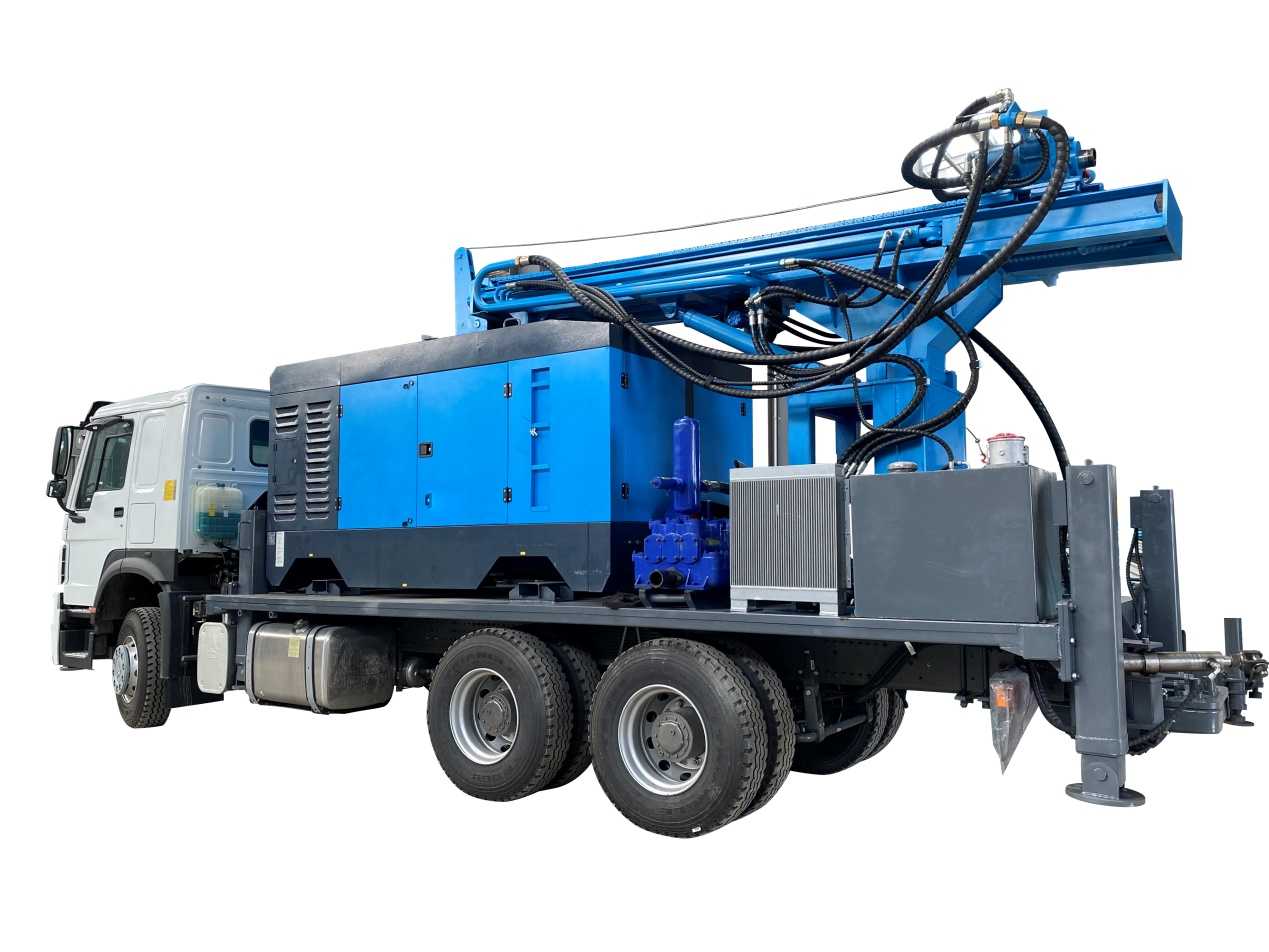

FYC280 Vehicle-mounted water well drilling rig

INQUIRY Email Contact Email Contact

FYC280 Vehicle-mounted water well drilling rig feature

1.FYC280Multi function truck mounted water well riling rig is a new type, high efficiency and multi-function full hydraulic driig rig, which ismainly used for dirilig water wells, monitoring wells, geothermal alr-conditioning holes, grouting holes for hydropower cofferdams,anti-seepagegrouting holes for dams, groutig holes for foundation reinforcement, open-pit mining, anchoring, national defense engineering and other deep holedrilling processes.
2.The rig is equipped with high-power hydraulic motor, hydraulic boom, DTt hammerd illing, and large flow mud pump, which can realize mud driling
3. The mud pump and air compressor are all on the same car chassis, which is convenient and efficient, and the overall erformance is higher thanother types of drilling rigs.FYC280 and above with foam pump.According to customers' requirements, independent diesel engine can be equipped as drilling power.customers' requirements, independent dieseengine can be equipped.

FYC280 Vehicle-mounted water well drilling rig
The hole diameter（mm）	140-305
Drilling depth（m）	280
Equipped capacitor（KW）	75Kw or truck engine direct connection
Drill pipe diameter（mm）	76/89
Hoisting force of winch（T）	1.5T
The penetration efficiency（m/h）	15-35
One-tine advance length（m）	6.6
Rig lifting force(T)	17
Swing torque（N.m）	4500-6000
Swing speed（rpm）	40-70
Using air pressure（MAP）	1.7-3.0
Air consumption（m³/min）	17-31
Air compressor (optional)
Discharge pressure（Bar）	25
Engine displacement（m/min）	31
Other Optional Parts
Foam pump	14.5m3/min
Mud pump	BW250/450
Truck	Dong feng/HOWO
Multifunctional generator	Can generate electricity and can be welded (convenient casing)
