tin ore mining crushers and conveyors

Beneath the earth's surface lies a critical resource that has shaped civilizations: tin. Modern extraction of this versatile metal hinges on a seamless, industrial symphony of powerful machinery designed for efficiency and reliability. At the heart of this operation are robust crushers and intricate conveyor systems, the unsung heroes of the mining process. Primary and secondary crushers work tirelessly to reduce raw, rugged ore into manageable fragments, liberating the valuable cassiterite. Simultaneously, a network of durable conveyors acts as the lifeline of the mine, transporting this crushed material with precision and speed from the crushing face to processing plants. This dynamic duo not only maximizes throughput but also enhances safety and optimizes operational costs, forming the essential backbone of any productive tin mining endeavor.

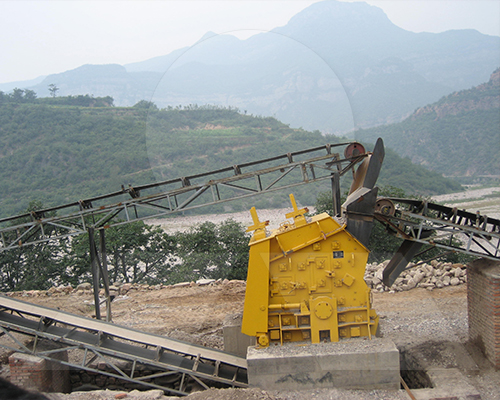

Maximizing Tin Ore Recovery with High-Efficiency Crushing and Conveying Solutions

Tin ore recovery is fundamentally linked to the preservation of mineral integrity during size reduction and the elimination of material loss during transport. Inefficient crushing generates excessive fines, bypassing recovery circuits, while unreliable conveying creates spillage and downtime, directly reducing yield. A system engineered for high efficiency addresses these points at the material, mechanical, and control levels.

Crushing Circuit Optimization for Mineral Liberation
The primary objective is to achieve optimal liberation of cassiterite (SnO₂) from the gangue matrix with minimal over-grinding. This requires a comminution strategy matched to ore hardness and structure.

• Primary Crushing: Heavy-duty jaw crushers, utilizing high-grade manganese steel (Mn14Cr2 or Mn18Cr2) jaws, handle run-of-mine ore. Key design features include a steep nip angle and robust toggle plate to manage high compressive forces and occasional tramp material without failure.
• Secondary/Tertiary Crushing: Cone crushers are critical for producing a consistent, coarse feed for subsequent gravity separation. Modern hydroset systems allow real-time adjustment of the closed-side setting (CSS) to compensate for mantle wear and maintain product size distribution. Liner profiles are selected based on feed size and desired product, with extra-coarse to fine cavity options.
• Material Science Focus: Crusher wear parts are not commodity items. Austenitic manganese steel (AMS) with work-hardening properties is standard. For highly abrasive ores, TIC (Tungsten Carbide Insert) liners or composite alloys offer extended service life, reducing maintenance frequency and associated metal loss from liner changes.

High-Integrity Conveying for Total Material Accountability
Conveying is not merely transport; it is a controlled, continuous interface between process stages. Any loss here represents a direct loss of recoverable tin.

• Belt Selection & Design: Conveyor belts for tin ore service require high rip strength (e.g., DIN 22131 Grade 1000) and abrasion-resistant covers (minimum 10mm). Impact zones are reinforced with engineered rubber or ceramic lagging to prevent carcass damage from coarse feed.
• Spillage Elimination: This is a core USP. Systems employ:
  • Troughing & Sealing: Deep-trough idlers (45°) combined with multi-stage skirtboard seals, often with wear-resistant ceramic or UHMW-PE liners.
  • Belt Tracking: Automated, maintenance-free tracking idlers (e.g., garland type) ensure the belt runs true, preventing edge damage and material spillage.
  • Cleaning: Primary and secondary belt cleaners (tungsten carbide blade or polyurethane) are mandatory, with tensioning systems to maintain contact as blades wear.
• Drive & Control: Variable Frequency Drives (VFDs) enable soft-starting to reduce belt stress and allow speed modulation to match feed rates from the crusher, optimizing power consumption.

System Integration and Control
Maximum recovery is achieved when crushing and conveying operate as a single, responsive system.

• Automated Level & Load Management: Crusher cavities are kept choke-fed via bin level sensors and VFD-controlled feeder belts, ensuring optimal crushing efficiency and consistent product gradation.
  • Metal Detection & Tramp Removal: In-line metal detectors and magnetic separators protect downstream crushers from uncrushable steel, preventing catastrophic damage and unplanned stoppages.
• Dust Suppression: Enclosed transfer points with bag filter systems or foam dust suppression control airborne fines, which represent both an environmental issue and a direct loss of potentially recoverable ultra-fine tin.

Technical Specifications for System Sizing

Standards and Certification
All equipment must be designed and manufactured to relevant international standards, including ISO 21873 (mobile crushers), ISO 15236 (steel cord belts), and CE marking for the European market, ensuring structural integrity, safety, and performance predictability.

Engineered for Extreme Loads: The Structural Integrity of Our Tin Ore Mining Crushers and Conveyors

The structural integrity of crushers and conveyors is the non-negotiable foundation of operational uptime and total cost of ownership in tin mining. Our engineering philosophy prioritizes a holistic design approach, where material selection, finite element analysis (FEA)-optimized fabrication, and adherence to stringent international standards converge to create assets built for the specific rigors of cassiterite-bearing ore.

Core Material Science and Fabrication
Primary crusher jaws, cones, and impactor wear parts are cast from proprietary high-grade austenitic manganese steel (Mn14, Mn18, Mn22) with controlled carbide precipitation for optimal work-hardening against the abrasive nature of tin ore. Structural frames, conveyor idler shafts, and drive assemblies utilize high-yield strength, low-alloy (HSLA) steel plate, often meeting ASTM A572 Grade 50 or equivalent specifications, chosen for its superior strength-to-weight ratio and fatigue resistance.

All critical weldments are performed to ISO 3834 and ASME Section IX standards, with post-weld stress relief and non-destructive testing (NDT) via ultrasonic or magnetic particle inspection as standard protocol. This ensures the weld integrity matches the base material's performance under cyclical loading.

Mining-Specific Engineering Advantages

• Adaptive Crushing Geometry: Crusher chamber profiles and eccentric throws are configured not just for throughput, but to handle the variable hardness and occasional dense, hard rock inclusions common in tin deposits, preventing packing and minimizing uncrushable material stalls.
• Dynamic Load Management: Conveyor systems integrate impact-absorbing, sealed idler rollers at feed points and utilize ST- or DIN 22102-rated steel cord belting with rip detection systems. Drive pulleys are lagged with high-friction, abrasion-resistant ceramic tiles to prevent slip under high-torque, wet-load conditions.
• Sealed-for-Life Critical Components: Main crusher bearings are oversized, housed in labyrinth-sealed, cast steel housings with continuous grease purge systems. Conveyor idlers feature triple-lip seals and packed-for-life lubrication to exclude fine, abrasive silicate dust—a primary cause of premature bearing failure.
• Structural Damping: Fabricated bases and support structures incorporate internal ribbing and strategic gusseting, as validated by modal analysis, to dampen harmonic vibrations from crusher operation, thereby reducing metal fatigue and structural bolt loosening.

Technical Parameters for System Specification

Compliance and Validation
All structural designs are validated against static and dynamic load cases per ISO 5049-1 (Mobile equipment) and FEM Section II standards. Critical systems carry CE marking per the Machinery Directive 2006/42/EC, with full documentation packages. This rigorous engineering process ensures that stated capacities—whether 500 TPH or 5000 TPH—are sustainable rates, not peak theoretical values, providing a predictable and reliable operational envelope for your mine plan.

Optimizing Throughput and Reducing Downtime in Tin Ore Processing

Optimizing throughput and minimizing unplanned downtime are the primary engineering objectives for any tin ore processing circuit. Success hinges on selecting and configuring crushers and conveyors not as isolated components, but as an integrated system designed for the specific material characteristics of the deposit.

Core Strategy: Crusher Selection Based on Ore Hardness and Abrasiveness
Tin ore (primarily cassiterite, SnO₂) is often embedded within hard, abrasive host rock like granite or quartzite. The crushing stage must be engineered to handle this.

• Primary Crushing (Jaw Crushers): Utilize heavy-duty jaw crushers with frames constructed from high-grade, welded steel plate. The crushing jaws should be made of manganese steel (Mn14, Mn18, or Mn22% depending on abrasiveness) to withstand high compressive forces and work-harden upon impact, extending service life. The nip angle and throw are critical for achieving the desired reduction ratio without causing unnecessary wear.
• Secondary/Tertiary Crushing (Cone Crushers): For finer reduction, robust cone crushers are essential. Key features include:
  • Hydraulic Adjustment and Clearing: Allows for rapid setting changes to maintain product size and instant clearing of blockages, protecting the machine from tramp metal or uncrushables.
  • Advanced Liner Profiles: Computer-optimized cavity designs maximize throughput (TPH) for a given power draw and produce a more consistent product size, reducing load on downstream processes.
  • Material of Construction: Main shafts from high-tensile forged alloy steel; concaves and mantles from premium manganese steel alloys for optimal wear resistance.

System Integration and Conveyor Durability
Conveyors are the circulatory system of the operation. Their reliability directly dictates overall plant availability.

• Impact and Wear Resistance at Transfer Points: The point where crushed ore loads onto the conveyor is a high-wear area. Utilize engineered systems such as:
  • Impact Cradles & Slider Beds: Replace traditional idlers with dampening systems to absorb load shock, protecting the belt carcass.
  • Abrasion-Resistant Liners: Install replaceable liners made of ultra-high molecular weight polyethylene (UHMWPE) or hardened steel in chutes and hoppers to guide material flow and prevent cutting wear.
• Belt and Component Specification:
  • Belt Carcass: Specify multi-ply fabric belts with high rip and tear resistance (e.g., DIN 22102/ISO 15236 standards) or steel cord belts for long-center, high-tension applications.
  • Cover Compounds: Use cut-and-gouge resistant rubber compounds with a high abrasion rating for the top cover. A bare bottom cover is often sufficient for return runs.
  • Idlers and Pulleys: Sealed, precision-grade idlers (ISO 1537 compliant) with C3/C4 clearance bearings are mandatory to prevent ingress of fine, abrasive dust. Pulleys should be lagged with ceramic or diamond-grooved rubber to prevent belt slip and wear.

Proactive Maintenance as an Optimization Tool
Downtime is best managed proactively through design and protocol.

Key Performance Indicators (KPIs) for Optimization
Throughput optimization is measured and adjusted via:

• Overall Equipment Effectiveness (OEE): Tracking availability, performance, and quality rate for the crushing and conveying circuit.
• Specific Power Consumption (kWh/tonne): Monitoring this metric identifies inefficiencies, such as crushers operating with worn liners or conveyors running misaligned.
• Product Size Distribution: Consistent sampling and analysis ensures crusher settings are optimal for recovery in the downstream gravity separation circuit, where liberation size is critical.

Ultimately, achieving peak performance requires equipment that exceeds generic quarry specifications, designed instead for the relentless abrasion and impact of hard rock tin ore. This is achieved through material science in components, adherence to international mechanical standards, and a system-level approach to integration and maintenance planning.

Technical Specifications: Precision Engineering for Tin Ore Mining Applications

Material Specifications & Construction

Primary crushing components, including jaw crusher liners, cone crusher mantles/concaves, and impactor blow bars, are fabricated from premium austenitic manganese steel (Mn14, Mn18, Mn22) or specialized martensitic alloys. These materials are selected for their work-hardening properties, which increase surface hardness under impact, providing exceptional resistance to the high-stress abrasion and moderate impact characteristic of tin-bearing ores like cassiterite. Critical structural frames are constructed from high-tensile, abrasion-resistant steel plate (minimum 400 HB) with stress-relieved welding to prevent fatigue failure.

Conveyor systems utilize carcasses of EP (Polyester/Nylon) fabric or steel cord (ST) with covers of SBR/NR compound, rated for cut and gouge resistance (e.g., Grade M, N). Idler rolls feature labyrinth seals, regreasable bearings, and tubes manufactured from precision DOM (Drawn Over Mandrel) steel. Pulleys are of welded construction with rubber lagging to prevent belt slippage.

Design Standards & Certifications

All equipment is engineered and manufactured in compliance with international standards for safety, performance, and interoperability. This includes ISO 21873 for mobile crushers, ISO 15236 for steel cord conveyor belts, ISO 5048 for belt conveyors, and the CE marking directive for the European Economic Area, encompassing the Machinery Directive (2006/42/EC). Structural design follows FEM 1.001 and similar rigorous calculation methodologies.

Mining-Specific Functional Advantages

• Ore Hardness & Feed Variability Adaptation: Crusher cavities and eccentric throws are optimized for the compressive strength range (typically 140-180 MPa) of tin ore formations. Advanced hydraulic adjustment and overload protection systems (e.g., tramp release and clearing) allow for uncrushable material passage and instantaneous chamber reset, minimizing downtime from feed contamination.
• Throughput & Product Gradation Control: Crushers are configured for precise top-size control and high reduction ratios to liberate cassiterite while minimizing over-grinding. Variable frequency drives (VFDs) on crusher motors and conveyor systems enable fine-tuning of throughput (TPH) and product size in real-time to match downstream processing requirements.
• Dust & Spillage Mitigation: Conveyors are designed with deep-troughing idler sets, effective skirtboard systems with wear liners, and controlled loading zones. Crushers incorporate sealed housings and integrated dust suppression connections compliant with site environmental controls.
• Maintenance & Serviceability: Modular component design, such as wedge-locked jaw die systems and cartridge-style bearing housings, allows for rapid replacement of wear parts. Centralized lube systems and accessible service points reduce planned maintenance intervals.

Key Performance Parameters

Proven Reliability in Harsh Mining Environments: Case Studies and Testimonials

Case Study 1: High-Abrasion Underground Mine, Southeast Asia
Client Challenge: Processing cassiterite-bearing ore with a high quartz content (Mohs 7) and consistent moisture, leading to rapid wear on crusher mantles and conveyor belt surfaces. Downtime for liner changes was exceeding production targets.
Technical Solution: Implementation of a primary jaw crusher with liners fabricated from modified Hadfield Mn-steel (ASTM A128 Grade C), work-hardening to over 550 BHN under continuous impact. Downstream, a troughed belt conveyor system was installed using ST-5000 steel cord belting with a 12mm RMA Grade 1 abrasion-resistant cover.
Documented Outcome: Liner service life increased by 220%. The conveyor system, with its impact beds and sealed bearings (IP66 rating), has operated for over 15,000 hours with only scheduled maintenance. Client-reported plant availability improved to 96.5%.

Case Study 2: Alluvial/Eluvial Open-Pit Operation, Africa
Client Challenge: Highly variable feed material, from soft clay-bound ore to hard, weathered granite scree, causing frequent blockages in the primary crushing stage and excessive belt mistracking on long overland conveyors.
Technical Solution: Deployment of a hybrid mobile crushing plant centered on a hydraulic gyratory crusher with automatic setting regulation (ASRi) to adapt mantle position in real-time. Overland conveyors (2.2km total) were engineered with aramid-reinforced, low-stretch belts and automated tensioning systems compliant with ISO 15236.
Documented Outcome: The crusher's adaptive control maintained a consistent 450 TPH output despite feed variance. Belt tracking issues were eliminated, reducing spillage and associated cleanup labor by an estimated 70%.

Core Engineering Principles Behind These Results:
Reliability is engineered in, not added on. Our equipment's performance in these environments is a direct function of its design and material specifications.

• Material Selection for Extreme Wear:

  • Crusher jaws, concaves, and mantles utilize proprietary alloy grades of austenitic manganese steel, optimized for work-hardening characteristics specific to tin ore's abrasive gangue materials.
  • Conveyor components—from pulley lagging to skirtboard liners—are specified in ultra-high molecular weight polyethylene (UHMW-PE) or ceramic-embedded composites for low coefficient of friction and high abrasion resistance.

• Design for Mining-Specific Duty:

  • Crushers feature heavy-duty, forged alloy steel main frames and oversized spherical roller bearings to absorb shock loads from uncrushable material.
  • Conveyor idlers are built with CEMA C/D/E class seals, designed for >40,000-hour L10 bearing life in high particulate conditions. Structures are calculated for dynamic load factors exceeding standard ISO 5048 requirements.

• System Integration & Control:

  • PLC-controlled conveyor systems incorporate load-sharing drives, belt rip detection, and fire suppression systems as per mining safety standards.
  • Crushers are supplied with integrated condition monitoring points for vibration, temperature, and pressure, enabling predictive maintenance scheduling.

Client Testimonial Excerpts:

"The switch to the [Supplier Name] gyratory crusher and its specialized liner chemistry was decisive. We track cost-per-ton, and it has fallen by 18% since installation, primarily due to the extended wear life and reduced downtime." – Plant Superintendent, Tin Concentrator

"In our corrosive, wet environment, conveyor idler failure was chronic. Since implementing the sealed, corrosion-protected idler series, our quarterly maintenance hours on the conveyor line have dropped by over 60%." – Maintenance Manager, Alluvial Mining Operation

Performance Data Summary:
The following table aggregates key operational parameters from documented installations, demonstrating consistent performance across varied ore bodies.

*MTBR: Mean Time Between Repairs (for major wear components)

Streamlining Your Tin Ore Operations with Customizable Crusher and Conveyor Configurations

Customizable crusher and conveyor configurations are engineered to align precisely with the specific geology and material characteristics of your tin ore deposit. The primary objective is to create a coherent flow that maximizes throughput while minimizing energy consumption and wear-related downtime. This is not merely selecting equipment from a catalog; it is a process of system integration based on your ore's compressive strength, abrasiveness, moisture content, and the required product sizing for downstream concentration.

Core Technical Considerations for Configuration:

• Ore Characterization-Driven Crusher Selection: The choice between jaw, cone, or impact crushers at primary, secondary, and tertiary stages is dictated by the ore's hardness (often measured on the Mohs or Protodyakonov scale) and silica content. For highly abrasive cassiterite-bearing rock, cone crushers with high-pressure grinding rolls (HPGR) technology and liners fabricated from premium manganese steel (Mn14, Mn18, Mn22) offer superior service life. The manganese steel's work-hardening property is critical for withstanding continual impact.
• Material-Specific Conveyor Engineering: Conveyors are specified based on more than length and incline. Key parameters include belt composition (e.g., multi-ply fabric with abrasion-resistant rubber covers, steel cord for long-haul drives), idler seal type (labyrinth, polymer) to prevent fine ore contamination, and impact bed design at loading points to protect the belt from sharp, heavy feed.
• System Synchronization for Optimal TPH: The entire circuit's capacity is governed by its weakest link. Crusher motor power, feeder discharge rates, conveyor belt speed and width, and transfer chute geometry are all calculated and controlled in unison. Modern PLC-based systems modulate equipment to maintain peak Tons Per Hour (TPH) without causing choke-feeding or spillage.
• Modularity for Life-of-Mine Adaptability: A well-designed system accommodates changing feed conditions as mining faces advance. Modular plant designs and conveyors with extendable frames allow for relocation and reconfiguration without complete system replacement, protecting capital investment.

Functional Advantages of a Customized Flow Sheet:

• Targeted Comminution: Crushers are sized and set to produce the optimal feed size for your gravity separation or flotation plant, directly improving recovery rates.
• Reduced Abrasive Wear: Strategic use of wear-resistant alloys in liners, impellers, and chutes at high-impact points drastically lowers maintenance part turnover and operational cost per ton.
• Dust and Spillage Mitigation: Engineered transfer points with sealed skirting, hoods, and dust extraction ports maintain environmental compliance and minimize material loss.
• Energy Efficiency: Correctly sized motors and variable frequency drives (VFDs) on conveyors and crushers match power draw to actual load, reducing wasted energy during partial-load operation.

Technical Specification Framework for Primary Circuit Configuration

The following table outlines typical parameters considered when specifying equipment for a medium-hard tin ore primary crushing and conveying circuit.

All integrated systems should be designed and manufactured to relevant international standards for safety and structural integrity, including ISO 21873 (mobile crushers), ISO 15201 (conveyor safety), and bear CE marking for the European market or equivalent regional certifications. The ultimate deliverable is a synchronized materials handling circuit that functions not as a collection of machines, but as a single, reliable, and efficient production unit.

Frequently Asked Questions

What is the optimal replacement cycle for crusher wear parts in abrasive tin ore?

High-manganese steel (e.g., Hadfield Grade A, 11-14% Mn) liners typically last 1,200-1,800 hours. Cycle depends on ore's silica content and crusher setting. Monitor wear profiles weekly. Use laser scanning for precise measurement. Replace before thickness reduces by 60% to prevent catastrophic damage to crusher body and rotor.

How do I adapt a jaw crusher for varying tin ore hardness (Mohs 5-7)?

Adjust the closed-side setting (CSS) hydraulically: widen for softer ore (Mohs ~5), tighten for harder (Mohs ~7). Use different jaw plate profiles: corrugated for hard, abrasive ore; smooth for friable material. Ensure mainframe and pitman are rated for the maximum required crushing force (typically 15-20% above nominal).

What specific bearing solutions prevent premature failure in conveyor head drums?

Use sealed, spherical roller bearings (e.g., SKF Explorer series or equivalent) with C3 clearance for thermal expansion. Implement automatic, centralized lubrication (grease) with intervals calibrated to load and RPM. Install vibration sensors for condition monitoring. Ensure perfect shaft alignment (<0.05mm TIR) during installation.

What are critical vibration control points for a primary gyratory crusher foundation?

Isolate high-frequency vibrations with custom-engineered elastomeric pads or spring units under the crusher base. Ensure the reinforced concrete foundation mass is 2.5-3x the crusher's operating weight. Anchor bolts must be tensioned to precise torque specs. Regularly check for foundation cracks and bolt tightness.

Which lubrication system is best for gear drives on heavy-duty tin ore conveyors?

A closed-loop, oil-recirculating system with dual filters (10-micron nominal) and thermostatic cooling is mandatory. Use ISO VG 320 synthetic extreme-pressure (EP) gear oil. Monitor oil temperature (keep below 82°C) and particulate count via scheduled oil analysis. Integrate flow alarms with the conveyor's PLC for automatic shutdown.

How do I optimize conveyor belt life when handling sharp, heavy tin ore?

Utilize multi-ply, abrasion-resistant rubber covers (minimum 10mm top, 4mm bottom). Employ impact beds with ceramic lagged idlers at loading points. Maintain proper belt tracking with trained return idlers and effective scrapers. Control material loading velocity and angle to match the belt's rated impact resistance.
