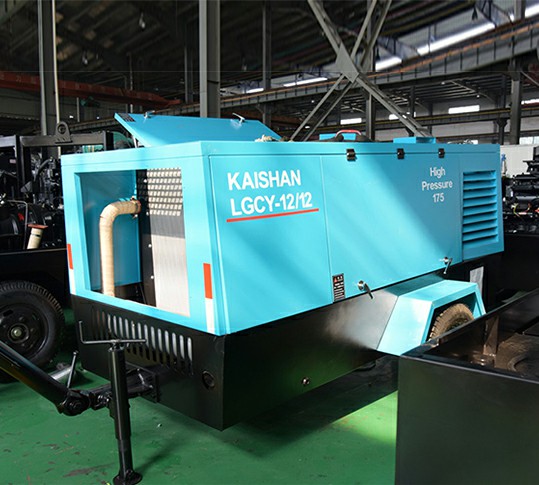

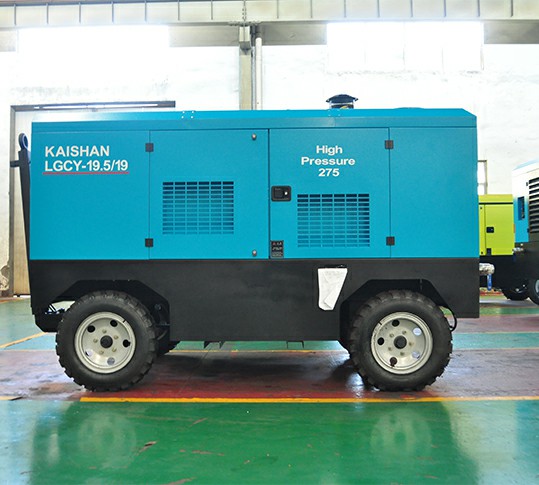

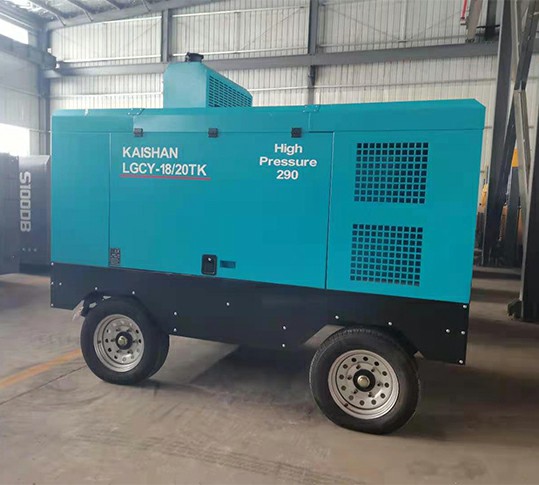

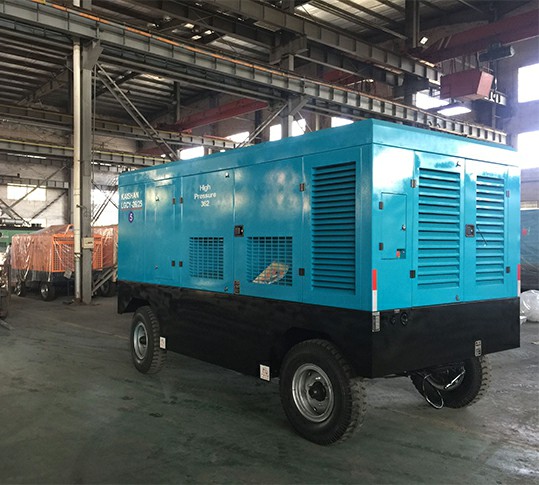

LGCY Two-Stage Diesel Screw Type Air Compressor

Applications

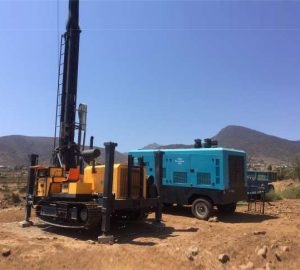

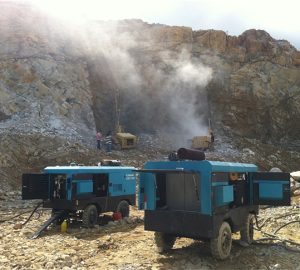

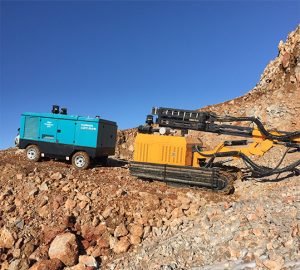

Diesel portable screw air compressor is widely applied in the industries, such as, road, railway, mine, water conservancy, shipbuilding, urban construction, energy and war industry, etc.

Kaishan-Brand diesel portable screw air compressor is efficient and reliable, with complete varieties. Its power range is 37 - 300kW; discharge quantity covers 30m3/min and the discharge pressure is up to 2.2MPa at maximum.

Features of LGCY Two-Stage Diesel Screw Type Air Compressor

Two-stage compression portable diesel screw air compressor has the following Characteristics:

1. Triple air filtration system and triple oil and gas separation system

Efficient cooling system for lubricating oil filter with precision of 10μ
Axial-flow type inlet valve fully closed chassis and mute cover design
The top is equipped with single-point lifting ring, which is convenient for loading and unloading heavy type portable chassis
Special compressor lubricants for microcomputer control system interface.

2. SKY2 patent compression main engine

Design according to the highest pressure of 40bar
Rotor profile: SKY Generation II patent rotor profile, with high pressure and large discharge quantity and the highest efficiency
Two-stage compression: Flexible design corresponds to the lift valve, with global patent for invention
Heavy-type design, SKF bearing, direct connection for driving and with no gear noise.
The optimal structure and the highest reliability
Double working operation switching design, for example: The user can select to operate it under 33 cubes and 25bar working condition, and also can select to operate it under 25 cubes and 35bar working condition, which are switched mutually conveniently and quickly.

3. Heavy electronic injection diesel engine

Speed regulation system of fuel：Electronic control high pressure common rail.
Matched with Commins and Yuchai brand heavy electronic injection diesel engine. According to load situation, electronically and accurately control the fuel-injection quantity, and achieve optimal combustion state during whole operation range of the engine. The product has higher reliability, stronger power and the more superior fuel economy.

4. Standard configuration

SKY2-40 patent compression main engine
Heavy electronic injection engine
Compressor controller
Mute cover
Environmental fully-closed chassis
Heavy air filter
High-capacity fuel tank

5. Optional configuration

Double mode compression main engine
Diesel engine
After cooler
Steam-water separator and drain valve
Fuel-heating system

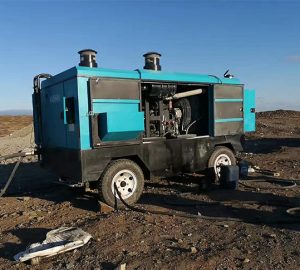

6. Easy to move, in harsh terrain conditions can still move flexibly.Each compressor is equipped with a lifting ring for safe and convenient lifting and transportation.

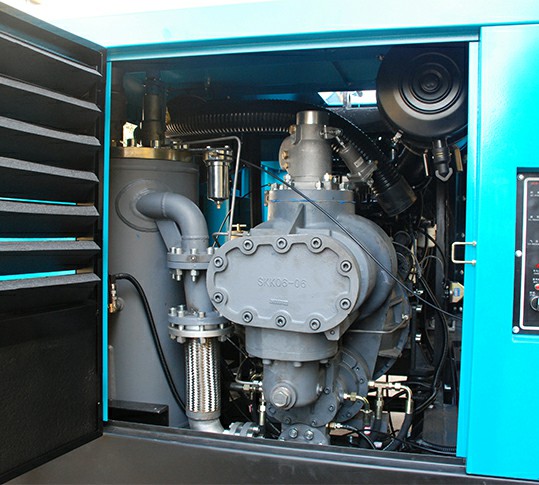

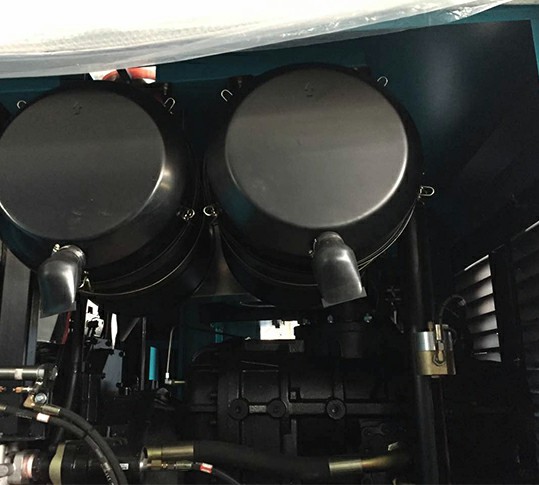

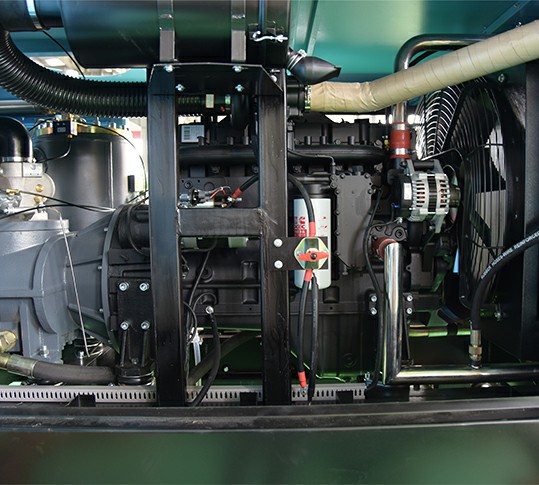

Kaishan LGCY Two-Stage Diesel Screw Type Air Compressor Inner Details Pictures

Technical Parameter of LGCY Two-Stage Diesel Screw Type Air Compressor
