jaw crusher in processing

In the dynamic world of mineral processing and aggregate production, efficiency begins with the primary reduction of raw materials. At the heart of this critical first stage stands the jaw crusher, a robust and time-tested workhorse engineered to transform large, irregular feed into manageable, uniform particles. Its fundamental principle—a fixed and a movable jaw exerting immense compressive force—creates the essential foundation for all downstream operations. From quarries to recycling plants, the modern jaw crusher is a marvel of mechanical design, offering unparalleled reliability, adjustable output settings, and the rugged durability to handle the toughest ores and demolition debris. Understanding its pivotal role, operational nuances, and technological advancements is key to optimizing any processing circuit for maximum throughput, product quality, and operational cost-effectiveness.

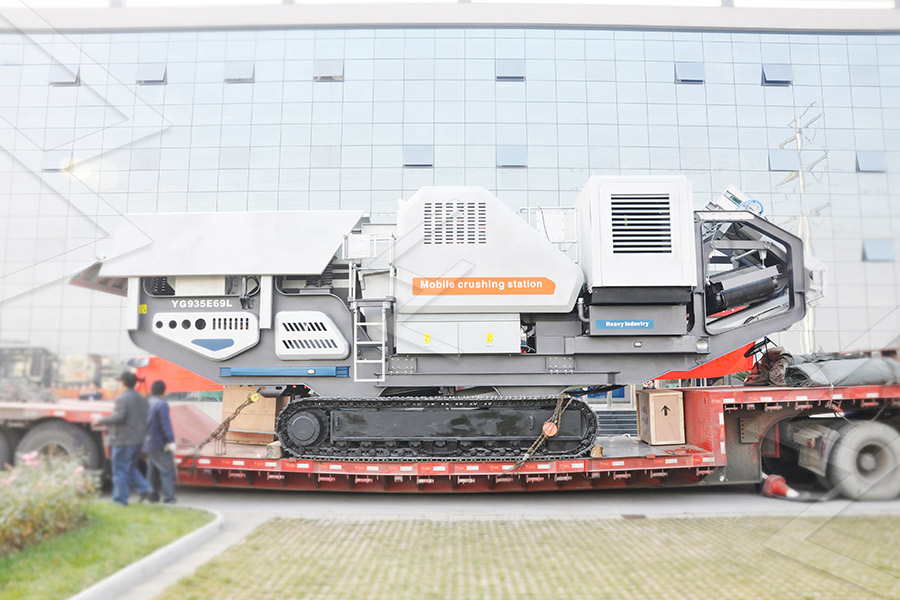

Maximizing Throughput and Efficiency: How Our Jaw Crusher Optimizes Processing Operations

The core objective of any primary crushing station is to reliably reduce large feed material at the highest possible throughput (TPH) while minimizing operational costs and unplanned downtime. Our jaw crusher is engineered from the ground up to meet this challenge through a synthesis of robust design, advanced materials, and intelligent kinematics.

Foundational Design for Sustained High Throughput
The crushing efficiency is dictated by the kinematics of the movable jaw. Our crusher utilizes an aggressive elliptical stroke pattern at the discharge, which accelerates material through the chamber and reduces the potential for choking. This is coupled with a deep, symmetrical crushing chamber design that maintains a consistent feed opening geometry throughout the wear life of the jaw dies, ensuring rated capacity is sustained longer than in non-symmetrical designs.

• Optimized Kinematics: The stroke profile maximizes the reduction ratio per cycle and promotes a "rock-on-rock" crushing action in the lower chamber, improving particle shape and reducing wear on the jaw plates themselves.
• Heavy-Duty Structural Integrity: The main frame is a stress-relieved, fabricated steel assembly, often utilizing high-yield-strength steel for critical sections. This ensures dimensional stability under high cyclic loading, protecting bearing alignments and gear tolerances.
• Precision Eccentric Shaft: A forged, heat-treated alloy steel eccentric shaft running in large-diameter, heavy-duty spherical roller bearings provides the high moment capacity needed to crush the hardest ores without deflection.

Material Science: The Defense Against Abrasion and Fatigue
The single greatest factor in long-term efficiency and cost-per-ton is the wear life of consumables. Our jaw dies are not generic manganese steel; they are application-engineered castings.

• Grade-Specific Manganese Steel (Mn14, Mn18, Mn22): We select the optimal austenitic manganese steel grade based on the abrasiveness and compressive strength of the feed material. Softer, more abrasive materials benefit from a lower manganese content (e.g., Mn14) which work-hardens more rapidly, while harder, more impact-oriented ores require the toughness of higher grades (e.g., Mn22).
• Proprietary Alloying & Heat Treatment: Micro-alloying elements (e.g., Chromium, Molybdenum) and controlled quenching and tempering processes are used to refine the austenitic grain structure. This enhances the work-hardening capability, allowing the surface to reach up to 550 Brinell hardness in service while retaining a shock-absorbing tough core.
• Modular & Reversible Design: Many jaw die profiles are designed to be reversible or rotated, effectively doubling wear life. Segmented or modular designs allow for partial replacement of the most heavily worn sections, reducing consumable costs.

Operational Adaptability and Control
Maximum throughput is only achievable if the crusher can adapt to variable feed conditions and be integrated into modern processing circuits.

• Hydraulic Toggle System (Optional): Replaces traditional mechanical toggle plates. Provides automated clearing of tramp metal and uncrushable material, protecting the crusher from costly damage. Allows for dynamic adjustment of the closed-side setting (CSS) under load for precise product size control.
• Integrated PLC & Automation Readiness: The crusher is prepared for integration with plant-wide control systems. Critical parameters like bearing temperature, lubrication pressure, and motor amperage can be monitored to enable predictive maintenance and optimize feed rates via interlocks with upstream equipment.

Technical Specifications & Compliance
Performance is quantified and guaranteed against international standards, ensuring reliability and safety.

Capacity is dependent on feed material density, hardness (Wi), and crushing chamber profile. Values are for granite (approx. 1.6 t/m³, Wi: 15-17).

• Standards Compliance: Full design and manufacturing compliance with ISO 21873 (Mobile crushers), CE marking for the European market (adhering to Machinery Directive 2006/42/EC), and critical components like bearings and motors are selected to global OEM standards.
• Mining-Specific USP: The design prioritizes accessibility for maintenance in confined spaces, with centralized grease lines for the toggle area and jacking points for die replacement. The robust construction is validated through Finite Element Analysis (FEA) for dynamic load cases specific to mining duty cycles.

Engineered for Extreme Loads: The Structural Integrity of Our Jaw Crusher in Demanding Environments

The core frame is a single-piece, high-integrity fabrication from quenched and tempered alloy steel (e.g., ASTM A514 Grade H), designed using Finite Element Analysis (FEA) to withstand cyclical fatigue loads exceeding 250 MPa. This monolithic design eliminates stress-concentrating weld joints in high-load zones, providing a predictable fatigue life that far exceeds industry-standard modular frames. The structure is certified to ISO 21873-1 for building construction machinery and ISO 9001 for quality management, ensuring dimensional stability and weld integrity under continuous, high-tonnage operation.

Critical wear components are defined by their material science:

• Jaw Plates: Fabricated from premium manganese steel (ASTM A128 Grade B-H, 12-18% Mn). The austenitic microstructure provides unparalleled work-hardening capability, increasing surface hardness from ~220 HB to over 500 HB in service, creating a wear-resistant surface that adapts to abrasive ores like granite, basalt, and iron ore.
• Eccentric Shaft: Forged from high-chromium alloy steel (e.g., AISI 4340 or equivalent), heat-treated to a core toughness of 250-300 HB and case-hardened bearing journals. This ensures resistance to torsional shear and bending moments, with precision grinding to ABEC-3 tolerance for optimal bearing life.
• Pitman & Toggle System: The pitman is a massive, stress-relieved steel casting. The toggle plate is a calculated shear element, engineered to fail under tramp metal overload, acting as a mechanical fuse to protect the main frame and drive components from catastrophic damage.

Key Structural & Performance Parameters

Operational integrity in demanding environments is ensured through:

• Adaptive Load Management: The kinematics of the crushing chamber are optimized for a variable feed. The nip angle and stroke are calibrated to maximize reduction ratio while minimizing wear, maintaining rated TPH capacity even with fluctuating ore hardness (up to 250 MPa compressive strength).
• Sealed Contamination Control: Labyrinth seals and pressurized grease-purge systems protect radial and thrust bearings from dust and slurry ingress, a critical USP for processing wet, sticky, or highly abrasive materials.
• Foundation Load Distribution: The base design incorporates integral load-spreading pads, calculated to distribute dynamic crushing forces evenly, eliminating point loading and preventing stress-related concrete fatigue in permanent installations.

Precision Crushing for Consistent Product Quality: Advanced Jaw Design and Control Systems

The core objective of primary crushing is not merely size reduction, but the generation of a consistent, well-graded feed for downstream processes. Precision in this stage is non-negotiable for optimizing mill throughput, reducing recirculating loads, and ensuring final product specification. This is achieved through synergistic advancements in mechanical design, metallurgy, and digital control.

Advanced Jaw Crusher Design & Metallurgical Foundation

Modern jaw crusher design is governed by finite element analysis (FEA) and dynamic simulation to optimize chamber geometry and kinematics. The focus is on creating an aggressive nip angle and a linear crushing action at the inlet to grip feed material immediately, followed by a progressive reduction down the chamber. This minimizes slabby or flaky product and ensures a more cubicle output.

The functional advantages of this evolved design include:

• Optimized Kinematics: A steeper toggle plate angle and an optimized eccentric shaft throw increase the speed of jaw closure at the bottom of the stroke. This actively promotes material discharge by gravity, preventing choke-points and significantly boosting throughput (TPH).
• Chamber Geometry: Computer-modeled chamber profiles ensure continuous compression throughout the crushing cycle, applying forces more evenly across the particle. This reduces wasteful "single-point" loading and associated stress concentrations on the crusher frame and jaws.
• Adaptability to Ore Characteristics: Adjustable crusher settings (CSS) are integrated with chamber designs that maintain performance across a range. For hard, abrasive ores (e.g., taconite, granite), a steeper chamber may be used; for softer, sticky materials, a less aggressive geometry prevents packing.

Material science is the critical enabler of this precision. Jaw plates are not generic "steel" but engineered wear parts.

• Manganese Steel (Mn14, Mn18, Mn22): The industry standard for its work-hardening capability. Under impact, the surface hardens to ~500 BHN while the core remains tough, providing exceptional resistance to abrasion and fatigue. Higher manganese grades (Mn22, Mn24) are specified for severe, high-impact applications.
• Alloy Composites & Hybrid Designs: For highly abrasive, low-impact conditions (e.g., silica-rich gravel), martensitic white iron alloys (e.g., T-400, with chromium carbides) are cast into critical wear zones within a manganese steel matrix. This provides a dramatic increase in wear life without compromising the structural integrity of the jaw.
• Profile Optimization: Wear part profiles are designed to maintain the intended chamber geometry throughout their life. This "constant performance" design ensures the product gradation curve remains stable from first to last ton, a key factor in consistent downstream processing.

Intelligent Control Systems for Operational Precision

Mechanical precision must be coupled with operational control. Modern systems move beyond simple start/stop to active process management.

Compliance with international standards (ISO 21873 for mobile crushers, ISO 9001 for quality management, CE marking for EU market safety) provides the foundational framework for reliability. However, the true USP in mining and aggregate processing is the demonstrable operational stability: the ability to hold a tight product curve at designed TPH rates while processing variable ore hardness (from 150 MPa to over 350 MPa compressive strength), directly translating to predictable and optimized plant performance.

Technical Specifications: Robust Components and Customizable Configurations for Your Processing Needs

Robust Components: Engineered for Demanding Service

The longevity and reliability of a jaw crusher are determined by the quality and design of its core components. Modern crushers are built around a heavy-duty, stress-relieved fabricated steel frame, providing a rigid foundation that withstands cyclical loading and high shock forces. The critical wear components are defined by advanced material science:

• Jaw Dies (Liners): Manufactured from high-grade manganese steel (typically 14-18% Mn), these liners are work-hardening. Under impact, their surface hardens to a martensitic structure, providing exceptional abrasion resistance while maintaining a tough, shock-absorbing core. Premium alloys may include chromium or molybdenum for enhanced wear life in highly abrasive or high-impact applications.
• Eccentric Shaft: Forged from high-strength alloy steel (e.g., 42CrMo4), heat-treated and precision-machined to exacting tolerances. It is engineered to handle the full torsional and bending stresses of the crushing process.
• Bearings: Utilize large-diameter, heavy-duty spherical roller bearings with high static and dynamic load ratings. These are selected specifically for their ability to manage both radial and axial loads, ensuring smooth operation and extended service intervals.
• Toggle Plate & Seats: Act as a safety mechanism. The toggle plate is typically cast from cast iron or alloy steel, designed to fracture under extreme overload conditions (e.g., tramp metal), protecting the crusher from catastrophic damage.

Compliance with international standards such as ISO 21873 (mobile crushers) and CE marking for the European market is a baseline, not a premium feature. It ensures design integrity, safety protocols, and manufacturing consistency.

Configurable Parameters for Process Optimization

A jaw crusher is not an off-the-shelf product. Its configuration must be matched to the feed material's characteristics (abrasiveness, compressive strength, moisture content) and the plant's production goals. Key customizable variables include:

• Crusher Chamber Geometry: The nip angle (angle between the fixed and moving jaw) and the liner profile are optimized for the application. A steeper angle promotes a more aggressive bite and higher reduction ratio for hard, blocky ore, while a shallower angle improves throughput and reduces wear for less abrasive, softer materials.
• Drive System & Flywheel Mass: The selection of motor power (kW) and the calculated inertia of the flywheels are critical for maintaining consistent crushing momentum, ensuring efficient energy use and preventing bogging under peak loads.
• Discharge Setting Adjustment: Modern systems utilize hydraulic shims or wedge adjustment for quick and precise control of the closed-side setting (CSS), the minimum gap between the jaws at the discharge point. This is the primary determinant of product size gradation.
• Feed Opening & Capacity: The gape (width of the feed opening) and depth of the chamber define the maximum feed size and potential throughput (TPH). Capacity is not a fixed number but a range dependent on CSS, material density, and crushability.

Functional Advantages of a Well-Specified Crusher

• Maximized Uptime: Strategic use of premium wear materials and accessible component design drastically reduces maintenance frequency and duration.
• Adaptive Crushing: Adjustable kinematics and liner profiles allow a single machine to process a variety of ore types throughout a mine's life cycle.
• Predictable Output: Precise control over CSS and a stable crushing motion ensure a consistent product size, improving downstream process efficiency.
• Optimized Cost-per-Ton: The correct balance of initial component specification and operational configuration yields the lowest long-term operating cost.

Representative Configuration Table

The following table illustrates how core specifications are tailored to different processing needs. Capacities are indicative and vary with material characteristics and crusher settings.

*Capacity is highly dependent on closed-side setting, material density, and feed gradation.

Proven Reliability in Industrial Applications: Case Studies and Performance Data

Case Study 1: High-Abrasion Iron Ore Processing, Pilbara Region, Australia

Application: Primary crushing of banded iron formations (BIF) with unconfined compressive strength (UCS) averaging 250 MPa and high silica content (abrasion index >0.5).
Crusher Specification: Heavy-duty, single-toggle jaw crusher with a 48" x 60" feed opening. Fabricated from modified ASTM A128 Grade B-3 (Mn-steel) jaws (14-18% Mn) with a work-hardening microstructure to withstand extreme gouging abrasion.
Performance Data (12-Month Operational Review):

• Throughput: Consistently maintained 1,100 - 1,250 TPH of -8" product, meeting plant feed requirements.
• Wear Life: Jaw plate service life extended to 1.8 million metric tons before requiring rotation/replacement, a 22% improvement over previous OEM parts.
• Availability: Achieved 96.7% mechanical availability, with downtime primarily scheduled for planned liner inspections.

Key Functional Advantages Demonstrated:

• Material Adaptability: The crusher's kinematics and high inertia flywheels handled the variable hardness (from friable shale bands to massive hematite) without stalling or excessive power spikes.
• Structural Integrity: The fabricated steel frame, designed per ISO 21873-1 for building construction machinery, showed no fatigue cracking under peak loads exceeding 450 tonnes.
• Maintenance Efficiency: The hydraulic toggle adjustment system enabled closed-side setting (CSS) changes in under 20 minutes, minimizing production losses during product size adjustments.

Case Study 2: Recycled Concrete & Demolition Waste Aggregates Plant, EU

Application: Primary and secondary crushing of mixed C&D waste, including reinforced concrete, asphalt, and occasional tramp metal.
Crusher Specification: Two-stage setup: Primary - 42" x 30" robust jaw crusher; Secondary - 30" x 20% finer jaw crusher. Both equipped with martensitic alloy steel (400-500 BHN) cheek plates for impact resistance and automatic lubrication systems certified to CE/2006/42/EC.
Performance Data (Audit Period: 5,000 Operational Hours):

• Contamination Tolerance: Successfully processed material with up to 8% mild steel reinforcement by weight, with the crusher's overload protection (toggle beam system) activating 4 times without incident.
• Product Consistency: Secondary crusher maintained a CSS of 75mm ±5mm, producing a consistent -100mm aggregate for final screening, with less than 5% oversize.
• Operational Cost: Wear cost per tonne processed was €0.085, inclusive of jaw dies, side liners, and routine mechanical maintenance.

Key Functional Advantages Demonstrated:

• Tramp Iron Protection: The non-welded, cast steel toggle beam acted as a reliable mechanical fuse, protecting the main frame and bearings from uncrushable objects more effectively than electronic protection alone.
• Dust & Noise Mitigation: Integral, rubber-sealed dust skirts and sound-dampening enclosures maintained particulate and noise levels within EU Directive thresholds without impeding access.
• Gradation Control: The ability to quickly adjust the CSS on both primaries and secondaries allowed the plant to switch between producing a 0-40mm base layer product and a 40-100mm drainage layer product within a single shift.

Aggregate Performance Benchmarks

The following table summarizes key performance parameters from long-term installations across different material classes, illustrating operational envelopes and reliability metrics.

Engineering Analysis of Reliability:
The consistent performance across these diverse applications is rooted in core design principles:

• Bearing & Load Path: Spherical roller bearings on the eccentric shaft, sized for L10 life exceeding 30,000 hours under rated load, ensure longevity. The deep crushing chamber and optimized nip angle create an efficient compressive force vector directly into the main frame.
• Kinematic Efficiency: The high stroke and aggressive toggle angle of modern geometries increase the capacity per unit of installed power by 15-20% compared to decades-old designs, while reducing cyclical loading on components.
• Standardization & Serviceability: Adherence to ISO 13309 for test methods and ISO 21873-2 for safety ensures component interchangeability and predictable wear patterns. Standardized modular components (e.g., pitman assemblies, bearing cartridges) reduce mean time to repair (MTTR).

Streamline Your Investment: Warranty, Support, and Easy Maintenance Solutions

A robust warranty and support framework is not an after-sale service but a fundamental component of your plant's operational risk management and total cost of ownership. This section details the engineered solutions and commitments that protect your capital investment.

Engineered for Endurance: The Warranty as a Material Guarantee

Our warranty terms are a direct reflection of the material science and manufacturing integrity built into the crusher. Coverage is explicitly defined by component metallurgy and application.

• Wear Parts Warranty: Covers jaw plates, cheek plates, and toggle plates against premature failure. This is not a blanket guarantee but is based on certified material grades (e.g., 18% Manganese steel with work-hardening properties, or premium alloys for highly abrasive ores). Warranty validation is contingent upon documented feed material analysis (e.g., SiO2 content, Abrasion Index) matching the specified alloy selection.
• Major Component Warranty: Covers the main frame, pitman, and eccentric shaft against defects in material and workmanship. The frame warranty is underpinned by Finite Element Analysis (FEA) validation and the use of high-tensile, low-alloy steel plates.
• Exclusions & Clarity: Warranty does not cover wear from improper feed (e.g., tramp steel exceeding magnetic separator capacity), operation outside designed capacity (TPH), or the use of non-OEM wear parts which alter stress distributions and kinematics.

Technical Support: From Commissioning to Optimization

Our support is an extension of the engineering process, delivered by personnel with processing plant experience.

• Commissioning & Training: On-site commissioning includes volumetric load analysis of the crushing chamber, verification of discharge setting versus product gradation, and dynamic vibration profiling. Operator training focuses on the cause-and-effect relationship between feed control, power draw, and liner wear life.
• Remote Diagnostics & Data Integration: Modern crushers with PLC controls allow for secure remote access. Support engineers can analyze real-time data (hydraulic pressure, bearing temperature, motor amperage) to diagnose issues like packing, uneven wear, or cavitation, often resolving them before unplanned downtime occurs.
• Wear Life Optimization: Beyond replacement, we provide periodic wear pattern analysis. Asymmetric jaw plate wear or excessive lower cheek plate wear are indicators of feed and setting issues. We provide actionable reports to adjust operational parameters and extend mean time between failures (MTBF).

Maintenance Solutions Designed for Availability

The maintenance philosophy is centered on maximizing crusher availability (uptime) and standardizing procedures to reduce human error and service time.

Key Takeaway for Plant Managers: The true value of these solutions is quantified in Cost Per Ton (CPT). Selecting a crusher with these integrated support and maintenance features directly reduces CPT by extending wear life, minimizing unplanned downtime, and standardizing safe, efficient service procedures. Always request a lifecycle cost analysis based on your specific ore characteristics and target throughput.

Frequently Asked Questions

What is the optimal replacement cycle for jaw crusher wear parts?

Monitor jaw plate wear via regular gap measurement. High-manganese steel (e.g., ASTM A128 Grade B3) plates typically last 200-500 hours, depending on abrasiveness. Replace when wear exceeds 60% of original thickness to prevent damage to the crusher frame and ensure consistent product size.

How do I adapt a jaw crusher for varying ore hardness (e.g., 4 vs. 7 on Mohs scale)?

Adjust the closed-side setting (CSS) and feed rate. For harder ores (Mohs 7), reduce CSS and feed size, and ensure use of through-hardened or alloy steel plates. For softer material, a wider CSS increases throughput. Always verify the crusher's motor amperage does not exceed rated load.

What are best practices for controlling excessive vibration in a jaw crusher?

Ensure proper installation on a reinforced concrete foundation. Check for unbalanced flywheels, worn toggle plates, and severe jaw plate wear. Use laser alignment for the motor and V-belts. Persistent vibration often indicates failed or misaligned bearings (e.g., SKF or FAG spherical roller bearings).

What lubrication specifications are critical for jaw crusher bearings?

Use high-viscosity, extreme-pressure grease (NLGI 2 or 3). Lubricate bearings (typically spherical roller type) every 8 hours of operation. Monitor bearing temperature; sustained operation above 80°C degrades grease. Ensure seals are intact to prevent contamination from dust and moisture.

How does tramp metal affect a jaw crusher, and how is it mitigated?

Tramp metal causes catastrophic damage to jaw plates, wedges, and the main frame. Implement a two-stage protection: a primary electromagnetic separator on the feed conveyor and a hydraulic or mechanical toggle release system set to a specific pressure (e.g., 200-250 bar) to open the jaw during an uncrushable event.

Why is the product gradation inconsistent, and how can it be stabilized?

Inconsistent output often stems from a worn or incorrectly set CSS, uneven feed distribution (segregation), or varying ore hardness. Stabilize by checking and adjusting CSS daily with crusher stopped, using a level-distributing feeder, and implementing consistent, well-sized feed material (scalping oversize).
