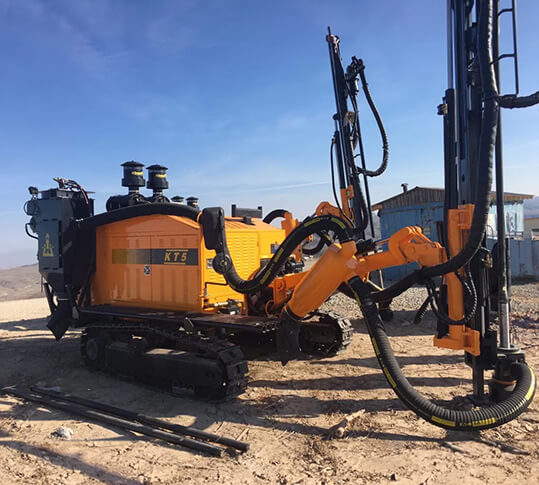

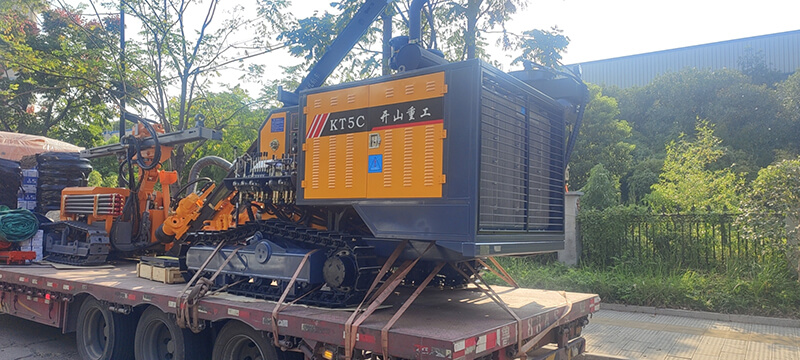

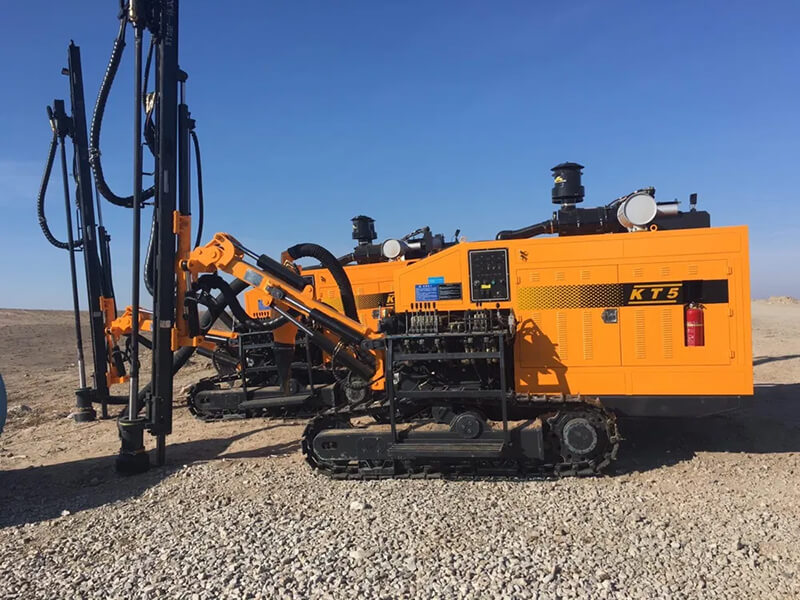

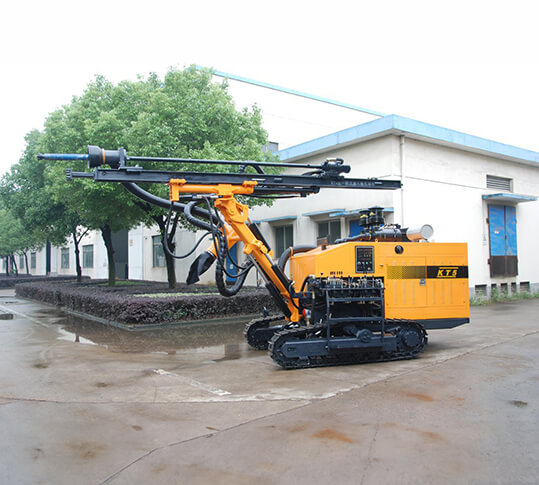

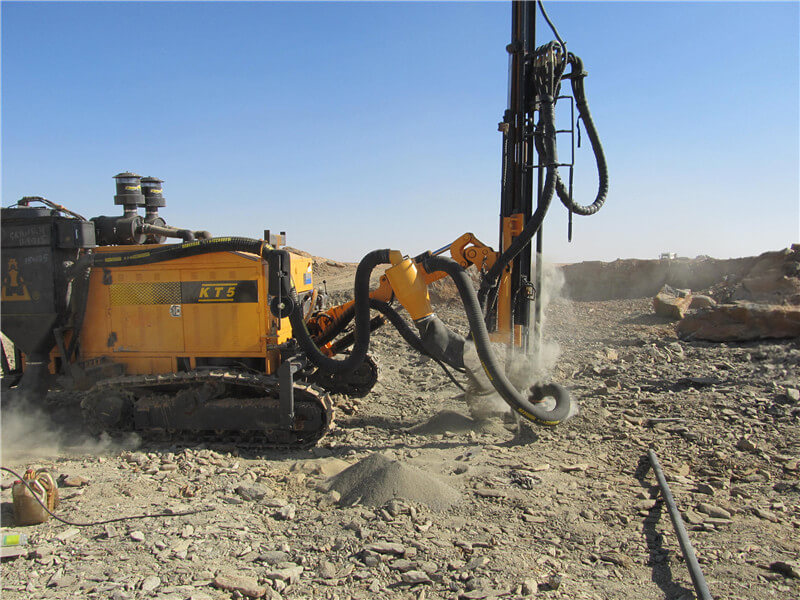

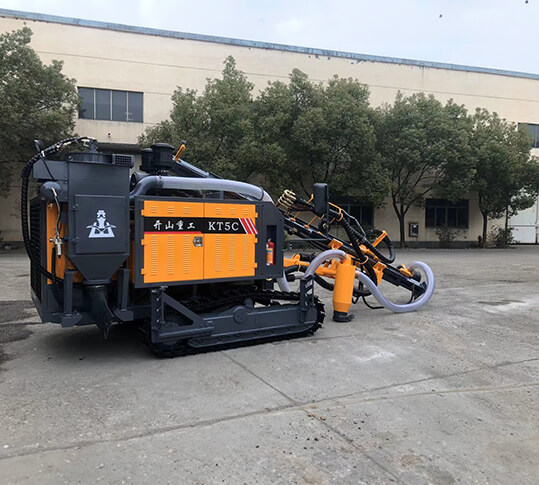

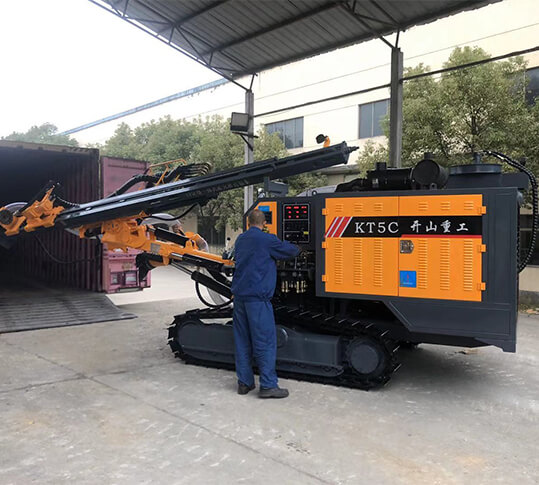

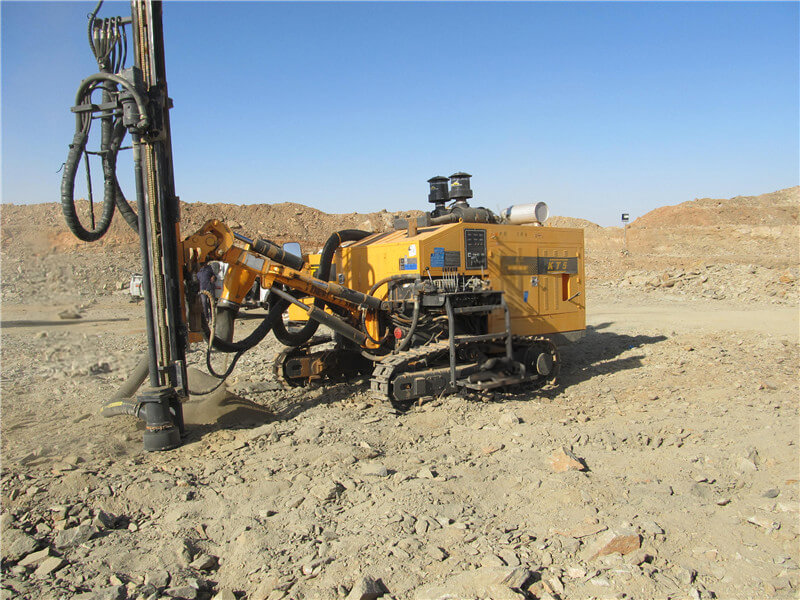

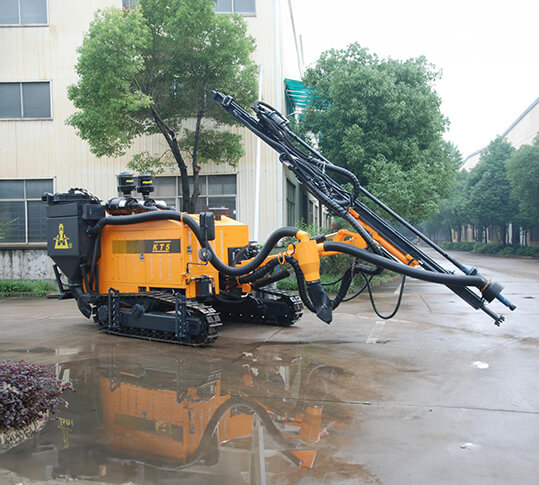

The KT5C Integrated down the hole drill rig for open use is an advanced drilling device integrating the down the hole drilling system and screw air compressor system, characterized by compact structure, excellent integrity and mobility.
Equipped with the Yuchai China stage III Engine, the drill rig meets national standards for emissions and environment. It is typical of energy conservation, efficiency, safety, environment-friendliness, flexibility, simple operation and stable performance, etc.
| Model of drill rig | KT5C |
| Drilling hardness | f=6-20 |
| Drilling diameter | 80-105 mm |
| Depth of economical drilling | 25 m |
| Travelling speed | 2.5/4.0 km/h |
| Climbing capacity | 30° |
| Ground clearance | 430 mm |
| Power of complete machine | 162 kW /2200r/min |
| Diesel engine | Yuchai YC6J220-T303 |
| Capacity of screw compressor | 12 m³/min |
| Discharge pressure of screw compressor | 15 bar |
| Outer dimensions (L×W×H) | 7800×2300×2500 mm |
| Weight | 8000 kg |
| Rotation speed of gyrator | 0-120 r/min |
| Rotary torque | 1680 N*m(Max) |
| Maximum push-pull force | 25000 N |
| Lifting angle of drill boom | Up 54°, down 26° |
| Tilt angle of beam | 125° |
| Swing angle of carriage | Right 47 °, left 47° |
| Lateral horizontal swing angle of carriage | Right 415°, left 97° |
| Swing angel of drill boom | Right 53°, left 15° |
| Leveling angle of frame | Up 10°, down 9° |
| One-time advance length | 3000 mm |
| Compensation length | 900 mm |
| DTH hammer | M3 |
| Drilling rod | φ64×3000 mm |
| Method of dust collecting | Dry type (hydraulic cyclonic laminar flow) |
