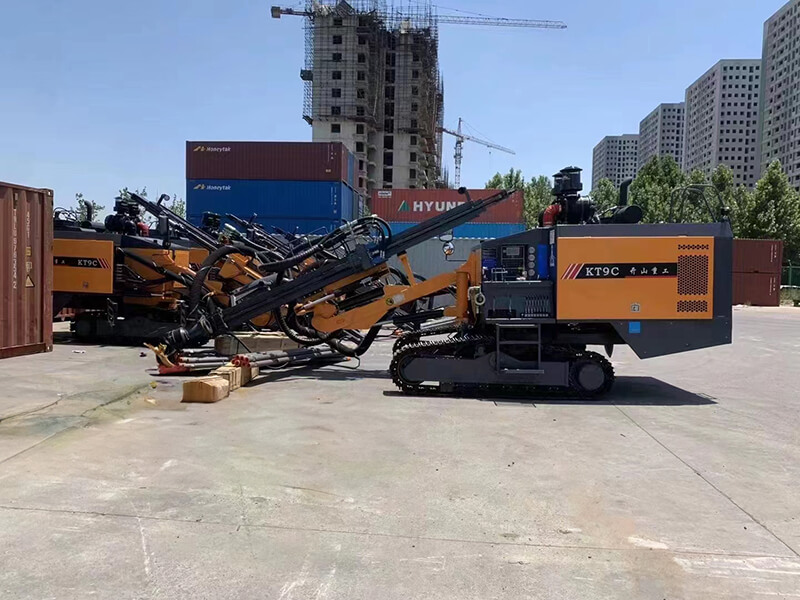

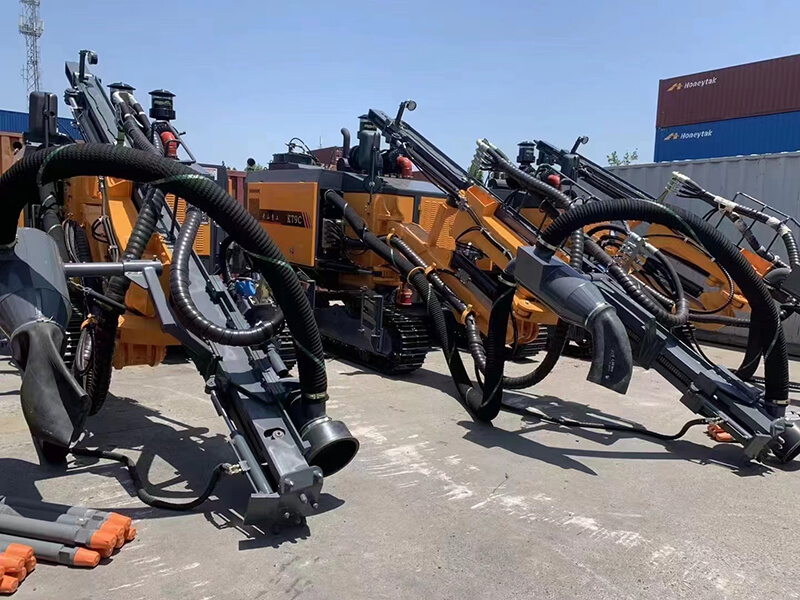

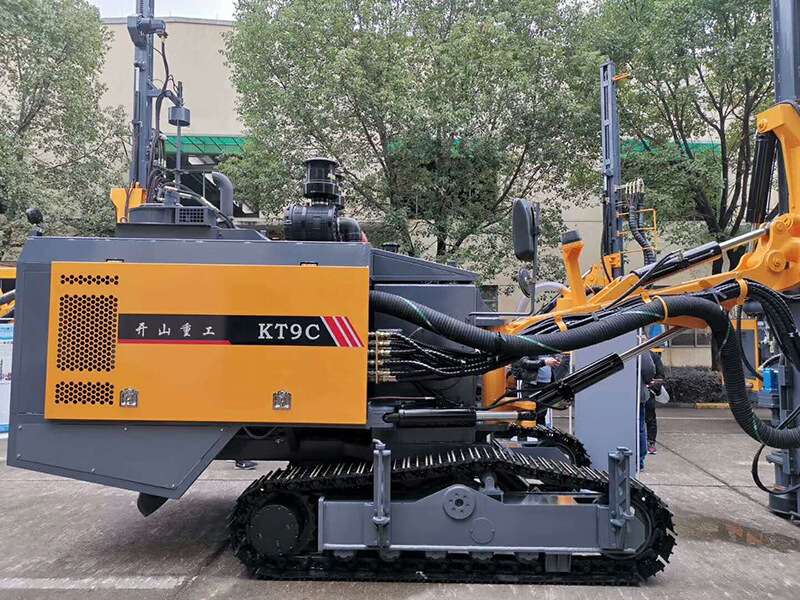

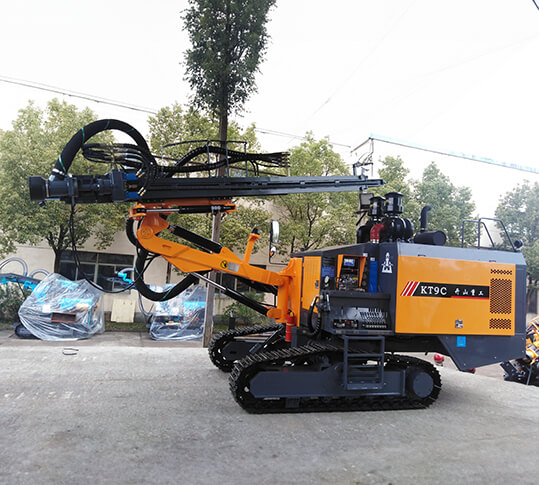

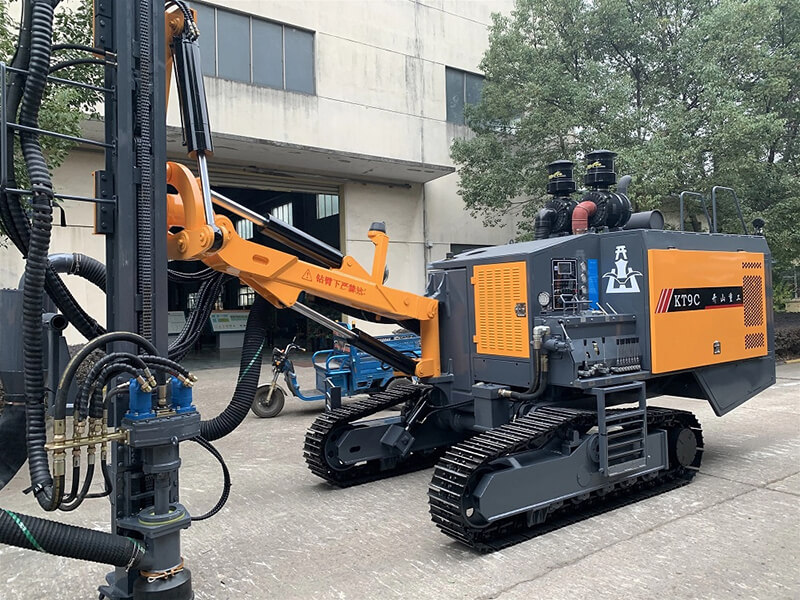

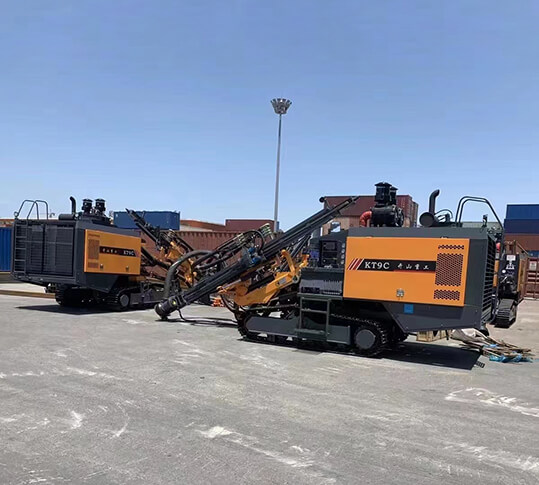

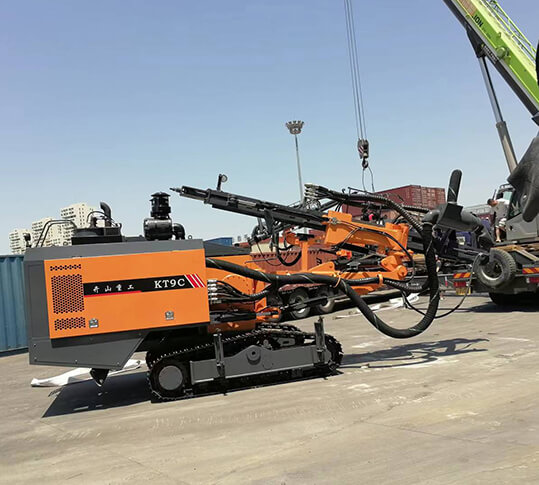

The KT9C integrated down the hole drill rig for open use is an advanced drilling device integrating the down the hole drilling system and screw air compressor system. It is capable of drilling vertical,inclined and horizontal holes, mainly used for open-pit mine,stonework blast holes and pre-splitting holes.
Features
Equipped with the Cummins China stage 3 engine and efficient dust collection system,the drill rig meets national standards for emissions and environment.It is typical of energy conservation,efficiency,safety,environment-friendliness,flexibility,simple operation and stable performance,etc.
Technical Parameters
Technical Parameters
Drilling hardness
f=6-20
Drilling diameter
φ100-125mm
Depth of economical drilling
21m
Travelling speed
2.5/4 km/h
Climbing capacity
25º
Ground clearance
430mm
Power of complete machine
194 kW/2200r/min 205 kW/2200r/min
Diesel engine(choose)
Cummins QSC8.3-C260-30/ Yuchai YCA08280-T300
Capacity of screw compressor
17m³/min
Discharge pressure of screw compressor
17bar
Outer dimensions(L*W*H)
8150*2260*2950/3200mm
Weight
12000kg
Rotation speed of gyrator
0-120r/min
Rotary torque(Max)
2800 N*M (Max)
Maximum push-pull force
32KN
Lifting angle of drill boom
Up57º,Down20º
Tilt angle of beam
114º
Swing angel of carriage
Right 35º,Left95º.
Swing angle of drill boom
Right 18º,Left50º.
Leveling angle of frame
±10º
One-time advance length
3490mm
Compensation length
900mm
DTH hammer
K40
Drilling rod
76*3000mm
Method of dust collecting
Dry type(hydraulic cyclonic laminar flow)
