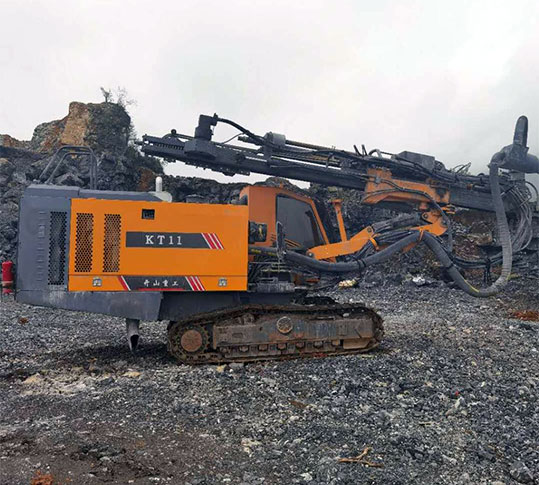

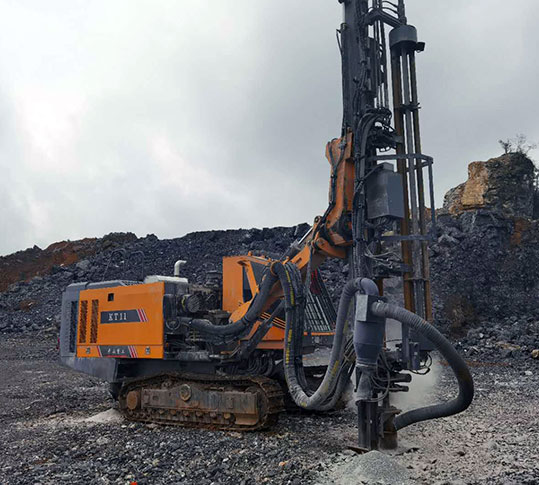

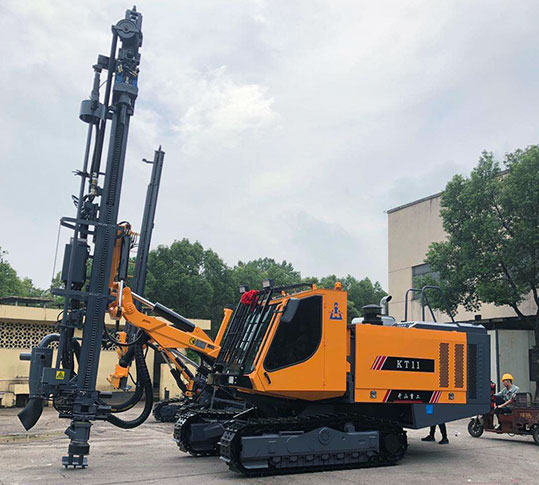

KT11 Integrated Down the hole Drill Rig

Applications

The KT11 integrated down the hole drill rig for open use can drilling vertical,inclined and horizontal holes.mainly used for open-pit mine,stonework blast holes and pre-splitting holes.It is driven by the Cummins China stage3 diesel engine and the two-terminal output can drive the screw compression system and hydraulic transmission system.

The drill rig is equipped with the automatic rod handling system.drill pipe floating joint module, drill pipe lubrication module, drill pipe sticking prevention system, hydraulic dry dust collection system,air conditioning cab,etc,optional drilling angle and depth indication function.The drill rig is characterized by excellent integrity,high automation,efficient drilling, environment-friendliness,energy conservation,simple operation,flexibility and travelling safety,etc.

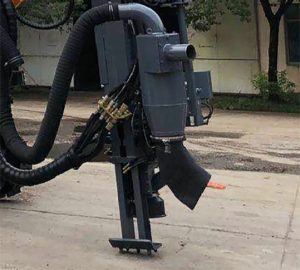

• High Efficient Dust Collecting System

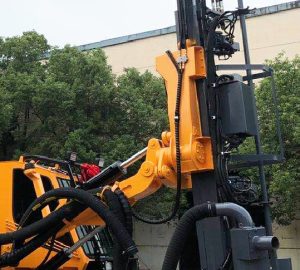

• Good hydraulic system

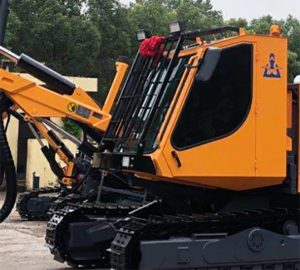

• Safe & Comfortable Cab

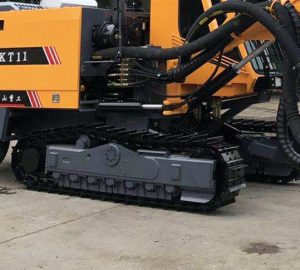

• High Quality Walking Track





Technical Parameters
