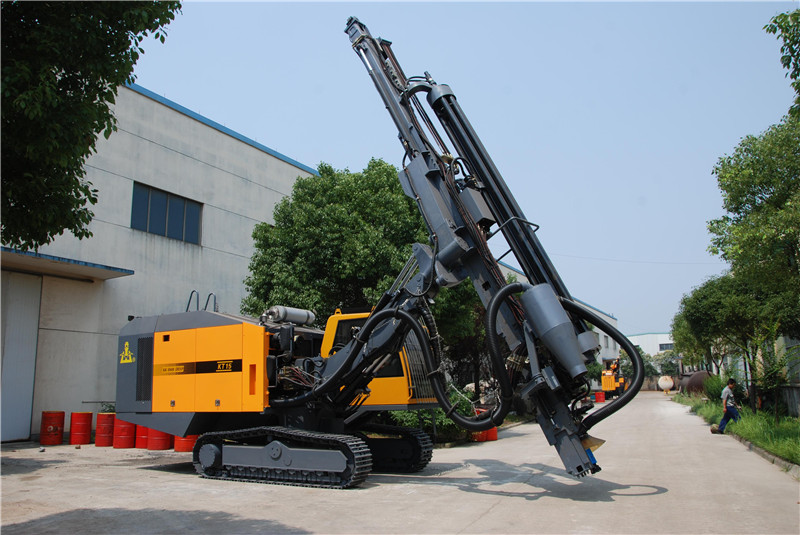

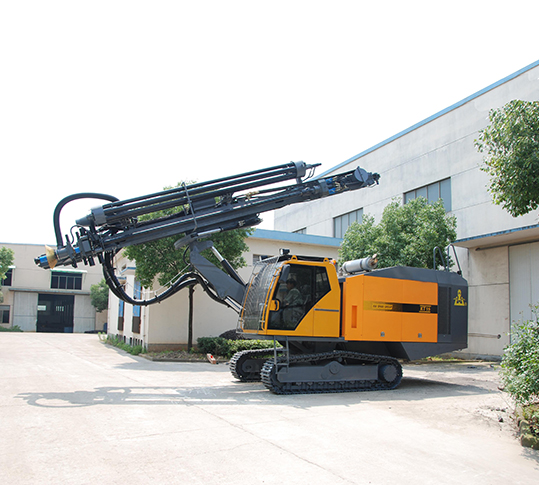

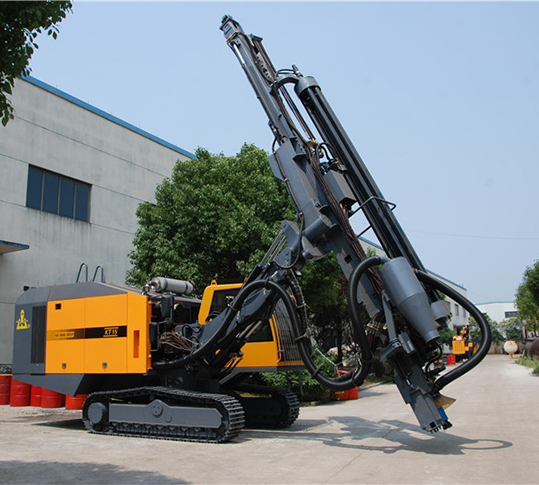

KT15 Integrated Down the hole Drill Rig

Applications

The KT15 integrated down the hole drill rig for open use is a new drilling device developed by our company after years of development and production of down the hole drill rig to meet the needs of large open-pit mines. Its travelling, feed, rotation and angle adjustments are based on hydraulic drive, thereby proving its powerfulness.

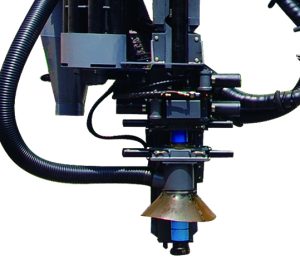

The high air-pressure screw nose and high air-pressure pneumatic impactor contribute to efficient drilling. It is equipped with the dry hydraulic dust collector, thus reducing pollution. The hydraulic mechanism is used to dismount the drilling rod, the floating joint to protect the thread of drilling rod, the automatic unloading rod device to relieve labor intensity, the air-conditioned cab provides comfortable space and the anti-jamming valve with automatic control reduces the possibility of sticking. And what is more, the drill rig is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness,energy conservation, simple operation, flexibility and travelling safety, etc.

• High torque gyrato

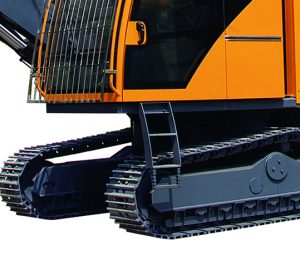

• High Quality Walking Track




• Good hydraulic system

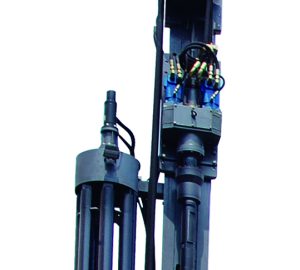

• Automatic rod handling system





Technical Parameters
