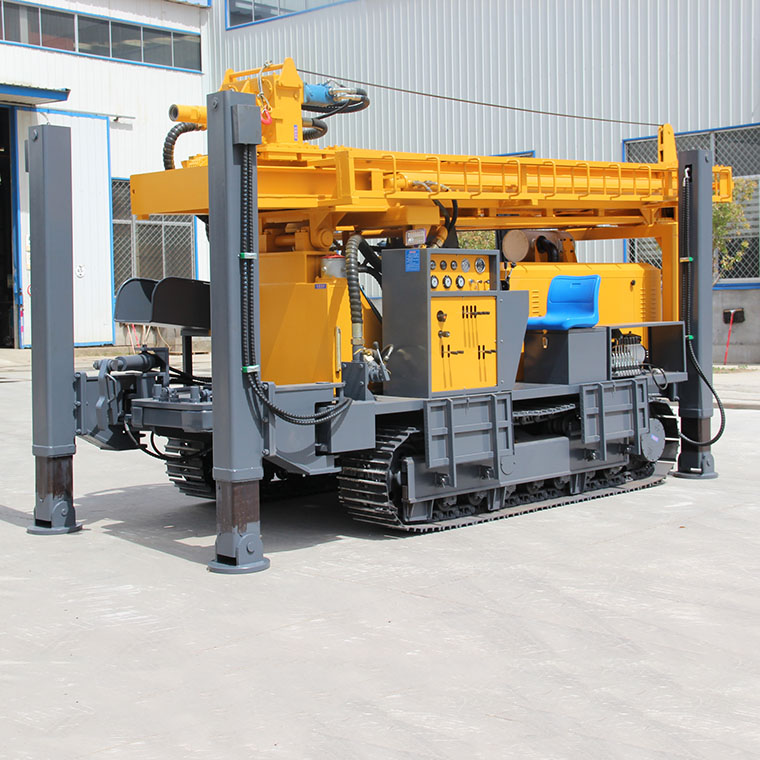

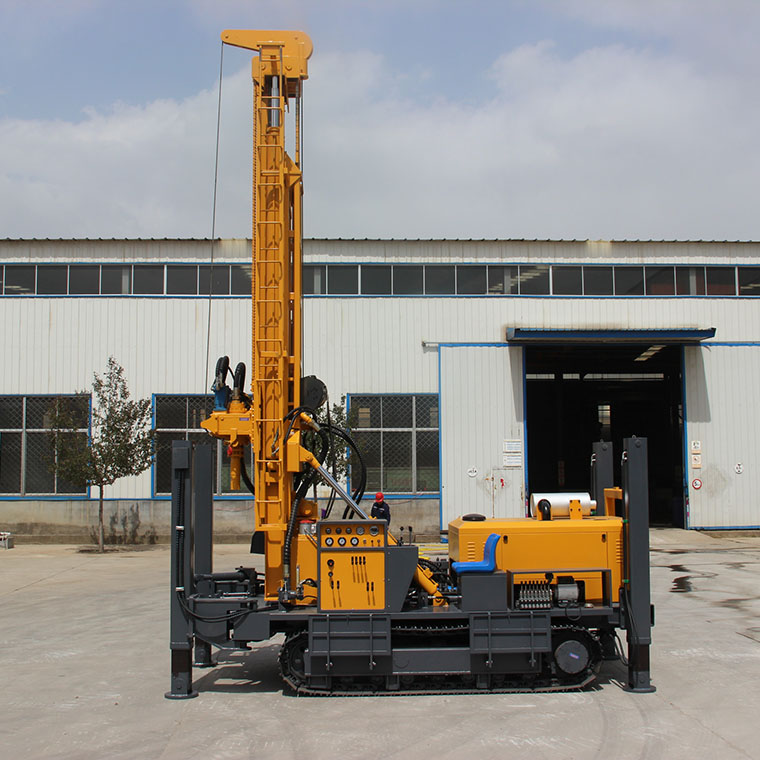

FY580 Crawler Water Well Drilling Rig

INQUIRY Email Contact Email Contact

FY580 Crawler water well drilling rig features:

1. FY580 series water well drilling rig adopts full hydraulic control, the top drive drives the drilling tool to rotate, and the drilling efficiency is high.
2. Using Cummins 132kw generator, strong power and long service life. Oil pump imported from Italy, 3 oil pumps
3. The overall layout is reasonable, and the traction or all-ground chassis is used for transportation, with good maneuverability.
4. It is very flexible on difficult roads, and can be widely used in hydrological well resource exploration, coalbed methane, shallow shale gas, geothermal and other fields, and can also be used in coal mine gas mining and salvage work.
5. The main shaft of the top-mounted drive head has a large diameter, which is suitable for various construction operations such as mud drilling, air drilling, and air foam drilling, and meets the drilling needs of different formations.
6. The independent heat dissipation dual system adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. long engine life
7. Dual system: 1. Air power system with air compressor 2. Mud pump system with mud pump

FY 580 crawler water well drilling rig
The weight（T）	12	Drill pipe diameter（mm）	Φ102 Φ108 Φ114
The hole diameter（mm）	140-350	Drill pipe length（m）	1.5m 2.0m 3.0m 6.0m
Drilling depth（m）	580	Rig lifting force（T）	28
One-time advance length（m）	6.6	Rapid rise speed（m/min）	20
Walking speed（km/h）	2.5	Fast feeding speed（m/min）	40
Climbing angles（Max.）	30	Width of loading（m）	2.85
Equipped capacitor（kw）	132	Hoisting force of winch（T）	2
Using air pressure（MPA）	1.7-3.5	Swing torque（N.m）	8500-11000
Air consumption（m³/min）	17-42	Dimension（mm）	6200×2200×2650
Swing speed（rpm）	45-140	Equipped with hammer	Medium and high wind pressure series
The penetration efficiency（m/h）	15-35	High leg stroke（m）	1.7
The engine brand	Cummins engine
