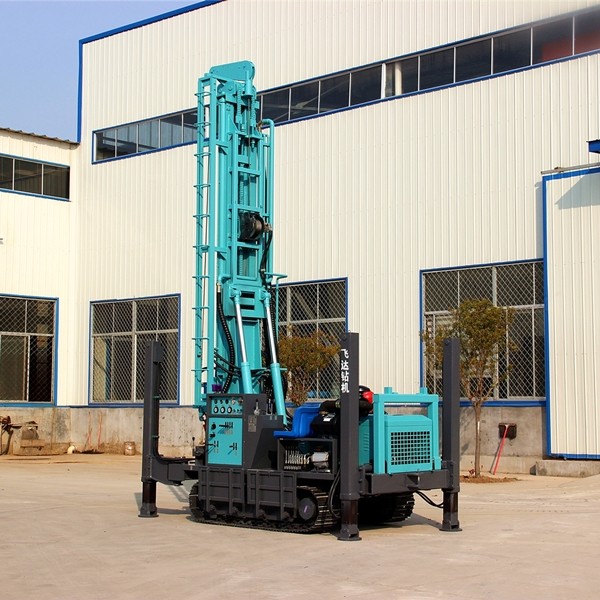

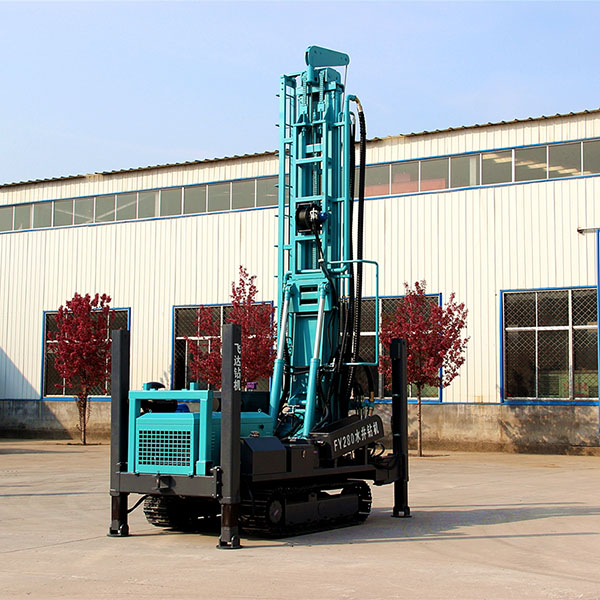

FY280 Crawler Water Well Drilling Rig

FY280 Crawler water well drilling rig features:

• 1. Equipped with a 75KW Yuchai brand turbocharged engine with strong power;
• 2. The patented design of the composite tower, the stroke is 6.6 meters, the double oil cylinder lifts, and the tonnage is large
• 3. The main arm of each drilling rig is equipped with a block to protect the oil cylinder;
• 4. Drilling rig chassis: professional excavator chassis, durable, strong bearing capacity, wide chain plate, less damage to hard roads.
• 5. Parallel gearbox design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, Simple maintenance and low cost
• 6. The walking motor has a reducer, which is durable and has a long service life;
• 7. Quick distribution valve: the speed of the third gear can reach 150-160 rpm, which basically realizes the dual-purpose function of water and gas
• 8. Each hydraulic hose is covered with a soft management kit for longer hose life.
• 9. The power of the drilling rig is driven by a diesel engine. The rig walks, rotates, pushes, lifts, outriggers and unloads.The levers are all hydraulically controlled.
• 10. The drilling rig walks with a crawler-type self-structure, which is convenient to move. Its steel tracked chassis, It's easy to walk around town and in the yard and doesn't damage the ground easily.
• 11. High-strength hydraulic outriggers can adjust the level of the drilling rig quickly and stably, and are conveniet for loading and unloading.
• 12. Special wellhead setting provides a certain drilling center to ensure vertical drilling positioning accuracy.
• 13. The mechanical positioning of the trolley and the frame improves the stability of the trolley
• 14. The pneumatic system has a customized oiler to lubricate the impactor, which effectively increases the service life of the impactor.
• 15. Dual systems can be installed: 1. Pneumatic power system with air compressor 2. Mud pump system with mud pump
