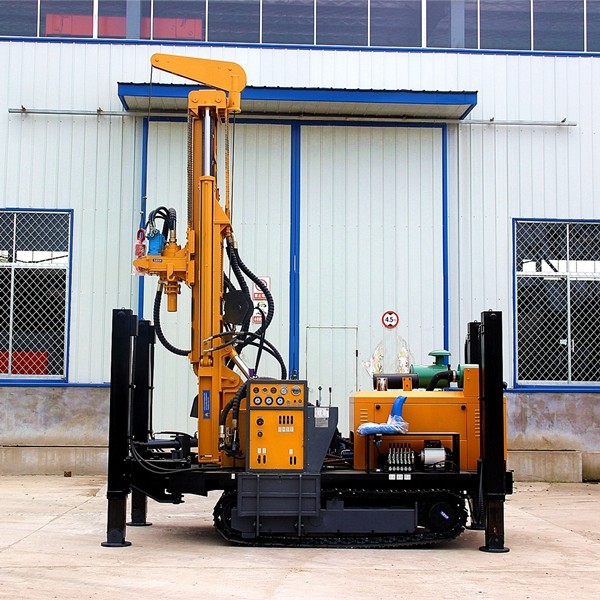

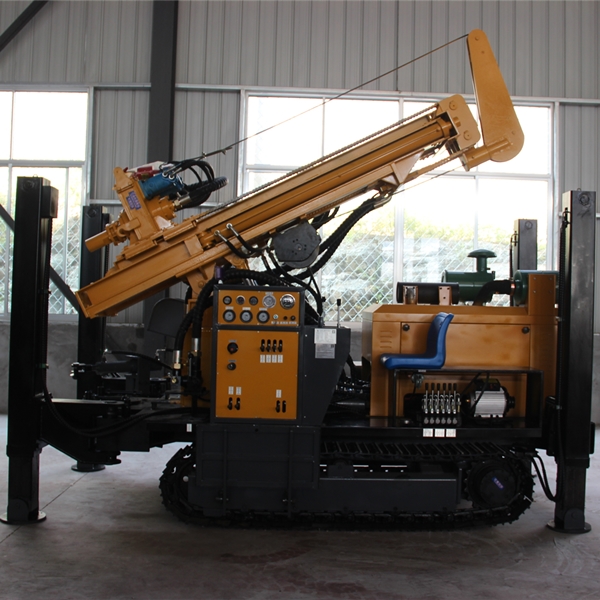

FY260 Crawler Water Well Drilling Rig

INQUIRY Email Contact Email Contact

FY260 Crawler water well drilling rig features:

1. The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life;
2. The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost;
3. It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface;
4. Each hydraulic oil pipe is covered with a thick protective sleeve, which makes the oil pipe have a longer service life;
5. Dual systems can be installed: 1. Air power system with air compressor 2. Mud pump system with mud pump

FY 260 crawler water well drilling rig
The weight（T）	6.5	Drill pipe diameter（mm）	Φ76 Φ89
The hole diameter（mm）	140-305	Drill pipe length（m）	1.5m 2.0m 3.0m
Drilling depth（m）	260	Rig lifting force（T）	15
One-time advance length（m）	3.3	Rapid rise speed（m/min）	24
Walking speed（km/h）	2.5	Fast feeding speed（m/min）	28
Climbing angles（Max.）	30	Width of loading（m）	2.73
Equipped capacitor（kw）	70	Hoisting force of winch（T）	1.5
Using air pressure（MPA）	1.7-3.0	Swing torque（N.m）	4000-5300
Air consumption（m³/min）	17-31	Dimension（mm）	4000×1850×2300
Swing speed（rpm）	45-70	Equipped with hammer	Medium and high wind pressure series
The penetration efficiency（m/h）	10-35	High leg stroke（m）	1.4
The engine brand	Xichai engine
