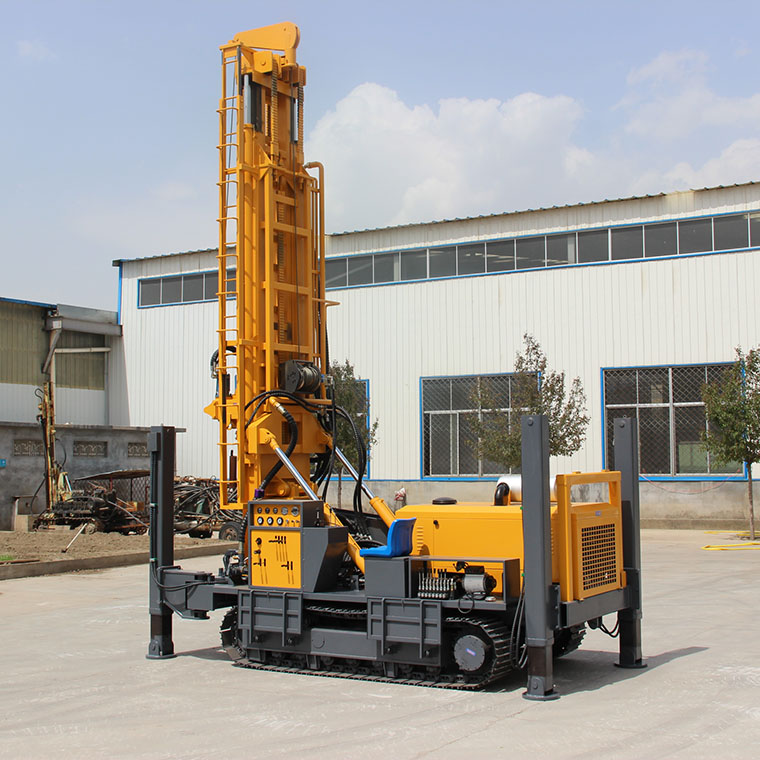

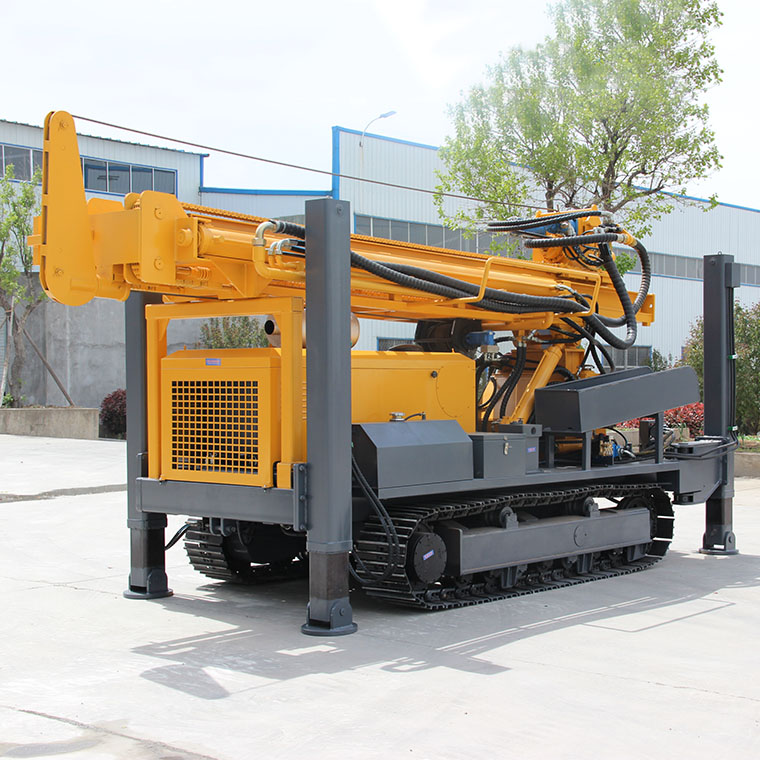

FY680 Crawler Water Well Drilling Rig

INQUIRY Email Contact Email Contact

Water and gas dual-purpose crawler type 680 meters deep water drilling rig

FY680 Crawler water well drilling rig features

1. Equipped with 153KW Cummins brand six-cylinder turbocharged engine with strong power and long service life;
2. Patented design compound boom, double oil cylinder lift, strengthen the tower;
3. (Italy imported oil pump) 3 oil pumps, equipped with foam pump, winch, multi-function generator, front outrigger swing arm oil cylinder;
4. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
5. The diameter of the hole is large, the hole is deep, and the advancing speed is fast.
6. Drilling rig chassis: Reinforced steel crawler, large chassis, strong and durable, heavy bearing, wide chain plate, large tonnage.
7. Parallel transmission design, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
8. The independent heat dissipation dual system adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. long engine life.
9. Dual system: 1. Air power system with air compressor 2. Mud pump system with mud pump

FY 680 crawler water well drilling rig
The weight（T）	13	Drill pipe diameter（mm）	Φ102 Φ108 Φ114
The hole diameter（mm）	140-400	Drill pipe length（m）	1.5m 2.0m 3.0m 6.0m
Drilling depth（m）	680	Rig lifting force（T）	30
One-time advance length（m）	6.6	Rapid rise speed（m/min）	20
Walking speed（km/h）	2.5	Fast feeding speed（m/min）	40
Climbing angles（Max.）	30	Width of loading（m）	2.95
Equipped capacitor（kw）	153	Hoisting force of winch（T）	2
Using air pressure（MPA）	1.7-3.5	Swing torque（N.m）	8850-13150
Air consumption（m³/min）	17-42	Dimension（mm）	6300×2300×2650
Swing speed（rpm）	45-140	Equipped with hammer	Medium and high wind pressure series
The penetration efficiency（m/h）	15-35	High leg stroke（m）	1.7
The engine brand	Cummins engine
