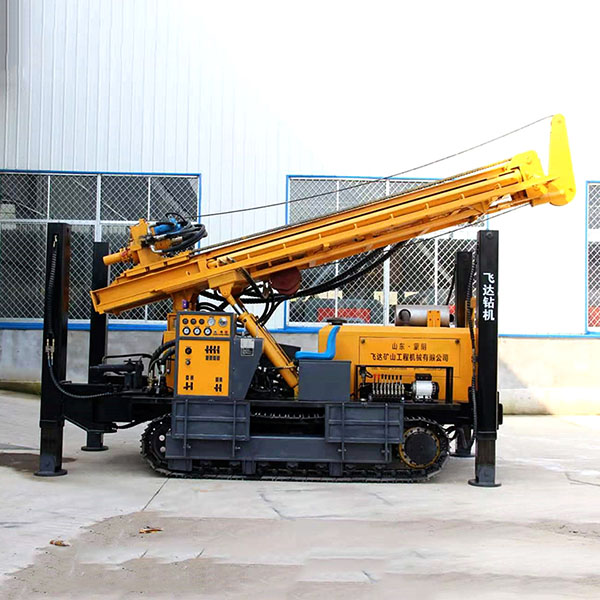

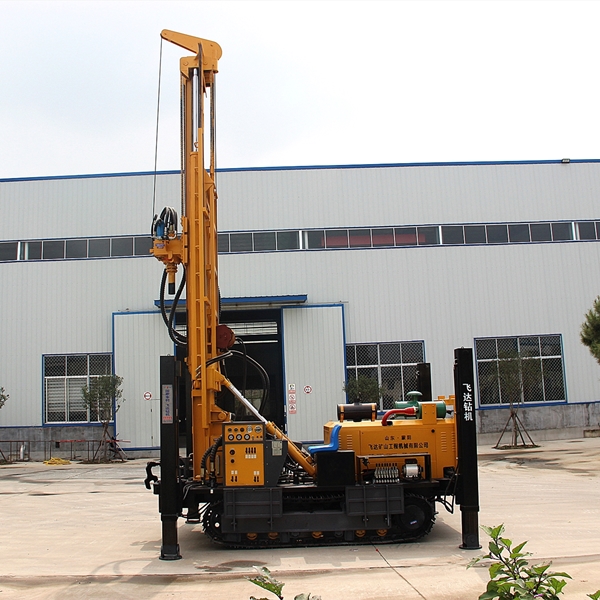

FY500 Crawler Water Well Drilling Rig

INQUIRY Email Contact Email Contact

FY500 Crawler water well drilling rig features:

1. Engine: Well-known brand Guangxi Yuchai turbocharged engine or American Cummins brand turbocharged engine
2. Traveling device: equipped with new traveling motor and reducer, with long service life;
3. Hydraulic oil pump: imported from Italy, parallel gearbox design, oil pump separation, provide
4. Sufficient and reasonable power distribution. The advanced hydraulic system has unique design, simple maintenance and low cost;
5. Power head device; the box body is integrally formed, and the dual motors provide greater power, greater torque, more durability, and lower maintenance costs;
6. Drilling rig chassis; (professional drilling rig chassis), classic and durable, load-bearing, wide chain plate width, less damage to hard roads;
7. Lifting force: The designed composite boom is used, which is small in size, long in stroke, double-cylinder lifting force, and large in lifting tonnage of the rig; the boom configured on the rig body is equipped with a limit device to protect the safety of the oil cylinder. ensure work safety;
8. Each hydraulic oil pipe is covered with a thick protective sleeve, which makes the oil pipe have a longer service life;
9. The independent heat dissipation dual system adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. long engine life
10. Dual system: 1. Air power system with air compressor 2. Mud pump system with mud pump

FY 500 crawler water well drilling rig
The weight（T）	11.5	Drill pipe diameter（mm）	Φ102 Φ108 Φ114
The hole diameter（mm）	140-350	Drill pipe length（m）	1.5m 2.0m 3.0m 6.0m
Drilling depth（m）	500	Rig lifting force（T）	26
One-time advance length（m）	6.6	Rapid rise speed（m/min）	20
Walking speed（km/h）	2.5	Fast feeding speed（m/min）	40
Climbing angles（Max.）	30	Width of loading（m）	2.85
Equipped capacitor（kw）	118	Hoisting force of winch（T）	2
Using air pressure（MPA）	1.7-3.5	Swing torque（N.m）	7500-10000
Air consumption（m³/min）	17-42	Dimension（mm）	6200×2200×2650
Swing speed（rpm）	40-130	Equipped with hammer	Medium and high wind pressure series
The penetration efficiency（m/h）	15-35	High leg stroke（m）	1.7
The engine brand	Yuchai engine
