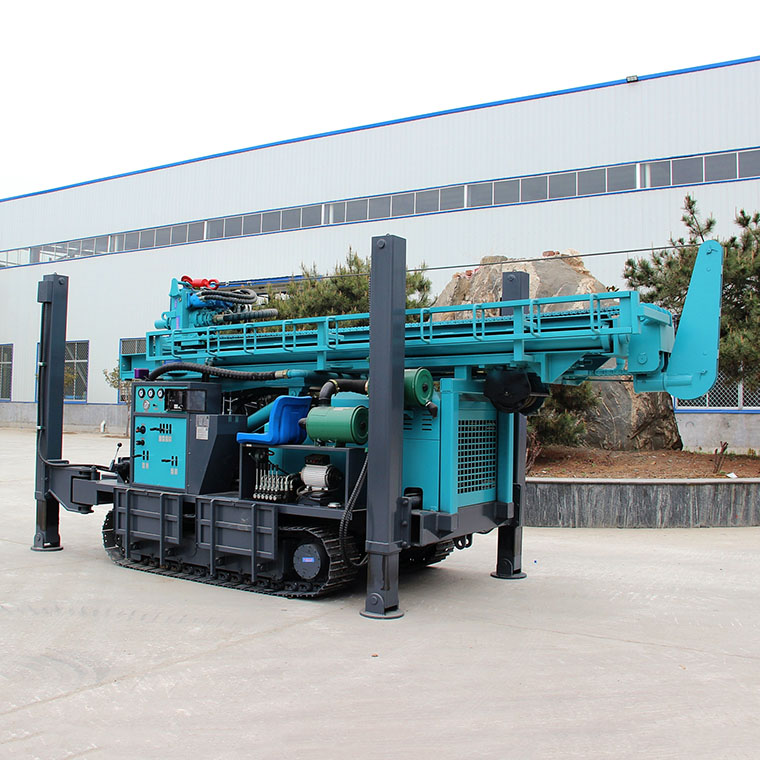

FY450 Crawler Water Well Drilling Rig

INQUIRY Email Contact Email Contact

FY450 Crawler water well drilling rig features

1. It is an efficient and multifunctional groundwater drilling equipment, which can be used for drilling water wells, agricultural irrigation wells, geothermal wells and other wells. It is especially suitable for water intake projects in mountainous areas and rock formations.
2. The machine can drill holes in different strata (rock layer, mud layer, sand layer), and the maximum diameter can reach 450mm.
3. This machine adopts high-torque hydraulic motor power head and brand diesel oil, and the hydraulic control system adopts large-diameter hydraulic cylinder. The brand diesel is protected by a two-stage air filtration system, and the clean air from the air compressor can also be used directly.
4. Unique bump design and centralized control operating system are easy to maintain and operate.
5. This machine adopts excavator crawler chassis, which has high off-road performance and can also be installed on trucks, with stronger mobility.
6. Two gear rotation and feed speed to make it work in soil and rock layers.
7. The independent heat dissipation dual system adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. long engine life
8. Engine brand: Weichai (Deutz brand technology) 103KW Euro III emission standard
9. Dual systems can be installed: 1. Air power system with air compressor 2. Mud pump system with mud pump

FY 450 crawler water well drilling rig
The weight（T）	9.4	Drill pipe diameter（mm）	Φ89 Φ102
The hole diameter（mm）	140-350	Drill pipe length（m）	1.5m 2.0m 3.0m 6.0m
Drilling depth（m）	450	Rig lifting force（T）	25
One-time advance length（m）	6.6	Rapid rise speed（m/min）	20
Walking speed（km/h）	2.5	Fast feeding speed（m/min）	40
Climbing angles（Max.）	30	Width of loading（m）	2.8
Equipped capacitor（kw）	103	Hoisting force of winch（T）	2
Using air pressure（MPA）	1.7-3.5	Swing torque（N.m）	7000-9500
Air consumption（m³/min）	17-36	Dimension（mm）	5950×2100×2600
Swing speed（rpm）	50-135	Equipped with hammer	Medium and high wind pressure series
The penetration efficiency（m/h）	15-35	High leg stroke（m）	1.6
The engine brand	Weichai engine ( National III )
