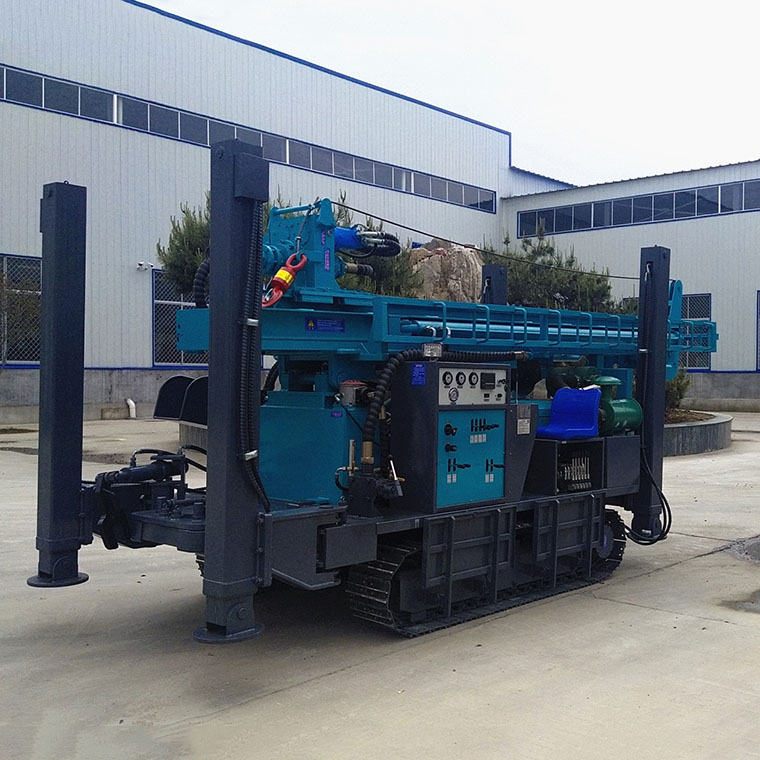

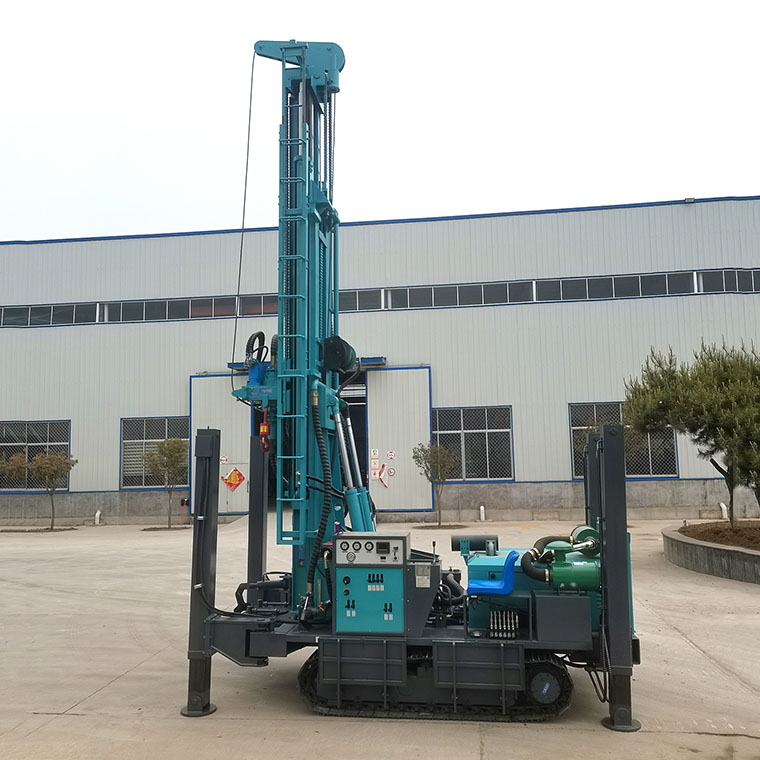

FY380 Crawler Water Well Drilling Rig

INQUIRY Email Contact Email Contact

FY380 Crawler water well drilling rig feature

1. It is an efficient and multifunctional groundwater drilling equipment, which can be used for drilling water wells, agricultural irrigation wells, geothermal wells and other wells. It is especially suitable for water intake projects in mountainous areas and rock formations.
2. The machine can drill holes in different formations (rock layers, mud layers, sand layers), and the maximum aperture can reach 300mm.
3. This machine adopts high-torque hydraulic motor power head and brand diesel oil, and the hydraulic control system adopts large-diameter hydraulic cylinder. The brand diesel is protected by a two-stage air filtration system, and the clean air from the air compressor can also be used directly.
4. Unique bump design and centralized control operating system are easy to maintain and operate.
5. This machine adopts excavator crawler chassis, which has high off-road performance and can also be installed on trucks, with stronger mobility.
6. Two gear rotation and feed speed to make it work in soil and rock layers.
7. Dual systems can be installed: 1. Air power system with air compressor 2. Mud pump system with mud pump

FY 380 crawler water well drilling rig
The weight（T）	9.2	Drill pipe diameter（mm）	Φ89 Φ102
The hole diameter（mm）	140-325	Drill pipe length（m）	1.5m 2.0m 3.0m 6.0m
Drilling depth（m）	380	Rig lifting force（T）	24
One-time advance length（m）	6.6	Rapid rise speed（m/min）	20
Walking speed（km/h）	2.5	Fast feeding speed（m/min）	40
Climbing angles（Max.）	30	Width of loading（m）	2.8
Equipped capacitor（kw）	96	Hoisting force of winch（T）	2
Using air pressure（MPA）	1.7-3.4	Swing torque（N.m）	6500-9000
Air consumption（m³/min）	17-36	Dimension（mm）	5950×2100×2550
Swing speed（rpm）	66-135	Equipped with hammer	Medium and high wind pressure series
The penetration efficiency（m/h）	15-35	High leg stroke（m）	1.6
The engine brand	Yuchai engine ( National III )
