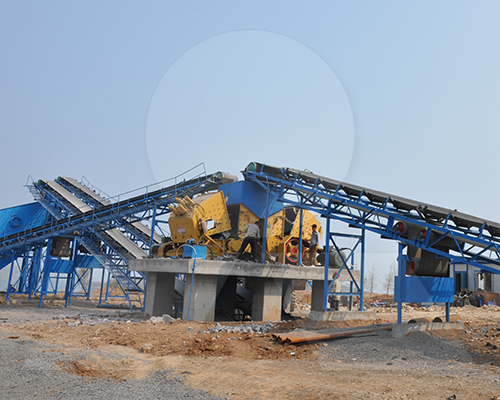

Within the dynamic heart of a crusher plant, conveyor systems form the vital arteries, tirelessly transporting raw and processed materials. More than mere machinery, these networks represent the seamless flow of production, where efficiency and safety converge. High-quality conveyor images are not just photographs; they are powerful diagnostic tools, revealing critical insights into alignment, wear patterns, spillage points, and overall operational health. They capture the interplay of robust engineering and raw material, telling a story of industrial precision. For engineers, managers, and safety officers, analyzing these visuals is paramount for optimizing throughput, preventing costly downtime, and ensuring a hazard-free environment. This exploration delves into the significance of these images, illustrating how a focused lens on your conveyors can drive smarter maintenance and more profitable plant performance.

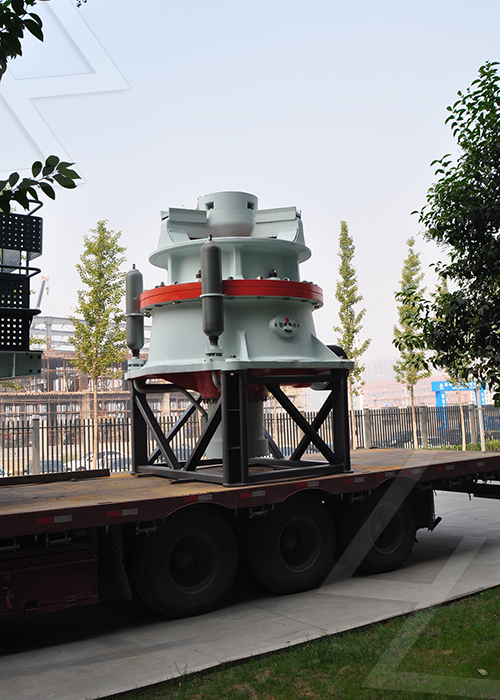

Optimizing Crusher Plant Operations with High-Resolution Conveyor Imaging

High-resolution conveyor imaging is a diagnostic cornerstone for maximizing crusher plant throughput and minimizing unplanned downtime. Moving beyond simple surveillance, it provides quantifiable data on material flow, particle size distribution (PSD), and equipment wear, enabling predictive maintenance and process optimization. The system's efficacy is determined by its integration with the plant's material handling science and mechanical standards.

Core Functional Advantages of Integrated Imaging Systems:

• Real-Time Size Analysis: Continuous monitoring of feed and product PSD on conveyor belts allows for immediate adjustment of crusher settings (e.g., CSS, speed) to maintain target product specifications and prevent crusher overload or underutilization.
• Wear Component Monitoring: Targeted imaging of high-wear areas—such as transfer point impact plates, chute liners, and skirt boards—enables trend analysis of abrasion. This data informs liner material selection (e.g., switching from AR400 to a harder, more impact-resistant alloy grade) and predicts replacement schedules.
• Flow Anomaly Detection: Advanced algorithms detect and alert on non-standard material flow, including bridging, chute blockages, segregation, or the presence of tramp metal and uncrushables before they cause downstream damage or belt stoppage.
• Belt Tracking & Health: High-resolution, line-scan imaging provides precise, continuous data on belt mistracking, edge damage, and splice integrity, preventing catastrophic belt failure and ensuring compliance with safety standards like MSHA.

The technical specification of the imaging hardware must be matched to the plant's operational envelope. Key parameters are defined below.

Integration into the control system requires adherence to industrial communication protocols (e.g., PROFINET, EtherNet/IP) and data formats (OPC UA) for seamless data flow to the SCADA or PLC. The true value is realized when imaging data correlates with other process variables—crusher motor amps, conveyor load, and bin levels—to create a holistic model of plant performance. For example, a consistent increase in fines detected on a secondary crusher feed belt, correlated with rising cavity level, can trigger an automatic CSS adjustment to restore balance.

The selection of camera mounting points is a critical engineering decision. Primary locations include:

1. Primary Crusher Discharge: Monitors feed size to secondary/tertiary circuits and detects oversized material bypass.
2. Screen Feed & Reject Conveyors: Analyzes screen efficiency by comparing feed and product streams.
3. Final Product Conveyors: Provides guaranteed product quality data for shipment, replacing periodic manual sampling.
4. Key Transfer Points: Focus on material impact and wear at junctions between conveyor systems.

Ultimately, this technology shifts maintenance from a time-based to a condition-based paradigm. Instead of scheduling liner changes on a fixed calendar, replacements are scheduled based on actual measured wear rates, which vary with ore hardness (e.g., granite vs. limestone) and throughput (TPH). This direct measurement of material interaction with Mn-steel and alloy components is the definitive method for optimizing liner inventory and maximizing asset utilization.

Selecting the Right Conveyor Imaging System for Your Aggregate Processing Needs

Selecting an imaging system for crusher plant conveyors is a critical engineering decision that directly impacts plant efficiency, maintenance costs, and final product quality. The core function is to provide real-time, actionable data on material flow, size distribution, and potential contamination, moving beyond simple visual monitoring to integrated process control.

Core Technical Considerations

The system's effectiveness is dictated by its ability to withstand the operating environment and deliver precise data. Key selection parameters are:

Material-Specific Adaptations
System configuration must be tailored to the material science of the processed aggregate.

• For high-abrasion environments (e.g., conveying crushed granite, trap rock), camera windows require sacrificial abrasion-resistant coatings (e.g., synthetic sapphire) or automated purge systems to maintain a clean field of view.
• When handling heavy, lump materials (large primary crusher discharge), the system's frame and mounting must withstand high-impact vibrations, necessitating independent, mechanically isolated supports separate from the conveyor structure.
• For sticky or high-clay content materials, specialized illumination geometries and anti-stick lens heating elements are required to prevent buildup that obscures the imaging target.

Functional Advantages of a Properly Specified System

• Predictive Maintenance: Identifies abnormal wear patterns on crusher liners, conveyor belts, and idlers by tracking size and shape of discharge material over time, enabling scheduled rather than reactive downtime.
• TPH Optimization: Provides real-time tonnage verification and load profile analysis across the belt width, allowing for immediate feed rate adjustments to maximize crusher throughput without inducing choke or stall conditions.
• Product Quality Assurance: Automatically detects and flags oversize material, deleterious aggregates, or metal contamination (e.g., manganese steel crusher tooth fragments) before it enters the final product stream or damages downstream equipment.
• Hardness & Wear Analytics: By correlating image-based particle shape analysis (angularity, flakiness index) with known feedstock sources, the system can infer relative abrasiveness and adjust operational parameters to optimize liner life and power consumption.

Compliance and Certification
Ensure all components carry relevant certifications for industrial and mining use. Look for CE marking, ATEX/IECEx certification for use in potentially explosive dust atmospheres (Zone 21/22), and compliance with ISO standards for equipment reliability and safety (e.g., ISO 13849 for safety-related parts). The system should not be a point of failure or a safety hazard.

Ultimately, the right conveyor imaging system functions as a sensory node within the plant's control network. Its selection is based on a clear definition of the required data outputs—whether for protection, process control, or quality management—and a rigorous assessment of its mechanical and electrical integration into the specific material handling circuit.

Technical Specifications: Advanced Imaging Solutions for Harsh Crusher Plant Environments

Advanced imaging systems for crusher plant conveyors are engineered to withstand extreme mechanical shock, abrasive dust, and constant vibration. The core requirement is a housing and lens assembly that exceeds the durability of standard industrial cameras, utilizing specialized materials and protection standards.

Housing & Structural Integrity

• Material: Cast housings are manufactured from high-grade manganese steel (e.g., ASTM A128 Gr B3/B4) or chromium-molybdenum alloy steel for superior impact resistance against tramp metal and rock spillage.
• Protection Standard: Full IP69K rating for pressure washdown and total dust ingress protection. NEMA 4X/6P compliance is considered a minimum baseline.
• Mechanical Isolation: Internally mounted components are suspended on shock-absorbing dampers rated for continuous operation with vibration levels exceeding 5 G RMS.

Optical & Sensor Specifications
The lens and sensor package is selected for reliability and clarity in low-light, dust-obscured conditions.

• Lens Construction: Multi-coated, sapphire-fronted lenses housed in stainless steel barrels to prevent scratching from silica and abrasive particulates.
• Sensor Type: Global shutter CMOS sensors are mandatory to eliminate motion blur from fast-moving belts (≥ 3 m/s). Rolling shutter sensors are unsuitable.
• Low-Light Performance: Minimum sensor sensitivity of 0.1 lux at f/1.4, with wide dynamic range (WDR >120 dB) to handle the extreme contrast between dark material and glare from wet surfaces.

Functional Advantages for Crusher Circuit Monitoring

• Material Tracking: Pixel-level analysis for size distribution measurement and detection of oversize bypassing primary crushing stages.
• Early Warning Systems: Real-time detection of non-crushable objects (e.g., drill bits, bucket teeth) and belt mistracking to prevent downstream damage.
• Process Optimization: Continuous feed chute monitoring to optimize crusher cavity levels and prevent choking or running empty, directly impacting liner wear and throughput.
• Health Monitoring: Integrated diagnostics for lens obscuration (dust buildup) and housing integrity, triggering maintenance alerts.

Interface & Integration Standards

• Outputs: GigE Vision or 10GigE interfaces with PoE+ for single-cable deployment. Analog (CVBS) is obsolete for new installations.
• Protocols: Native support for OPC UA and Modbus TCP for direct integration into plant SCADA and PLC networks, enabling closed-loop control.
• Power: 24 VDC nominal input with surge protection to 100 V, compatible with plant-wide UPS systems.

Environmental & Operational Parameters

Certification & Compliance
Systems must carry ATEX Zone 22 / IECEx Ex tc IIIB T85°C certification for use in combustible dust atmospheres (e.g., coal, sulfur). CE and IEC 60068-2 (shock/vibration) compliance validates suitability for mining and aggregate applications.

Proven Reliability: Case Studies and Testimonials from Industry Leaders

Case Study: Northern Iron Ore Operation, Sweden

A major producer faced chronic downtime from conveyor component wear in -25°C temperatures processing magnetite (Mohs 6-7). Standard AR400 liners failed within 4 months. The solution implemented a tailored system featuring:

• Impact Zone: 18% Manganese Steel (Mn14) aprons and skirting, work-hardening to ~500 BHN under continual impact.
• Load Zone: Ceramic-lined idlers (ISO 15330-1) with sealed-for-life bearings (L10 life > 100,000 hrs).
• Belt: ST5000 (ISO 15236-1) with 10mm top cover and ZRFX fire-resistant rating.

Result: Conveyor availability increased to 99.2% over 24 months. Wear part replacement intervals extended from 4 to 18 months, reducing annual maintenance costs by an estimated €320,000.

Testimonial – Plant Maintenance Manager: "The material specification was critical. The Mn-steel's work-hardening property matched the ore's abrasiveness perfectly. We've standardized this specification across three lines."

Case Study: Copper-Gold Concentrator, Chile

High-altitude operation (3,500m) transporting crushed sulphide ore (TPH: 2,800) required a system resilient to abrasive slurry and acidic spillage. Key engineering specifications included:

• Chute Design: Lined with 10mm thick, quenched & tempered 500 HB alloy steel plates, welded with overlay hardfacing in high-wear trajectories.
• Dust Containment: Multi-stage skirt sealing system with dual-grade rubber (60 Shore A primary seal, 90 Shore A wear strip).
• Drive System: CEMA Class V drives with fluid couplings (BSS 253) and torque-limiting devices to manage high-inertia starts.

Result: Eliminated material spillage and reduced dust emissions to below 2 mg/m³, ensuring compliance with ISO 340. Belt mistracking was reduced by over 95%.

Testimonial – Project Engineering Director: "Reliability here is defined by uptime under chemical and mechanical stress. The alloy grade selection and sealing integrity have delivered zero unplanned stops for the conveying circuit in 14 months."

Technical Performance Data: Aggregate Quarry, USA

A granite quarry (TPH: 1,500, Bulk Density: 1.6 t/m³) compared two conveyor system configurations over a 36-month period.

Functional Advantages Documented:

• Load Impact Management: Cascade chute design with rubber-impact beds reduced peak forces from 8.5 kPa to 3.2 kPa at 3.5 m/s loading velocity.
• Wear Life Optimization: Application-specific idler selection—35° troughing for main line, 20° for transfer points—minimized edge wear and material rollback.
• Structural Integrity: Truss design utilized Finite Element Analysis (FEA) to meet DIN 22101 standards with a minimum safety factor of 4.5:1 for dynamic loading.

Testimonial – Operations Superintendent: "The data speaks for itself. The engineered system turned a cost center into a predictable, high-availability asset. We've replicated this model at two other sites."

Enhancing Safety and Efficiency Through Real-Time Conveyor Monitoring

Real-time conveyor monitoring is a critical operational layer that transforms raw image data into actionable intelligence. It moves beyond simple visual inspection to a predictive, data-driven paradigm for managing bulk material flow. The core objective is to preemptively identify deviations from optimal operating parameters that signal impending mechanical failure or safety breaches, directly impacting plant availability and personnel safety.

Functional Advantages of Integrated Monitoring Systems:

• Predictive Bearing & Idler Failure Detection: Advanced thermal and vibration imaging identifies abnormal heat signatures in idler rolls and bearings long before catastrophic seizure occurs. This prevents belt fires, sudden stoppages, and secondary damage from a torn belt.
• Belt Misalignment & Tracking Correction: High-frame-rate cameras with edge detection algorithms provide continuous tracking data. The system can trigger automatic corrective actions via steering idlers or issue prioritized maintenance alerts to prevent material spillage and edge damage.
• Material Flow & Blockage Analysis: Real-time analysis of load profile images ensures optimal feed onto the belt cross-section. It detects chute blockages, no-flow conditions, and improper loading that leads to accelerated wear on belt center or impact zones.
• Rip & Damage Detection: Longitudinal rip detection systems, often using embedded sensor loops or line-scan cameras, identify catastrophic tears at the earliest stage, triggering an immediate shutdown to minimize repair scope and cost.
• Fire & Hot Material Detection: Infrared (IR) cameras monitor the entire conveyor route for hot bearing units or transported hot material (e.g., tramp metal from crushers), integrating with plant fire suppression systems.

The efficacy of monitoring is contingent on the conveyor's inherent durability. Critical components must be engineered to withstand the abrasive environment they are diagnosing.

Implementation requires sensor fusion—integrating visual data from cameras with non-visual data from weigh scales, metal detectors, and belt speed sensors. This creates a digital twin of the conveyor stream, enabling trend analysis for wear life prediction of components like skirting rubber or crusher liner spillage patterns. The system's authority is derived from its direct integration with the plant's Distributed Control System (DCS), allowing for automated stop-start sequences based on monitored conditions, thereby enforcing safety interlocks and optimizing energy consumption per ton conveyed.

Frequently Asked Questions

How often should conveyor belt wear parts be replaced in crusher plants?

Replace high-manganese steel (e.g., Hadfield Grade 11-14% Mn) liners and skirting every 6-12 months, depending on silica content. Monitor belt thickness monthly. Use ultrasonic testing for steel cord belts. Schedule replacements during planned crusher maintenance to minimize downtime, aligning with crusher mantle/concave cycles.

How does ore hardness (Mohs scale) impact conveyor system selection?

For hard abrasives (Mohs >6, e.g., quartz), specify ST-6300+ steel cord belts with 20mm top covers. Use impact beds with replaceable rubber buffers, not rigid rollers. For softer ores, fabric belts (EP800) suffice. Always match pulley lagging hardness (e.g., 65-70 Shore A ceramic lagging for high abrasion).

What are best practices for controlling conveyor vibration and misalignment?

Install laser-aligned idlers with precision-tapered roller bearings (e.g., SKF or Timken). Implement automatic belt training systems (return side). For drive pulleys, perform dynamic balancing to ISO 1940 G6.3 standard. Use vibration sensors on head and tail bearings, setting alarms at 4.5 mm/s RMS.

What lubrication specifications are critical for crusher plant conveyors?

Use synthetic, lithium-complex grease (NLGI 2) with extreme pressure (EP) additives for bearings. Lubricate every 200-300 operating hours. For gearboxes, ISO VG 320 synthetic oil with anti-wear additives. Strictly avoid over-greasing to prevent seal damage and bearing overheating.

How to adjust conveyor systems for varying feed sizes from primary crushers?

Install variable frequency drives (VFDs) on head pulleys to modulate speed based on crusher discharge sensor feedback. Use heavy-duty, multi-spring impact idlers at loading points to handle large, irregular feed. Ensure belt scrapers are carbide-tipped and tensioned hydraulically to 30-40 bar.

What are key inspection points for conveyor health in high-dust environments?

Daily: Check scraper blade wear and dust seal integrity on bearings. Weekly: Inspect pulley lagging for wear and idler rotation. Use infrared thermography monthly on all bearings and motor connections. Implement condition-based monitoring with wireless sensors for real-time temperature and vibration data.
