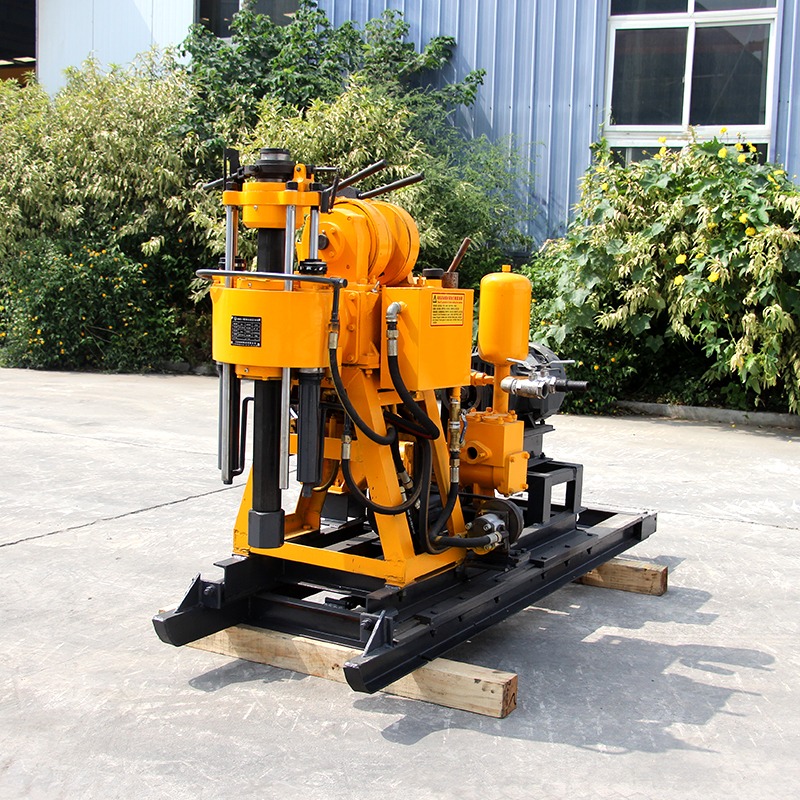

Overview of the New Type of Hydraulic Drilling Rig with a Depth of 100 Meters

A 100-meter new hydraulic drilling rig typically refers to a drilling equipment with certain technological advancement and high efficiency, capable of completing drilling operations at depths of 100 meters. This type of drilling rig usually adopts a hydraulic system and is equipped with an automatic feeding mechanism, which can improve drilling efficiency and reduce labor intensity for workers. In addition, such drilling rigs may also be equipped with a ball chuck holding mechanism, allowing for continuous rod changing, making the operation more convenient and safe.

The main characteristics of the new hydraulic drilling rig

New hydraulic drilling rigs typically have the following main characteristics:

• Wide Application: This type of drilling rig is suitable for various drilling projects, including well drilling, prospecting exploration, geophysical surveys, road and construction site exploration, as well as blasting hole drilling.

• Flexibility: Suitable drill bits can be selected for drilling according to the underlying conditions, capable of handling different geological conditions such as sandy clay and rock formations ranging from levels 2 to 9.

• High Efficiency: Equipped with an oil pressure automatic feeding mechanism, it improves drilling efficiency and reduces labor intensity for workers.

• High Safety: The use of a ball chuck clamping mechanism instead of a chuck allows for continuous reverse rod operation, making it easy to operate and highly safe and reliable.

• Structurally Robust: The winch is equipped with a cage, forming a dual-sided support star wheel structure that can withstand intense impacts; the four sets of bearings on the vertical axis box ensure sufficient rigidity for the rotator to cope with complex geological conditions such as gravel layers and pebble layers.

Technical parameters of the new hydraulic drilling rig

The specific technical parameters may vary depending on different brands and models, but generally, a new hydraulic drilling rig with a depth of 100 meters might have the following technical parameters:

• Maximum Open Hole Diameter: φ75-φ220mm.

• Matching Power: Diesel engine, with a power of about 13.2KW.

• Structural Weight/Dimensions: This depends on the specific drilling rig model, but they are usually quite heavy and require appropriate transportation and installation equipment.

• Single Rope Hoisting Speed: 0.4-2.16 m/s, which determines the drilling speed.


The application scenarios of the new hydraulic drilling rig.

The new hydraulic drilling rig is widely used in multiple fields due to its high efficiency and versatility.

• Agricultural Irrigation: Used for drilling irrigation wells in farmland to improve agricultural production efficiency.

• Residential Water Supply: Used for drilling residential water wells to provide clean drinking water.

• Geothermal Heat Pump Air Conditioning Wells: Used for drilling geothermal heat pump air conditioning wells to meet the energy-saving and emission-reduction needs of heating and cooling.

• Engineering Groundwater Drainage Wells: Used for engineering groundwater drainage, reducing underground water levels to facilitate construction.

In summary, the 100-meter new hydraulic drilling rig is an efficient drilling equipment that can complete drilling operations in various geological conditions and has a wide range of application scenarios.
