In the realm of modern mining and steel production, unlocking the full potential of iron ore is paramount. This is where the magnetite beneficiation plant emerges as a critical technological linchpin. Unlike its hematite counterpart, magnetite's lower natural iron content necessitates sophisticated processing to transform crude ore into a high-grade, premium concentrate. Through a precise sequence of crushing, grinding, and magnetic separation, these advanced facilities efficiently extract valuable iron, significantly reducing silica and other impurities. The result is a superior product that drives efficiency in downstream blast furnace and direct reduction operations, enhancing yield while minimizing environmental footprint. Investing in and optimizing a magnetite beneficiation plant is not merely an operational step; it is a strategic imperative for maximizing resource value and securing a competitive edge in the global market.
Maximizing Magnetite Recovery: How Our Plant Delivers Unmatched Purity and Yield
Our plant design is predicated on a fundamental principle: recovery and purity are not competing objectives but synergistic outcomes of precise engineering. We achieve this through a multi-stage, closed-circuit process that integrates advanced comminution, high-intensity magnetic separation, and intelligent process control, each stage optimized for the liberation and capture of magnetite (Fe₃O₄).
Core Process & Material Integrity

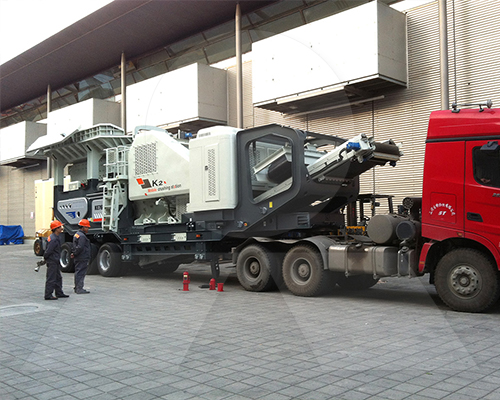

The circuit begins with robust primary crushing, utilizing Mn-steel jaw crushers (ASTM A128 Grade B3/B4) for superior abrasion resistance against hard, abrasive ores. Subsequent grinding in closed-circuit ball or SAG mills, lined with high-chrome cast iron alloys, ensures optimal particle size liberation without over-grinding, which is critical to minimizing slimes generation and iron loss. The heart of recovery is our high-gradient magnetic separation (HGMS) system, featuring:
- High-Intensity, Pulsed Magnetic Matrices: Engineered to generate field strengths exceeding 1.5 Tesla, capturing fine and weakly magnetic particles often lost in conventional separators.
- Corrosion-Resistant Canisters: Constructed from 316L stainless steel for longevity in slurry environments, ensuring consistent performance and minimal maintenance downtime.
- Automated Matrix Flushing: Ensures pure concentrate discharge and prevents magnetic clogging, a common bottleneck that degrades yield.
Technical Specifications & Performance Guarantees
Plant performance is quantified against stringent international standards. Our systems are designed and manufactured to ISO 9001 quality management and CE safety directives.
| Parameter | Specification Range | Note |
|---|---|---|
| Feed Capacity (TPH) | 50 - 1,200+ | Modular design allows for precise scaling. |
| Feed Size (F80) | Up to 350 mm | Handles ROM ore directly from mine. |
| Ore Hardness (Wi) | 10 - 22 kWh/t | Circuit configured for competent, abrasive ores. |
| Final Concentrate Grade | ≥ 68.5% Fe | Consistently exceeds market-grade benchmarks. |
| Magnetite Recovery Rate | 96% - 98.5% | Measured from plant feed to final concentrate. |
| System Availability | > 95% | Achieved via redundant critical paths and premium components. |
Functional Advantages for Unmatched Output

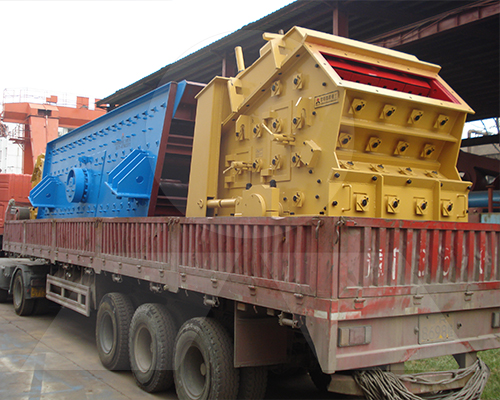

- Adaptive Crushing & Grinding: Variable-speed drives and hydraulic adjustment on crushers allow real-time adaptation to changing ore hardness and feed size, maintaining throughput.
- Multi-Stage Magnetic Cleaning: Primary rougher, secondary cleaner, and tertiary scavenger separation stages ensure incremental upgrading, maximizing recovery from middlings and tailings streams.
- Intelligent Process Control (IPC): A centralized PLC/SCADA system with in-line slurry density and magnetic susceptibility analyzers provides closed-loop control, automatically adjusting parameters to maintain peak efficiency.
- Water & Tailings Management: High-efficiency thickeners and filter presses ensure >90% process water recovery and produce a dry, stackable tailings cake, reducing environmental footprint and water sourcing costs.
- Lifecycle Engineering: All wear components, from pump volutes to classifier cyclones, are specified from proprietary alloys (e.g., Ni-Hard IV, Ceramic Liners) for extended service life, directly reducing operating cost per ton.
Engineered for Extreme Conditions: The Robust Design That Ensures Continuous Operation
The core processing modules of a magnetite beneficiation plant are subject to continuous, severe abrasion from coarse, hard ore and high-stress mechanical loads. Our engineered designs transcend standard industrial equipment, utilizing a philosophy of strategic over-engineering and material selection to guarantee operational integrity and minimize unscheduled downtime in the most punishing mining environments.
Material Science & Construction Integrity
Critical wear components are fabricated from specialized abrasion-resistant materials, selected based on impact energy and abrasion indices of the feed ore.
- Primary Crushing & HPGR Zones: Manganese steel (Mn14, Mn18) liners for crushers and high-pressure grinding rolls (HPGR) cheek plates utilize work-hardening properties, where surface hardness increases under impact, extending service life.
- High-Wear Slurry Paths: Mill liners, pump volutes, hydrocyclone apexes, and launder systems are constructed from high-chrome white iron (HCWI, 27% Cr), Ni-hard alloys, or proprietary rubber compounds with ceramic tile inlays for specific abrasion-corrosion conditions.
- Structural Fabrication: Primary plant chassis and high-load supports are built from normalized steel plate with full-penetration welds, subjected to non-destructive testing (NDT) to eliminate defect-induced fatigue failure.
Mining-Specific Design Parameters
Each system is rated for the specific challenges of magnetite ore, characterized by its high density, magnetic susceptibility, and abrasive silica content.
- TPH Capacity & Surge Tolerance: Designed for nominal throughput with a minimum 15-20% surge capacity buffer. Conveyor systems, bin storage, and pump sumps are sized to handle peak feed conditions without bottlenecking.
- Ore Hardness & Abrasion Adaptability: Crushing circuit geometry and comminution equipment power ratings are calculated based on Bond Work Index (BWi) and Abrasion Index (Ai) testwork. Adjustable crushing gaps and variable-speed drives allow for real-time adaptation to ore body variability.
- Slurry Handling Robustness: Heavy-duty slurry pumps feature oversized shafts, extra-thick wear parts, and redundant gland water systems. Pipeline design prioritizes radius over sharp bends and incorporates wear-back loops for extended service life.
Standards, Sealing & Protection
Compliance with international mechanical and safety standards is the baseline, not the achievement.
- Certification & Design Codes: Major rotating equipment and pressure vessels conform to ISO 9001, ASME, CE, and relevant mining safety directives. Gearboxes and bearings are selected with minimum AGMA service factors of 1.5 for crushers and grinding mills.
- Environmental Sealing: IP66/NEMA 4X sealing on all motors, drives, and electrical enclosures protects against dust and high-pressure washdown. Labyrinth seals and air purgers on critical crusher and mill bearings prevent ingress of abrasive fines.
- Vibration & Condition Monitoring: Integrated sensor platforms (vibration, temperature, pressure) on all major rotating assets provide continuous health data, enabling predictive maintenance and preventing catastrophic failures.
Key Component Specifications for Extreme-Duty Service
| System Module | Critical Wear Component | Standard Material Specification | Design Feature for Continuity |
|---|---|---|---|
| Primary Gyratory Crusher | Concave & Mantle Liners | Austenitic Manganese Steel (Mn18%) | Modular, segmented liner design for partial replacement during scheduled maintenance. |
| Ball Mill / SAG Mill | Liners & Grinding Media | High-Cr Steel Casting / Forged Alloy Steel | Optimized lifter profile for efficient ore trajectory and reduced liner wear. |
| Slurry Pumps (Mill Discharge) | Volute, Impeller, Liner | ASTM A532 Class III Type A (27% Chrome) | Removable wear plates and cartridge-style mechanical seal for rapid servicing. |
| Magnetic Separators (Wet Drum) | Tank & Drum Shell | 304/316 Stainless Steel with Ceramic Wear Tiles | Dual-separation tank design allows one side to be isolated for maintenance while the other remains operational. |
| Tailings & Concentrate Piping | High-Wear Elbows & Tees | Alumina Ceramic-lined (96% Al₂O₃) Steel Pipe | Modular, bolted flange design with inspection ports for wear monitoring and section replacement. |
This multi-layered approach—from atomic-scale material structure to plant-wide system design—ensures the beneficiation plant delivers sustained availability, protecting your investment and securing concentrate production targets against the inherent aggressiveness of magnetite processing.
Precision Separation Technology: Achieving Optimal Grade with Minimal Energy Consumption
Precision separation in magnetite beneficiation is the critical control point where final product grade and operational efficiency are determined. Modern systems transcend simple magnetic attraction, integrating advanced material science, intelligent process control, and robust mechanical design to maximize Fe recovery while minimizing specific energy consumption (kWh/tonne). The core objective is to achieve a consistently high-grade concentrate (often +68% Fe) from variable feed, with minimal yield loss to tailings and maximum energy utilization.
The technological advancement is embodied in high-gradient magnetic separators (HGMS) and high-efficiency wet drum separators. Their performance is not merely a function of magnetic field strength but of the entire system's design integrity.
Core Functional Advantages of Modern Precision Separators:
- Advanced Magnetic Circuit Design: Utilization of high-purity, rare-earth magnetic elements (e.g., NdFeB) arranged in optimized circuits creates intense, focused magnetic fields. This allows for the capture of finer or more weakly magnetic particles, directly increasing recovery rates without proportional increases in energy draw.
- Material & Wear Engineering: Critical wear surfaces, such as drum shells, tank liners, and slurry conduits, are fabricated from abrasion-resistant alloys (e.g., ASTM A514 Mn-steel, high-chrome white iron). This ensures sustained performance and dimensional stability under continuous abrasive slurry flow, maintaining separation efficiency over extended campaigns and reducing downtime for component replacement.
- Intelligent Process Control Integration: Separators are equipped with PLC-controlled systems that dynamically adjust parameters such as drum speed, feed rate, and magnetic field intensity (where variable) in response to real-time sensor data (e.g., slurry density, magnetic susceptibility). This closed-loop optimization ensures peak efficiency across varying ore characteristics.
- Hydraulic & Flow Dynamics Optimization: Tank and weir designs are engineered using computational fluid dynamics (CFD) to ensure uniform feed distribution and laminar slurry flow across the entire magnetic field. This prevents particle bypass and turbulence-induced losses, guaranteeing every particle is subjected to the designed separation force.
- Modular & Scalable Design: Built to international standards (ISO 9001, CE), separators are designed in modular capacities, allowing for precise plant scaling. Systems are engineered for specific throughputs (e.g., 50 to 500+ TPH per unit) and can be configured for parallel or series operation to match ore hardness and liberation characteristics.
Technical Parameters for System Specification:
Selection hinges on a precise match between machine capability and ore body properties. Key specification data typically includes:
| Parameter | Unit | Typical Range / Consideration | Impact on Performance |
|---|---|---|---|
| Feed Capacity | TPH | 50 - 600+ (per unit) | Determines number of units required for plant throughput. |
| Magnetic Field Intensity | Gauss (Surface) | 1,000 - 10,000+ | Finer/less magnetic particles require higher gradients. |
| Drum Diameter & Width | mm | e.g., 1200mm x 3000mm | Dictates surface area for capture and residence time. |
| Power Consumption | kW (per unit) | 15 - 150 | Directly linked to OPEX; efficient designs lower kWh/tonne. |
| Feed Size (P80) | μm | <100 to 500 | Must align with liberation size; HGMS for ultrafine fractions. |
| Slurry Solids Density | % w/w | 20 - 40% | Optimized for particle mobility and magnetic capture efficiency. |
| Concentrate Grade | % Fe | 68 - 72% | Achievable grade is a function of feed liberation and separator precision. |
The ultimate measure of precision separation is not just a high-grade concentrate sample, but the consistent, energy-efficient production of that concentrate at scale. This is achieved through a design philosophy that prioritizes operational stability, adaptive control, and engineering longevity, ensuring the separation circuit acts as a reliable, high-performance asset rather than a variable cost center.
Custom-Configured Solutions: Tailored to Your Ore Characteristics and Production Goals
A one-size-fits-all approach is fundamentally incompatible with the economic recovery of magnetite. Every deposit presents a unique mineralogical fingerprint, defined by its liberation size, grain morphology, gangue mineralogy, and inherent magnetic susceptibility. Our engineering philosophy is rooted in configuring the entire beneficiation circuit—from primary crushing to final concentrate filtration—as an integrated system calibrated to your specific ore body and strategic production targets.
The core of a custom-configured plant is the process flow sheet, a dynamic document derived from comprehensive metallurgical test work. We conduct locked-cycle tests on representative samples to determine precise grinding requirements, magnetic separation stages, and dewatering parameters. This data directly informs critical equipment selection and sizing.
Functional Advantages of a Tailored Configuration:
- Optimized Liberation & Grinding: Circuit design targets the specific grind size (P80) required for optimal magnetite liberation, minimizing over-grinding and its associated energy costs. Mill selection (SAG, Ball, Vertimill) and liner composition (e.g., Ni-hard, high-chrome steel) are matched to ore hardness (Bond Work Index) and abrasiveness.
- Precision Magnetic Recovery: A multi-stage magnetic separation circuit (typically low-intensity drum separators for rougher/scavenger duty and high-gradient/vertical ring separators for cleaning) is engineered for your ore's magnetic profile. This maximizes Fe recovery while rejecting locked middlings and paramagnetic gangue.
- Material Integrity & Longevity: Wear surfaces in high-abrasion zones (e.g., slurry pumps, hydrocyclone liners, launder systems) are specified in advanced materials. This includes ASTM A532 Class III Type A Ni-hard IV for maximum impact resistance and specialized rubber compounds or ceramic linings for specific abrasion-corrosion environments.
- Scalable & Modular Design: Plant capacity (TPH) and layout are designed with future expansion in mind. Modular skid-mounted sections for pre-assembled electrical controls, magnetic separation banks, and thickening circuits ensure faster commissioning and simplified capacity upgrades.
- Integrated Process Control: The configuration incorporates a scalable PLC/SCADA system with dedicated control loops for mill feed, density, and magnetic separator settings, ensuring consistent concentrate grade (Fe%) and tailings management.
Key equipment is selected and manufactured to international standards (ISO 9001, CE/PED) with certified material traceability. Critical performance parameters are established during the Front-End Engineering Design (FEED) phase.
| Design Parameter | Consideration & Customization Driver |
|---|---|
| Head Grade & Target Concentrate | Defines the mass pull and overall recovery efficiency required. Dictates the number and intensity of cleaning stages. |
| Ore Hardness (Bond Work Index) | Primary driver for crushing circuit design and grinding mill power, type, and media selection. |
| Liberation Size (P80) | Determines the final grind requirement and the sizing of the grinding classification loop (hydrocyclone clusters). |
| Gangue Mineralogy (SiO₂, Al₂O₃, P, S) | Influences the choice and sequence of processing steps; may necessitate additional de-sliming or reverse flotation circuits post-magnetic separation to meet concentrate grade specs. |
| Magnetite Grain Morphology | Affects liberation characteristics and slurry rheology, impacting thickener and filter selection for final dewatering. |
| Plant Capacity (TPH) & Site Constraints | Drives overall equipment sizing, plant footprint, and material handling design (conveyor widths, bin capacities). |
Ultimately, a tailored solution is an engineered asset designed for a defined duty. It delivers predictable operational performance, minimizes specific energy consumption (kWh/t), and ensures the structural and mechanical integrity of the plant over its lifecycle, securing your return on investment through optimized metallurgical efficiency.
Advanced Control Systems: Real-Time Monitoring for Consistent Performance and Efficiency
Advanced control systems are the central nervous system of a modern magnetite beneficiation plant, transforming raw operational data into precise, actionable commands to maintain metallurgical efficiency and protect capital-intensive equipment. These systems move beyond basic PLC logic to incorporate model-based predictive control and real-time analytics, ensuring consistent concentrate grade and recovery despite variability in feed ore characteristics.
The core objective is the stabilization and optimization of the magnetic separation circuit, particularly the critical recovery and cleaning stages. Real-time monitoring of variables such as feed density, slurry magnetic susceptibility, and drum speed allows for instantaneous adjustment of separator settings. This is crucial for maintaining a tight magnetic flux density window, typically between 0.1 and 0.3 Tesla for LIMS and 0.5 to 0.8 Tesla for WHIMS, to maximize recovery of fine magnetite while minimizing entrainment of gangue minerals.
Key Functional Advantages of an Integrated Control System:
- Adaptive Grinding Control: Utilizes particle size analyzers (PSD) and mill amp draws to dynamically adjust SAG/ball mill feed rates and cyclone feed density. This ensures optimal liberation of magnetite from host rock (often hard, abrasive taconite) while preventing over-grinding, which consumes excessive energy and creates problematic slimes.
- Predictive Maintenance Integration: Vibration, temperature, and lubricant condition data from critical assets—such as high-pressure grinding rolls (HPGR), slurry pumps with NiHard or CD4MCu alloy impellers, and magnetic separator drums—are fed into the system. This allows for trend analysis and failure prediction, scheduling downtime before catastrophic wear of Mn-steel liners or ceramic matrix plates in WHIMS occurs.
- Grade-Recovery Optimization: On-stream X-ray fluorescence (XRF) and magnetic susceptibility analyzers provide continuous assay of process streams. The control system uses this data to automatically adjust splitter gates, reagent dosages (in flotation circuits), and rougher/scavenger cleaner tails recirculation to hold the final concentrate grade within a ±0.5% Fe specification.
- Throughput Maximization: By stabilizing the entire circuit, the system identifies and eliminates bottlenecks, allowing the plant to operate consistently at its designed TPH capacity, even with fluctuating ore hardness (as measured by Bond Work Index).
Critical Monitoring Parameters & Control Interfaces:
| Process Stage | Key Monitored Parameters | Primary Control Actuators | Linked Performance KPI |
|---|---|---|---|
| Communition | Feed tonnage, PSD, mill power, bearing temperature, cyclone pressure | Ore feed rate, mill speed, water addition, cyclone feed pump speed | Specific energy consumption (kWh/t), %-200 mesh in product |
| Magnetic Separation | Feed density & susceptibility, drum speed, magnetic flux density, coolant temp | Separator rotor speed, feed valve position, splitter gate position, magnet current | Magnetite recovery (%), concentrate grade (% Fe), tailings loss |
| Material Handling | Chute wear (acoustic monitors), belt load & alignment, slurry density | Feed diverters, conveyor speeds, pump VFDs | System availability, liner wear rate (mm/kt), spillage |
Implementation is governed by international standards for functional safety (IEC 61511/ISA 84) and system integrity, ensuring reliability in harsh mining environments. A well-engineered control system, with its human-machine interface (HMI) built on ISA-95 principles, provides operators with intuitive visualization of the process flow, alarm hierarchies, and historical trend data for forensic analysis. This engineering-focused approach delivers a plant that is not only efficient but also inherently stable and predictable, safeguarding the return on investment by ensuring consistent, specification-grade magnetite concentrate output.
Proven Reliability: Backed by Industry Expertise and Comprehensive Support Services
Our engineered systems are built to endure the specific abrasion, high stress, and cyclical loading inherent to processing hard, abrasive magnetite ores. Reliability is not an afterthought but a material and design imperative, ensuring sustained throughput and protecting your operational ROI.
Engineering for Extreme Duty:
- Wear-Resistant Material Selection: Critical wear components in crushing and grinding circuits are fabricated from high-chromium white iron or manganese steel alloys, selected based on specific impact and abrasion indices of your ore.
- Structural Integrity: Primary plant structures and high-stress frames are constructed from heavy-duty, high-yield-strength steel plate, with finite element analysis (FEA) used to validate designs against dynamic loads.
- Precision Machining & Assembly: Key interfaces, such as bearing housings and shaft journals, are machined to ISO tolerance standards (e.g., ISO 286) to ensure perfect alignment, minimize vibration, and extend mechanical service life.
Operational Assurance Through Design:
- Process Resilience: Plants are configured with inherent circuit flexibility to adapt to variations in feed grade (Fe%) and grindability (Bond Work Index) without catastrophic loss of recovery or throughput.
- System Redundancy: Critical material handling paths, such as slurry pumping systems, are designed with installed spare capacity or parallel modules to maintain operations during planned maintenance.
- Intelligent Control Integration: PLC-based control systems are pre-programmed with fail-safe logic and interlocking to protect equipment from maloperation, with standard interfaces for full SCADA integration.
Comprehensive Lifecycle Support Services:
| Service Phase | Technical Scope & Deliverables | Direct Operational Benefit |
|---|---|---|
| Commissioning & Training | Dry, wet, and hot commissioning protocols; OEM-level training on maintenance procedures, lubrication schedules, and wear part inspection/replacement. | Minimizes ramp-up time to nameplate capacity (TPH); empowers on-site teams for first-line maintenance. |
| Preventive Maintenance Planning | Development of a customized maintenance schedule based on equipment duty cycles and wear rate modeling specific to your ore's abrasiveness. | Maximizes mean time between failures (MTBF); allows for predictable downtime planning and spare parts inventory management. |
| Remote Monitoring & Diagnostics | Secure VPN access for our engineers to monitor key performance indicators (KPIs) like pump amperage, crusher power draw, and dense medium cyclone feed pressure. | Enables proactive intervention and data-driven troubleshooting, reducing unplanned stoppages. |
| Technical Documentation | Provision of full as-built drawings, loop diagrams, piping & instrumentation diagrams (P&IDs), and material take-offs (MTOs) for all systems. | Ensures accurate long-term maintenance and facilitates future plant modifications or expansions. |
| Wear Parts & Inventory Management | Supply of genuine, metallurgically certified wear parts with guaranteed fit and performance. Optional managed inventory programs available. | Maintains designed plant efficiency and recovery rates; eliminates performance loss from inferior replacement components. |
Our commitment extends beyond equipment supply to a partnership grounded in process knowledge. We provide ongoing metallurgical support to optimize separator settings and reagent dosages in response to ore body variability, safeguarding your concentrate grade and iron recovery targets throughout the mine life.
Frequently Asked Questions
What is the optimal replacement cycle for wear parts in a magnetite beneficiation plant?
Replace high-wear components like crusher liners and pump impellers every 1,200-1,800 operational hours. Use ultra-high-manganese steel (e.g., ASTM A128 Grade E) for liners, which work-hardens. Monitor thickness with ultrasonic gauges; schedule replacements based on abrasive wear rates, not just time, to prevent catastrophic failure and unplanned downtime.
How should the plant adapt to magnetite ore with varying hardness (Mohs 5.5-6.5)?
Adjust primary crushing parameters: for harder ore (>6 Mohs), reduce crusher gap and increase hydraulic pressure. Use cone crushers with automated setting regulation (ASRi). In grinding, modify ball mill charge composition—increase proportion of larger diameter forged steel balls to maintain grind size and throughput.
What are the best practices for controlling vibration in high-capacity ball mills?
Ensure precise mechanical alignment during installation. Use laser alignment tools. Employ condition monitoring with wireless vibration sensors (e.g., SKF @ptitude) on main bearings and pinions. Maintain proper gear mesh backlash (0.25-0.30 mm). Imbalance is a primary cause; dynamically balance the mill shell and charge during major overhauls.
What specialized lubrication is required for heavy-duty slurry pumps in magnetite processing?
Use extreme pressure (EP) lithium complex or synthetic polyurea greases with anti-wear additives (e.g., Timken OK load >60 lbs). For pump bearings, select grease with excellent water resistance (NLGI 2). Automate lubrication via centralized systems with precise intervals (every 8 hours) to combat constant water and fine abrasive ingress.
How do you optimize magnetic separator efficiency for fine magnetite recovery?
For wet drum separators, maintain a precise slurry density of 30-35% solids by weight. Adjust magnetic field intensity (8,000-12,000 gauss) based on feed grade and particle size. Routinely clean magnet assemblies to remove ferrous tramp material. Inspect and replace wear shoes before they erode to within 2mm of the magnet core.
What is the critical maintenance for hydrocyclones classifying magnetite?
Inspect ceramic or polyurethane liners weekly for erosion, especially the apex and vortex finder. Replace when wear exceeds 10% of original thickness to prevent size classification drift. Maintain consistent feed pressure (70-90 kPa) via variable frequency drives on feed pumps. Check for air leaks in the underflow, which severely impact efficiency.
